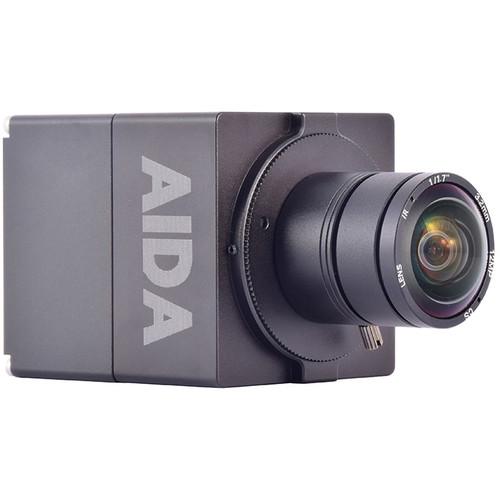

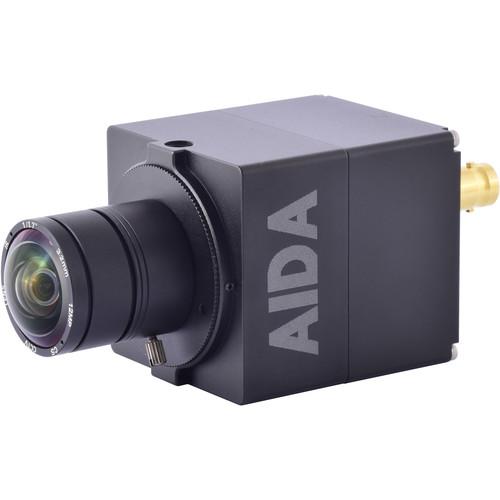

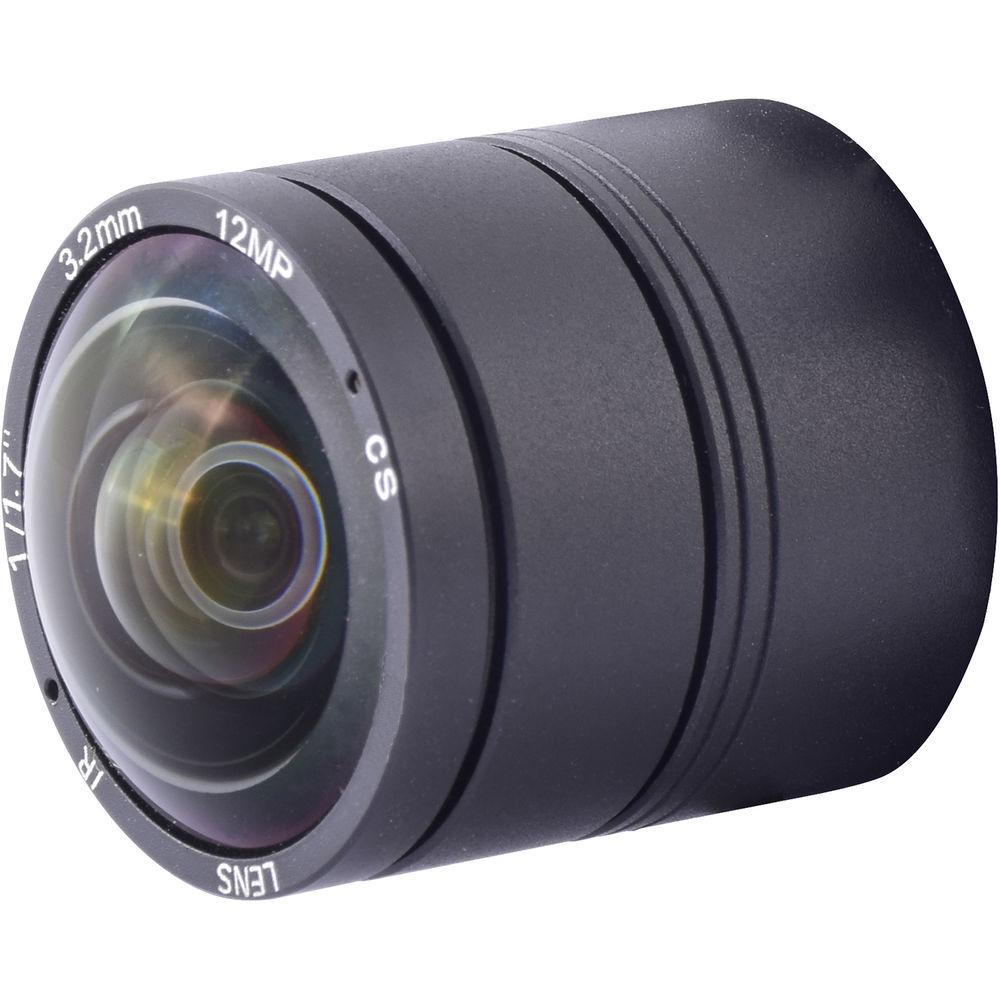

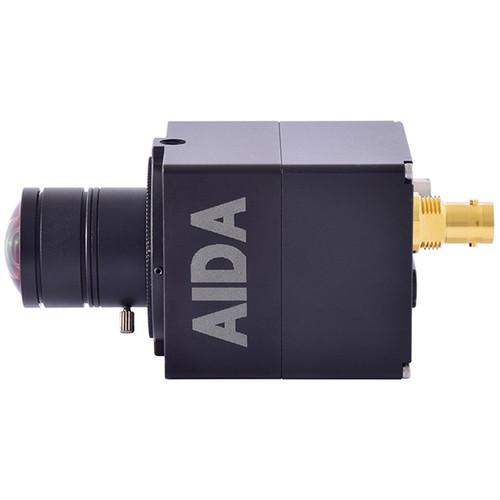

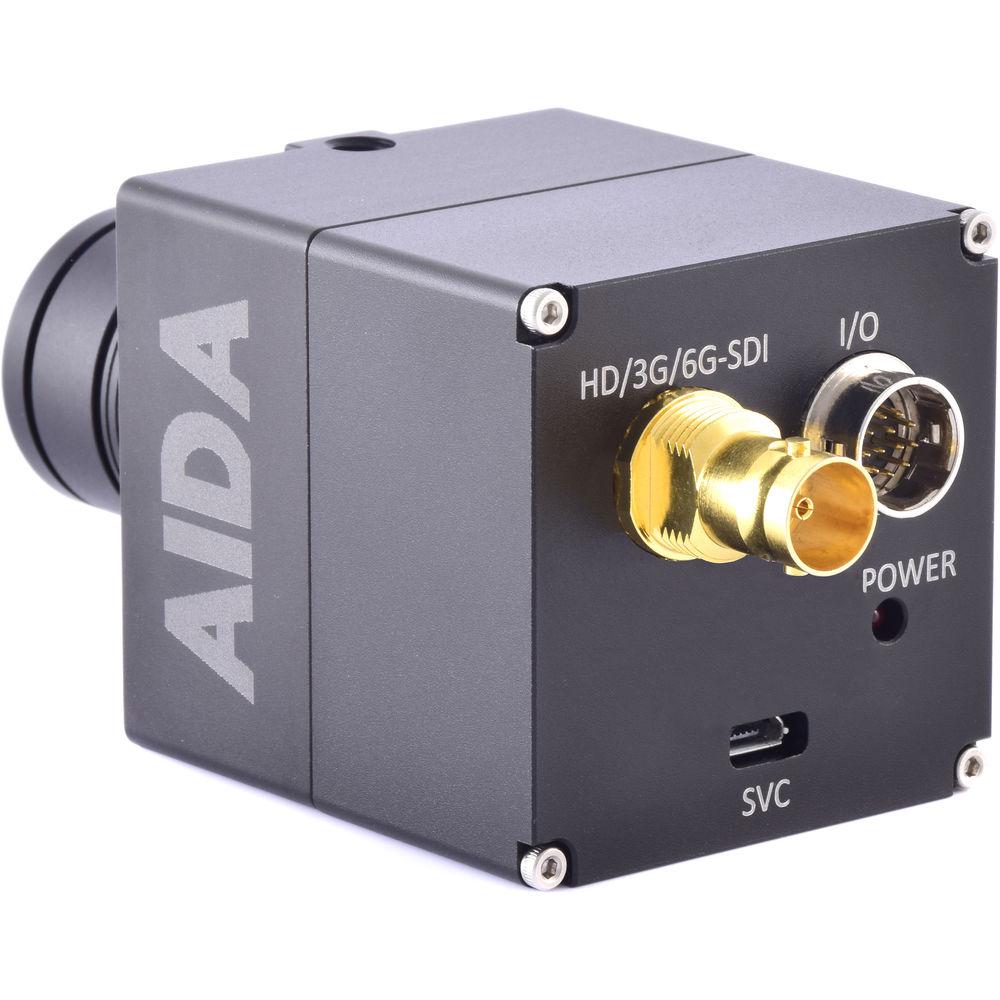

Product description The UHD6G-200 POV Professional EFP Camera from AIDA Imaging has a 1/2.5" progressive-scan CMOS image sensor and supports a resolution of up to 4096 x 2160 at 20/24p fps. It features a preinstalled 3.2mm 12MP 4K lens and a 6G-SDI output and is designed for industrial and broadcast applications. This camera features a user-interchangeable C to CS mount lens as well as digital imaging processor that provides vivid and detailed images by utilizing dynamic range, white balance, and noise reduction. The on-screen display can be remotely controlled by a PTZ camera controller or by CCS-USB and software. A breakout cable with on-screen display control, audio input and RS-485 for remote communication as well as a 12 VDC power supply and socket adapter are included. - Digital image stabilization
- Compact and rugged form factor that is versatile for broadcasting, pro audio/video, or security
- Superb motion-compensated temporal noise-reduction filter for motion video without blurring
- Conforms with SMPTE 292M, 424M, and 2081-10 standards

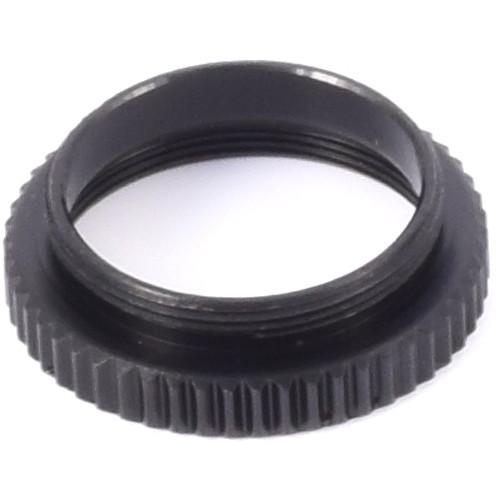

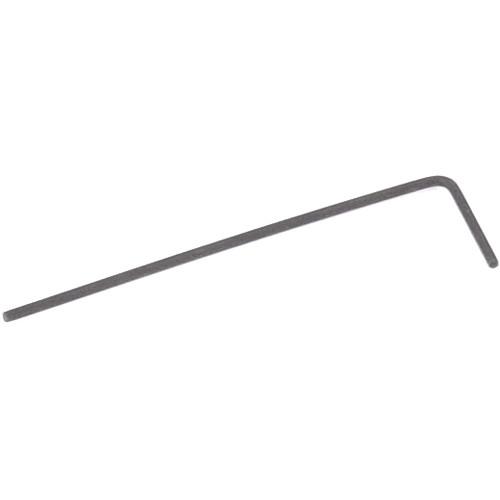

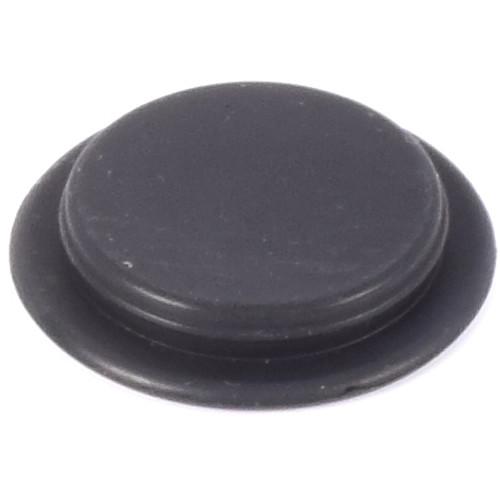

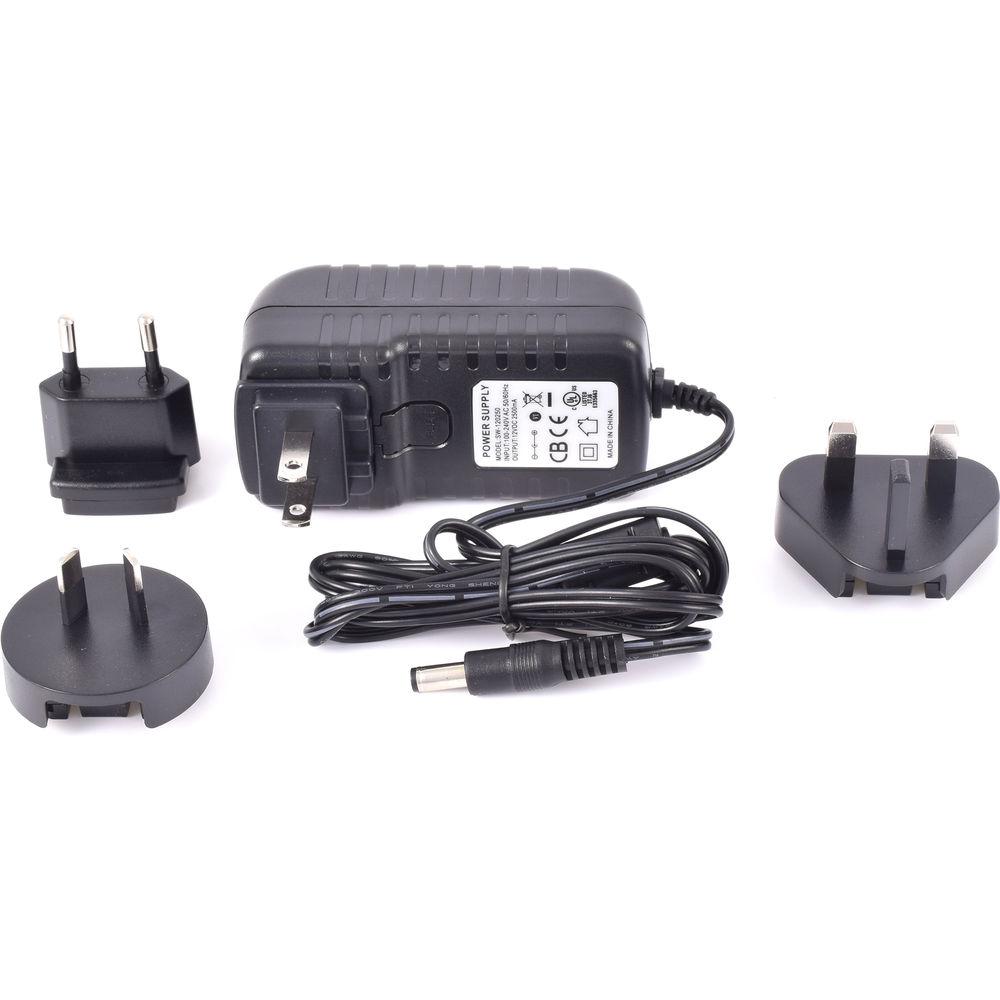

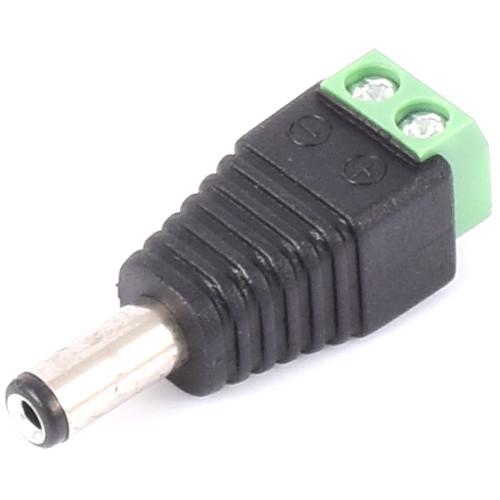

UPC: 720260897577 In the Box AIDA Imaging UHD6G-200 4K POV Professional EFP Camera Input/Output Breakout Cable 12 VDC Power Supply & Socket Adapter Sensor Cap C-Mount Lens Adapter Hex Wrench Terminal Power Connector Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AIDA Imaging UHD6G-200 4K POV Professional EFP Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAIDA Imaging UHD6G-200 Specs | | | Image Sensor | 1/2.5" progressive CMOS | | Sensor Size | 8.365 X 6.615 mm (16:9) | | Effective Pixels | Horizontal: 3840
Vertical: 2160 | | Pixel Size | Horizontal: 1.62 μm
Vertical: 1.62 μm | | Resolution | 4096 X 2160, 3840 x 2160, 1920 x 1080, 1280 x 720 | | Resolution / Frame Rate | 4K (4096 X 2160) at 20/24p
2160p at 30/29.97/25/24
1080p at 60/59.94/50/30/29.97/25/24
1080i at 60/59.94/50
720p at 60/59.94/50/30/25 | | Output | 1 x HD/3G/6G-SDI BNC port | | Color Space | 4:2:2 (YCbCr) 10-bit | | | | White Balance | AWB / AE / AF | | Exposure | Full auto, bright, shutter priority, iris priority, manual | | | | Input | 3.5 mm analog audio jack over input/output cable | | Sample Rate | 16/24/32 bits | | | | SMPTE | SMPTE 292M, SMPTE 424M, SMPTE 2081-10 | | | | Camera Control | RS-485
OSD Button | | Power | 12 VDC (9 to 15 VDC) | | Operation Temperature | 15 to 120°F / -9.4 to 48.9°C | | Dimensions | 2.20 x 2.20 x 2.83" / 56 x 56 x 72 mm | | Weight | 0.37 lb / 170 g | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 11.1 x 6.9 x 2.7" |
