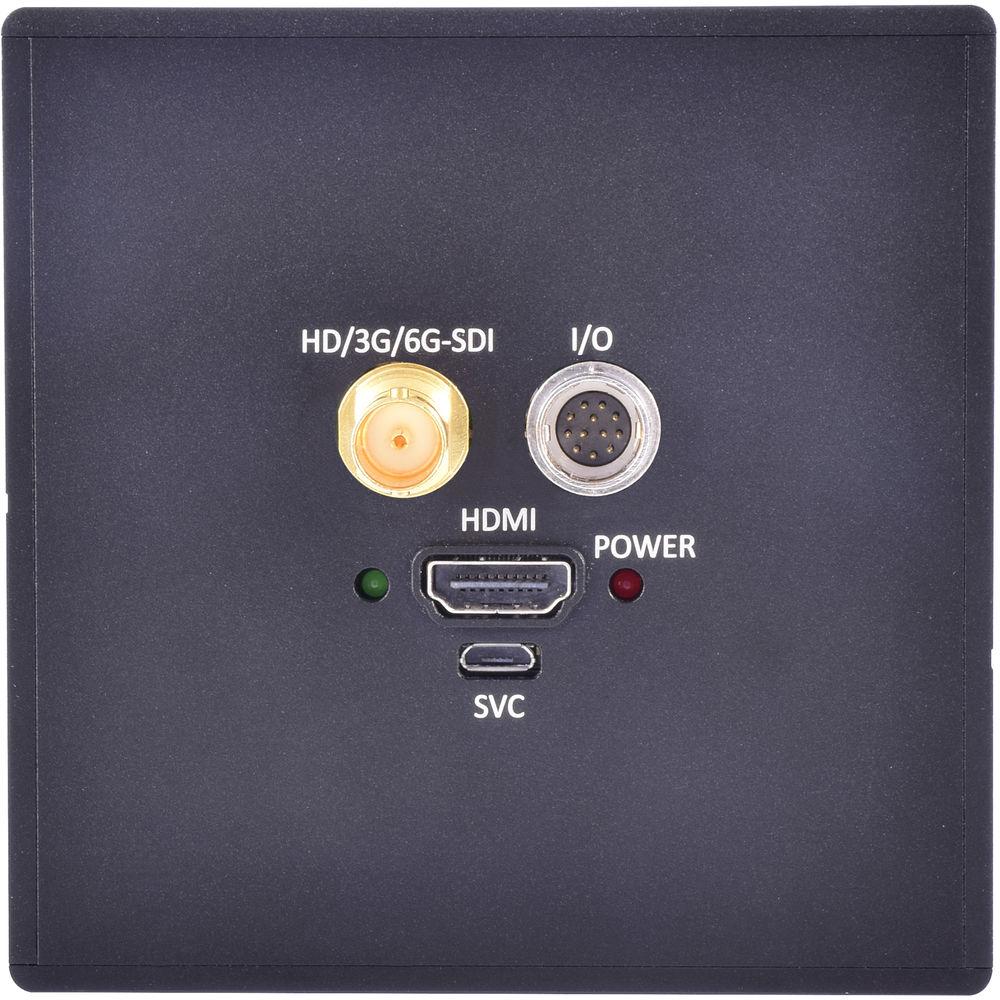

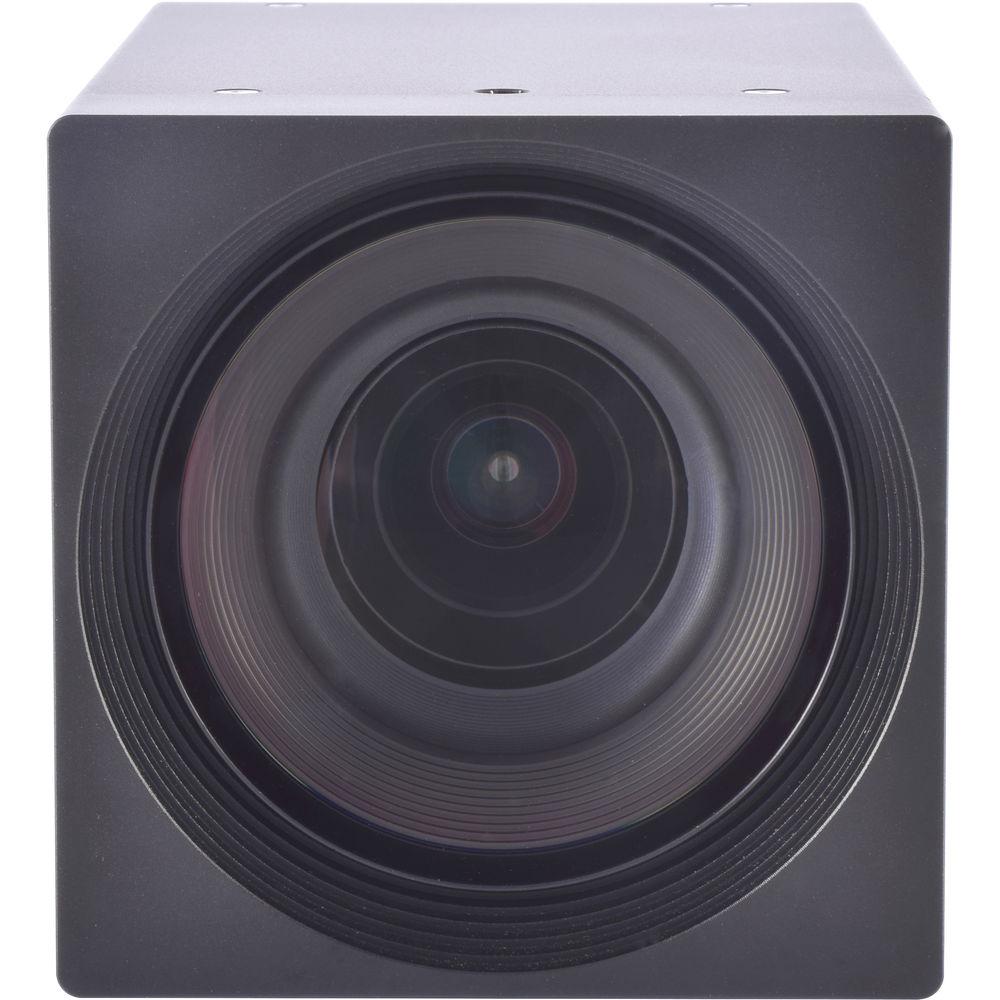

Product description The UHD6G-X12L 4K Professional EFP Camera from AIDA Imaging has a 1/1.7" progressive-scan CMOS image sensor and supports a resolution of up to 4096 x 2160 at 20/24p fps. It features a 4.2 to 50.04mm zoom lens with an optical zoom of 12x UHD. This camera features sensitivity and low noise under low-light conditions. It is powered by a back-illuminated pixel technology and realizes 4K high-picture quality in the visible light with wide dynamic range. The UHD6G-X12L is robust in its physical features with expanded control sets via VISCA protocol, audio, and dual video (6G-SDI and HDMI 1.4) simultaneous output interfaces. It is designed for versatility, and durability for a smooth integration into any broadcast, professional, or corporate AV environment. This camera includes an OSD control breakout cable and a 12 VDC power supply and socket adapter. - Digital image stabilization
- Superb motion-compensated temporal noise-reduction filter for motion video without blurring
- Conforming with SMPTE 292M, 424M, and 2081-10

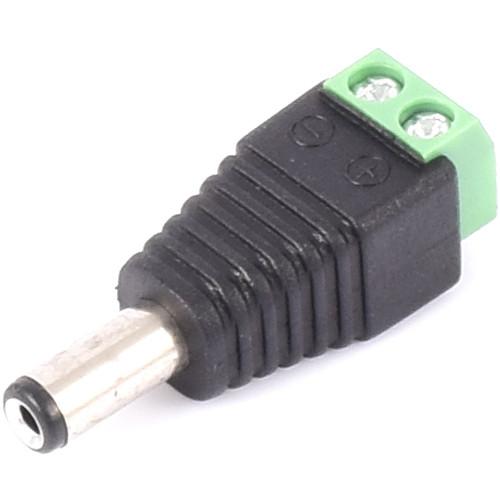

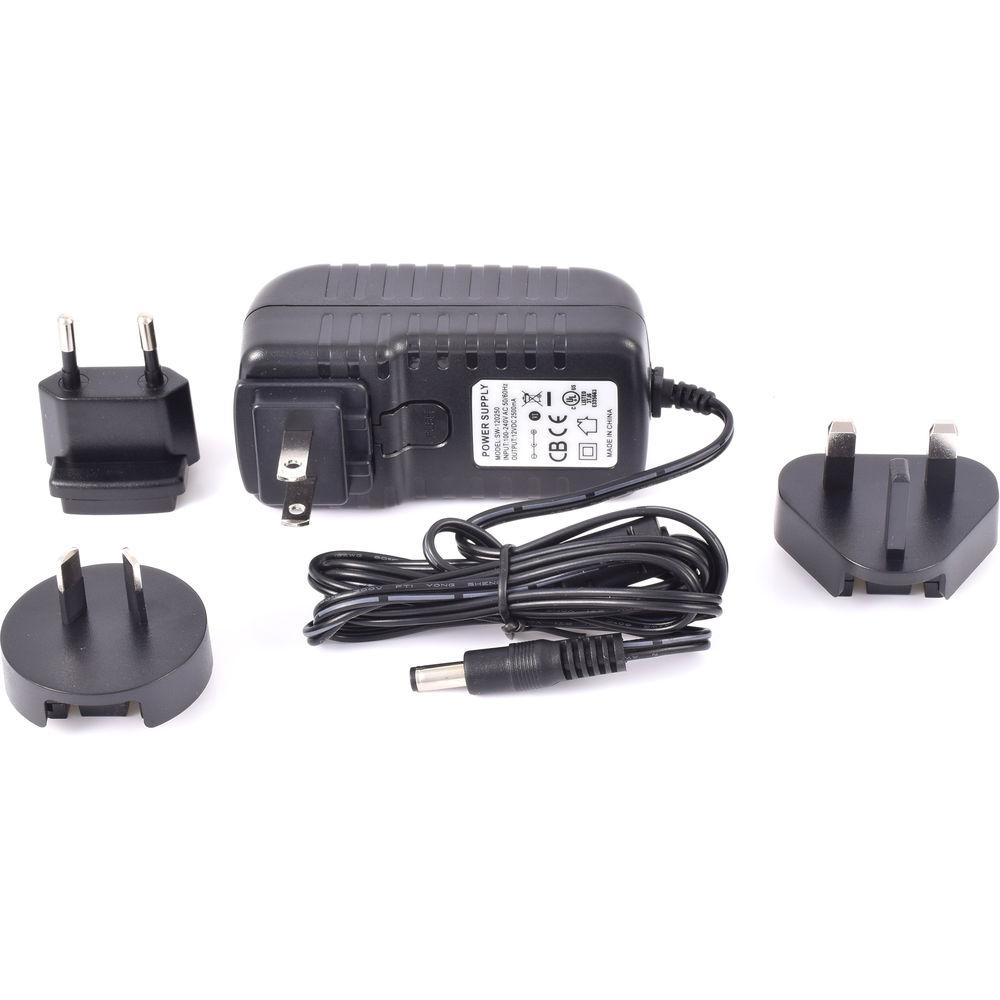

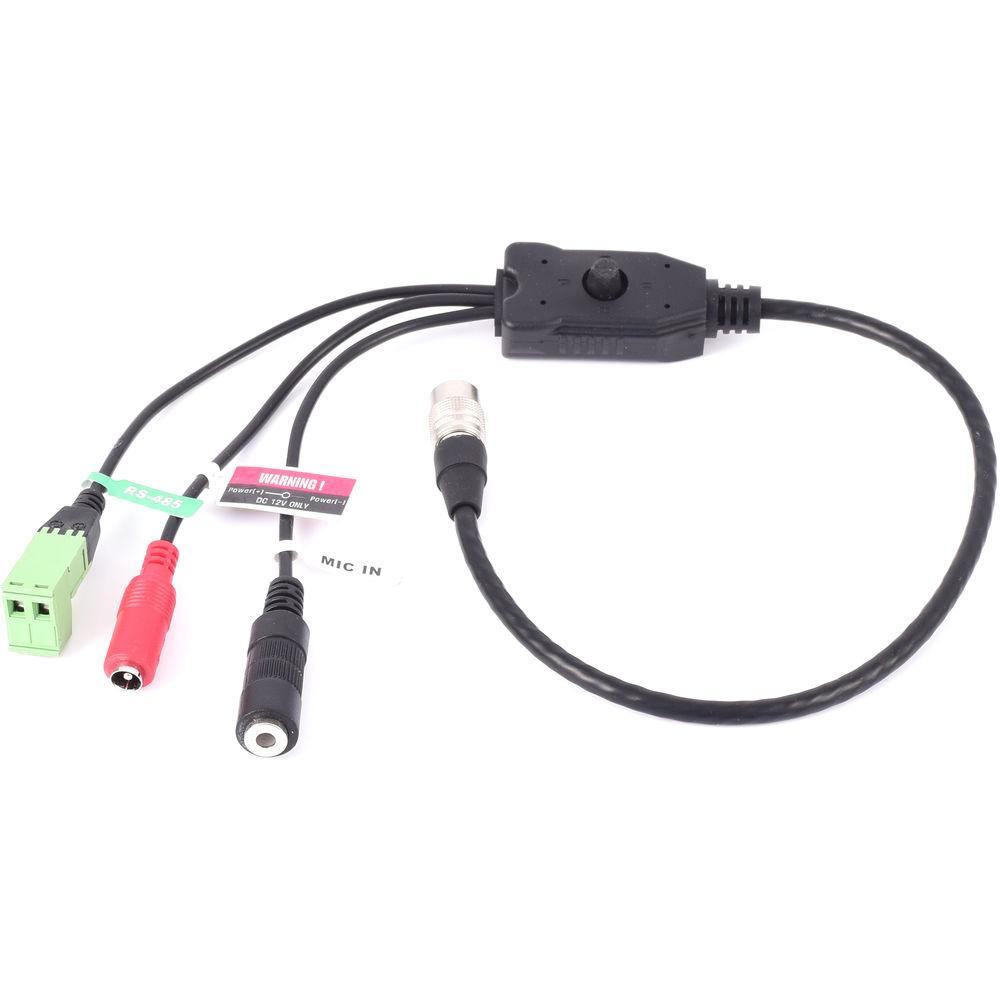

UPC: 710928970582 In the Box AIDA Imaging UHD6G-X12L 4K Professional EFP Camera I/O Breakout Cable 12 VDC Power Supply & Socket Adapter Terminal Power Connector Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AIDA Imaging UHD6G-X12L 4K Professional EFP Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAIDA Imaging UHD6G-X12L Specs | | | Image Sensor | 1/1.7" progressive CMOS | | Sensor Size | Diagonal: 9.93 mm (17:9) | | Effective Pixels | Horizontal: 4096
Vertical: 2160 | | Pixel Size | Horizontal: 1.85 μm
Vertical: 1.85 μm | | Resolution | 4096 X 2160, 3840 x 2160, 1920 x 1080, 1280 x 720 | | Resolution / Frame Rate | 4K (4096 X 2160) at 20/24p
2160p at 30p/29.97p
1080 at 60p/59.94p/50p/30p/29.97p/25p
1080 at 60i/59.94i/50i
720 at 60p/59.94p/50p/30p/25p | | Output | 1 x HDMI 1.4 port
1 x HD/3G/6G-SDI BNC port | | Color Space | 4:2:2 (YCbCr) 10-bit | | | | White Balance | AWB / AE / AF | | Exposure | Full auto, bright, shutter priority, iris priority, manual | | | | Lens | 4.2 to 50.04 mm, F1.8 (Wide) - F2.8 (Tele) | | Optical Zoom | 12x UHD | | Aperture | f/1.8 (wide) to f/2.8 (tele) | | | | Input | 3.5 mm stereo microphone input
Line input over I/O cable | | Sample Rate | 16/24/32 bits | | | | SMPTE | SMPTE 292M, SMPTE 424M, SMPTE 2081-10 | | | | Camera Control | RS-485
OSD Button | | Power | 12 VDC (9 to 15 VDC) | | Operation Temperature | 15 to 120°F / -9.4 to 48.9°C | | Dimensions | 3.55 x 3.55 x 6.17" / 90.20 x 90.20 x 156.70 mm | | Weight | 1.3 lb / 600 g | | | | Package Weight | 4.1 lb | | Box Dimensions (LxWxH) | 14.0 x 6.0 x 5.9" |
