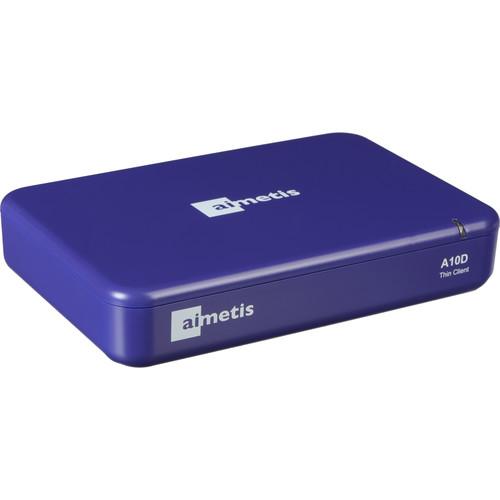

User Manual for aimetis Thin Client 1080p Video Decoder Click to enlarge the picture
Contents of the user manual for the aimetis Thin Client 1080p Video Decoder
- Product category: Video Encoders & Decoders aimetis
- Brand: aimetis
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for aimetis Video Encoders & Decoders
|
User manual for the aimetis Thin Client 1080p Video Decoder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any aimetis product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official aimetis user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a aimetis product will considerably shorten its lifespan!
|
Product description Compatible with over 30 IP camera brands, the Thin Client 1080p Video Decoder from Aimetis can be used in new CCTV systems or as a complementary addition to existing surveillance setups. The decoder supports multiple views at various frame rates, with a maximum resolution of 1080p at 30 fps. H.264 and MJPEG formats are utilized to maximize bandwidth and storage without compromising video quality.
There is an HDMI port for high-definition video output, and two USB 2.0 ports enable control of the device with a mouse or touchscreen. The decoder can also be controlled via web browser or on an iOS or Android mobile device. You can live switch cameras, views, and PTZ control without worrying about damaging the system. Video playback and export is supported with the Aimetis Symphony server (available separately).
The decoder's small, fanless form factor makes it a suitable solution for surveillance systems in space constrained environments. VESA mounting offers a variety of mounting options, including wall and desk spaces. PoE technology offers power with a minimal number of wires for clean and simple installation, and it uses less energy than a computer for an environmentally friendly option. - Decode 1080p video from over 30 compatible network video brands
- Live switching of cameras, views, and PTZ control
- Video playback and export with Aimetis Symphony (available separately)
- Compatible with iOS and Android devices for remote control of cameras
- Powered using PoE technology
- Small fanless form factor
- VESA, wall, or desktop mounting
- Supports Aimetis Symphony carousel or camera sequences (available separately)
- Aimetis Enterprise Manager integration for centralizing firmware management and health monitoring
In the Box aimetis Thin Client 1080p Video Decoder HDMI Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the aimetis Thin Client 1080p Video Decoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersaimetis Thin Client Specs | Operating System | Linux | | Video Output | 1 x HDMI (1080p) | | Supported Views | 1: 1920 x 1080 @ 30 fps
4: 960 x 540 @ 25 fps
6: 640 x 450 @ 20 fps
9: 640 x 360 @ 20 fps
12: 480 x 270 @ 10 fps
16: 480 x 270 @ 10 fps | | Compression | H.264, MPEG-4, MJPEG | | USB | 2 x USB 2.0 port | | Control Options | Mouse, touchscreen, HDMI-CEC, web browser, mobile device | | Mobile OS Support | iOS, Android | | Ethernet | 1 x Gigabit | | Security | Password protection | | Network Protocols | TCP, UDP, IP, HTTP, RTSP, ICMP, ARP, DHCP, DNS | | Power | PoE: IEEE 802.3af, Class 3 (max)
8.5 W | | Approvals and Compliance | CE, FCC, RoHS | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Storage Temperature | -4 to 113°F / -20 to 45°C | | Mounting | VESA for wall or desk | | Dimensions | 6.9 x 4.7 x 1.4" / 175.0 x 120.0 x 35.0 mm | | Weight | 21.2 oz / 600.0 g | | | | Package Weight | 1.915 lb | | Box Dimensions (LxWxH) | 9.55 x 7.15 x 3.8" |
