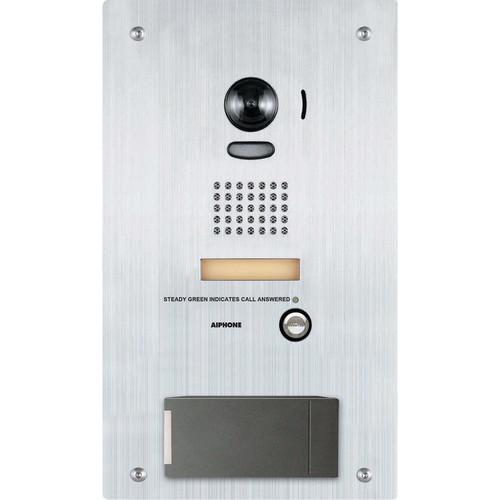

Product description The Aiphone IS Series IS-DVF-HID-I Vandal-Resistant Color Video Door Station with Built-In HID iCLASS Smart Card Reader is used as part of the IS Series Networked Video Security Communication Systems. This video door station has a camera unit and an HID iCLASS Card Reader built onto the same stainless-steel faceplate. It can be connected to the IS-CCU, IS-SCU IS Exchange Units via CAT5e/6 wire. Maximum distance from the door station to the exchange unit is 980'. Wiring and power for the card reader are separate from the intercom wiring. The card reader is connected to any type of a host controller that is compatible with the HID iCLASS R10 (Rev. C) smart card reader. In addition, the card reader provides electronic access to a building through a separate third-party Access Control System. - Video door station for IS Series Networked Video Security Communication Systems
- Built-in HID iCLASS R10 (Rev. C) smart card reader
- If a card is missing or malfunctioning, audio/video communication provides user verification
- Standard Wiegand output to access panel
- Offers the convenience of installing combined components in one panel
- Stainless-steel faceplate
- Flush-mounted using the included back-box
- Can be surface-mounted using the SBX-ISDVFP Surface Mount Box, which can be mounted to a standard 1-gang box or any flat surface
- Tamper-resistant screws included
In the Box Aiphone IS Series IS-DVF-HID-I Vandal-Resistant Color Video Door Station with Built-In HID iCLASS Smart Card Reader Security Driver Blank Name Placard Flush Back Box with Tamper-Resistant Screws Table of Contents
|
Upload User Manual
Have you got an user manual for the Aiphone IS Series IS-DVF-HID-I Vandal-Resistant Color Video Door Station with Built-In HID iCLASS Smart Card Reader in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAiphone IS-DVF-HID-I Specs | | | Type | iClass R10 (Rev. C) | | Power Source | 10 to 16 VDC | | Current | Average: 80 mA
Peak: 300 mA | | Transmission Frequency | 13.56 MHz | | Termination | Color-coded pre-wired pigtail | | Distance | Wiring: 500.0' (152.4 m) | | Operating Temperature | 14 to 140°F (-10 to 60°C) | | Operating Humidity | 5 to 95% relative humidity, non-condensing | | | | Type | 1/4" color CMOS | | Number of Lines | 525 | | Minimum Illumination | 5 lux at 1.5' (0.5 m) | | | | Power Source | 48 VDC (supplied from CEU) | | Communication | Open voice hands-free | | Wiring | Distance: 980.0' (298.7 m) with CAT5e/6 cable | | Termination | RJ45 jack for audio/video
Screw terminals for door release | | Release | Door Release Contact: 24 VAC/VDC, 500 mA (N/O, COM, N/C) | | Operating Temperature | 14 to 140°F (-10 to 60°C) | | Approvals | FCC (Part 15) | | Dimensions (W x H x D) | 7.0 x 12.4 x 1.9" (177.8 x 314.3 x 47.6 mm) |
