User Manual for AJA 12GM 12G-SDI to from SDI Muxer DeMuxer Click to enlarge the picture
Contents of the user manual for the AJA 12GM 12G-SDI to from SDI
- Product category: Signal Converters AJA
- Brand: AJA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AJA Signal Converters
|
User manual for the AJA 12GM 12G-SDI to from SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AJA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AJA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AJA product will considerably shorten its lifespan!
|

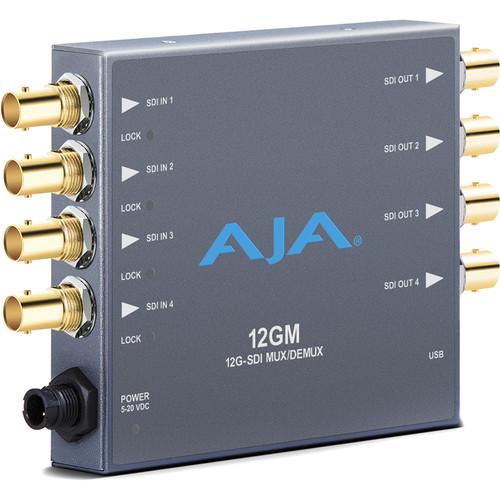

Product description AJA's 12GM is an SDI standard converter. Resolutions up to DCI 4K are supported, so Quad 3G-SDI can be converted into 12G and vice-versa. Multi-link signals can now be combined to run over fewer cables, and newer standards can now be backward compatible with legacy SDI gear. All signals are re-clocked and amplified to ensure signal integrity over long cable runs. - Compact 12G to/from 3G conversion
- SMPTE 2082 inputs and outputs configurable to SMPTE 425 inputs and outputs
- Converts SMPTE 425M A to/from SMPTE 425M B
- Fully equalizing and reclocking with jitter attenuation
- If SMPTE 292M is input, all outputs are 1.5G SMPTE 292M
- DWP-U-R1 power supply included
UPC: 892448000601 In the Box AJA 12GM 12G-SDI to/from SDI Muxer/DeMuxer DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters uafzeuuwsbbfdcfxuuxqcwytuqzrtdwr Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA 12GM 12G-SDI to from SDI Muxer DeMuxer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA 12GM Specs | Inputs | 4 x BNC, SD/HD/3G/6G/12G-SDI | | Outputs | 4 x BNC, SD/HD/3G/6G/12G-SDI | | Other I/O | 1 x USB mini-B | | Resolution Support | 4096 x 2160 23.98/24/25/29.97/30/50/59.94/60
3840 x 2160 23.98/24/25/29.97/30/50/59.94/60
2048 x 1080 23.98/24/25/29.97/30/50/59.94/60
1080p 23.98/24/25/29.97/30/50/59.94/60
1080i 25/29.97/30
720p 50/59.94/60
NTSC
PAL | | SDI Standards | SMPTE-259/292/424/2081/2082 | | Cable Equalization | 12G: 295' / 90 m
6G: 401' / 125 m
3G: 525' / 160 m
1.5G: 656' / 200 m
270M: 1542' / 470 m
(tested with Belden 1694 coax cable) | | Chroma Subsampling | 4:2:2 YCbCr, 4:4:4 YCbCr/RGB | | Color Depth | 8/10-bit | | Audio Support | 16-channels embedded 24-bit audio | | Power | Input: 5-20 VDC
Consumption: 12 W | | Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -40 to 140°F / -40 to 60°C Humidity: 10-90%, non-condensing
Operating Altitude: < 10,000' / 3000 m | | Dimensions | 5.8 x 4 x 0.9" / 14.6 x 10.2 x 2.3 cm | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 7.2 x 5.7 x 4.2" |
