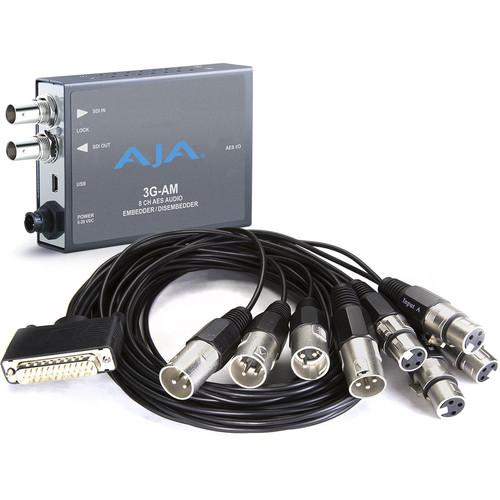

User Manual for AJA 3G-AM 8-Channel AES Embedder Disembedder with XLR Breakout Cable Click to enlarge the picture
Contents of the user manual for the AJA 3G-AM 8-Channel AES Embedder Disembedder
- Product category: Embedders & De-Embedders AJA
- Brand: AJA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AJA Embedders & De-Embedders
|
User manual for the AJA 3G-AM 8-Channel AES Embedder Disembedder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AJA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AJA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AJA product will considerably shorten its lifespan!
|
Product description The 3G-AM from AJA is a triple rate 8-channel AES audio embedder/disembedder. AES audio can be embedded and disembedded simultaneously. The embedder is user selectable, on a channel pair basis, to either "pass" existing SDI input audio or embed AES input audio from the breakout cable. The ability to pass incoming ancillary data makes it possible to embed up to 16 channels of audio by cascading two units. Horizontal ancillary data (HANC) packets in compliance with SMPTE 291M can also be dropped at the input. The 3G-AM automatically detects and configures to the input video standard, and formats to a resolution of up to 2048 x 1080p. This unit includes an XLR connector AES breakout cable. - Triple rate 3G, HD, and SD-SDI embedder/disembedder
- BNC 3G-SDI input and output
- Setup via DIP switch or Windows/Mac using USB port and supplied USB cable
UPC: 892448000861 In the Box AJA 3G-AM 8-Channel AES Embedder/Disembedder with XLR Breakout Cable 25-Pin Sub-D Male to XLR Breakout Cable USB Cable DWP-U-R1 Power Supply Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA 3G-AM 8-Channel AES Embedder Disembedder with XLR Breakout Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA 3G-AM Specs | Video Input | SDI:
3G SMPTE 424/425M
HD SMPTE 292/296M
SD SMPTE 259M | | Input Formats | 3 Gb SDI (level A or B):
2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
2048 x 1080psf 23.98, 24, 25, 29.97, 30
1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1920 x 1080psf 23.98, 24, 25, 29.97, 30
1920 x 1080i 25, 29.97, 30 (4:4:4 and 4:2:2, 12 bit)
1280 x 720p 50, 59.94, 60 (4:4:4 and 4:2:2, 12 bit)
1.5 Gb SDI:
2048 x 1080p 23.98, 24, 25, 29.97, 30
2048 x 1080psf 23.98, 24, 25, 29.97, 30
1920 x 1080p 23.98, 24, 25, 29.97, 30
1920 x 1080psf 23.98, 24, 25, 29.97, 30
1920 x 1080i 25, 29.97, 30
1280 x 720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
270 Mb SDI:
525i 29.97
625i 25 | | Video Output | SDI | | Video Latency | SD (270 Mb) = 17.2 usec
HD (1.5 Gb) = 6.3 usec
3G level A = 3.2 usec
3G level B = 6.1 usec | | Audio Formats | AES PCM AES3-2003
SMPTE 337M | | Digital Conversion | 24-bit | | Embedded Audio | SMPTE 272M (SD): 20-bit, 48 kHz synchronous
SMPTE 299M (3G/HD): 24-bit, 48 kHz synchronous
Up to 16 channels supported | | Audio Latency | Embed Path Audio Latency: 1500 usec (SRC ON)
400 usec (SRC OFF)
Disembed Path Audio: 210 usec | | Indicator | 1 x LED, LOCK LED indicator | | Connectors | 1 x BNC, SDI video input
1 x BNC, SDI video output
1 x 25-pin Sub-D female, 8-channels audio input/output
1 x USB, Control and Setup port
1 x DC, 5 VDC power input | | Controls | 1 x 8 positions external DIP switch | | Power | 5 to 20 VDC regulated, 5 W max | | Power Supply | 100 to 240 VAC, 50/60 Hz | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 140°F (-40 to 60°C) | | Operating Humidity | 10 to 90% non-condensing | | Operating Altitude | < 8000' / < 2500 m | | Dimensions | 5.8 x 3.1 x 1.0" / 14.7 x 7.9 x 2.5 cm | | | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 10.1 x 5.8 x 3.8" |
