User Manual for AJA 3G-AMA 3G-SDI 4-Channel Analog Audio Embedder Disembedder Mini-Converter Click to enlarge the picture
Contents of the user manual for the AJA 3G-AMA 3G-SDI 4-Channel Analog Audio
- Product category: Embedders & De-Embedders AJA
- Brand: AJA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AJA Embedders & De-Embedders
 |
User manual for the AJA 3G-AMA 3G-SDI 4-Channel Analog Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AJA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AJA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AJA product will considerably shorten its lifespan!
|

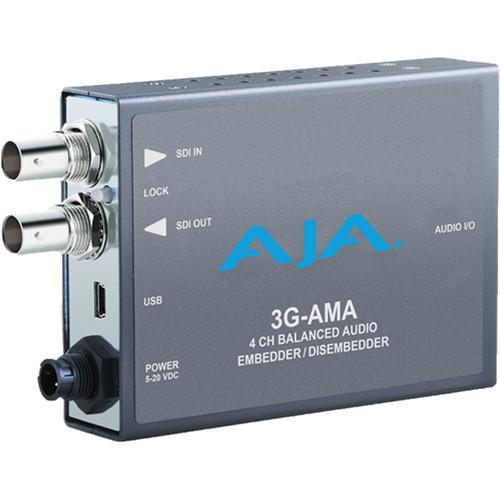

Product description Embed or disembed up to four channels of SDI audio with the AJA 3G-AMA Mini Converter. The 3G-AMA includes a breakout cable which can provide up to four channels of XLR analog audio input or output depending on how the unit is configured. The 3G-AMA can be set up to accept four channels of balanced XLR audio to be embedded in an SDI video feed, or to disembed four channels of digital SDI audio and output them as analog signals via the four XLR output cables. The output SDI signal is re-clocked to preserve the signal integrity over long cable runs. Setting the 3G-AMA up is made simple with AJA's free software solution, MiniConfig. The 3G-AMA connects to your computer running MiniConfig with an included USB 2.0 cable enabling your computer to access the unit's internal programming so you can set it up for your specific workflow. UPC: 892448000199 In the Box AJA 3G-AMA 3G-SDI 4-Channel Analog Audio Embedder/Disembedder Mini-Converter Breakout Cable Universal Power Supply Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA 3G-AMA 3G-SDI 4-Channel Analog Audio Embedder Disembedder Mini-Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA 3G-AMA Specs | Video Input | 1 x SDI (BNC):
SD SMPTE 259M
HD SMPTE 292/296M
3G SMPTE 424/425M | | Input Formats | 3G-SDI:
2048x1080p 23.98/24/25/29.97/30/50/59.94/60
2048x1080psf 23.98/24/25/29.97/30
1920x1080p 23.98/24/25/29.97/30/50/59.94/60
1920x1080psf 23.98/24/25/29.97/30
1920x1080i 25/29.97/30
1280x720p 50/59.94/60
HD-SDI:
2048x1080p 23.98/24/25/29.97/30
2048x1080psf 23.98/24/25/29.97/30
1920x1080p 23.98/24/25/29.97/30
1920x1080psf 23.98/24/25/29.97/30
1920x1080i 25/29.97/30
1280x720p 23.98/24/25/29.97/30/50/59.94/60
SD-SDI:
525i
625i | | Video Output | 1 x SDI (BNC) | | Output Formats | Video Out is a delayed, reclocked version of Video In, at same frame rate, etc. Video Out is undefined when no input.
Video Latency:
SD-SDI - 17.2 µsec
HD-SDI - 6.3 µsec
3G-SDI level A - 3.2 µsec
3G-SDI level B - 6.1 µsec | | Audio I/O | 1 x DB-25 for 4 channels I/O
DB-25 Breakout cable:
4 x XLR female input breakout connectors
4 x XLR male output breakout connectors | | Audio Converters | 24-bit | | Embedded Audio | SMPTE 272M (SD): 20-bit, 48 kHz synchronous
SMPTE 299M (3G/HD): 24-bit, 48 kHz synchronous
Incoming embedded audio can be passed, removed, or overridden.
Up to 16 channels supported.
NOTE: 2048x1080p/psf 29.97 and 30 formats support a maximum of 8 channels embedded audio. | | Audio Latency | Embed from audio input:
1100 µsec
Disembed from video input:
1200 µsec | | Audio Level Control | Settings Configured via MiniConfig Software:
Pro 1: 0 dBfs = +24 dBu
Pro 2: 0 dBfs = +18 dBu
Pro 3: 0 dBfs = +15 dBu
Consumer 1: 0 dBfs = +12 dBu | | User Controls | External DIP switch
USB port for MiniConfig software application | | Power | 5 to 20 VDC, 5 W | | Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C
Operating Relative Humidity: 10-90% non-condensing
Operating Altitude: <8,000' / <2,500 m
Safe Storage Temperature (Power OFF): -40 to 140°F / -40 to 60°C | | Dimensions | 5.8 x 3.1 x 1" / 147 x 79 x 25 mm | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 10.1 x 5.6 x 3.7" |
