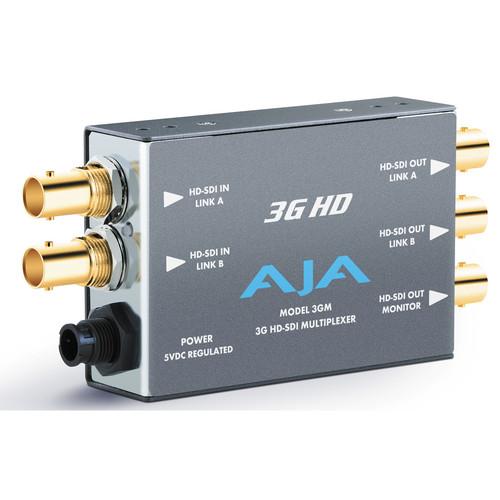

Product description AJA's 3GM HD Mini-Converter is a versatile and economical tool for interconnecting dual-link 1.5G SMPTE372M and 3G SMPTE425M. 3GM is bi-directional - allowing dual 1.5G to 3G or 3G to dual 1.5G conversion. Additionally, 3GM's 3G HD-SDI output is configurable for SMPTE425M type A or B. The 3GM can even convert 3G from/to type A or B. 3GM also provides a monitor output which is a single link SMPTE292M 1.5G HD-SDI. The 3GM is also compatible with SMPTE259M 270Mb SDI. - Compact 3G to/from 1.5G conversion
- SMPTE425M-AB inputs, 3G outputs configurable to A or B
- Converts SMPTE425M A to/from SMPTE425M B
- Provides SMPTE292 monitor output for dual 1.5G or 3G inputs
- Fully equalizing and re-clocking with jitter attenuation
- Passes all ancillary data
UPC: 892448000496 In the Box AJA 3GM HD Mini-Converter +5VDC Regulated, 6 Watts, Power Supply Limited 5-Year Warranty User Manual PDF 426.4kbyfuzdwuvbfurxfaterdtzy Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA 3GM HD Mini-Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA 3GM Specs | Formats | 3Gb, 1.5Gb, 270Mb auto select | | Video Inputs/Outputs | 2 HD-SDI, SDI (SMPTE 259/292/296/424), 2 x BNC | | Cable Equalization | 270mb, 350m
1.5Gb, 200m
3Gb, 120m | | Input/Output Return Loss | >15db, 270Mb - 3Gb | | Power | +5VDC regulated, 6 watts, power supply | | Dimensions | 4.6 x 2.4 x 1" (117 x 61 x 25 mm) | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 9.9 x 7.3 x 2.8" |
