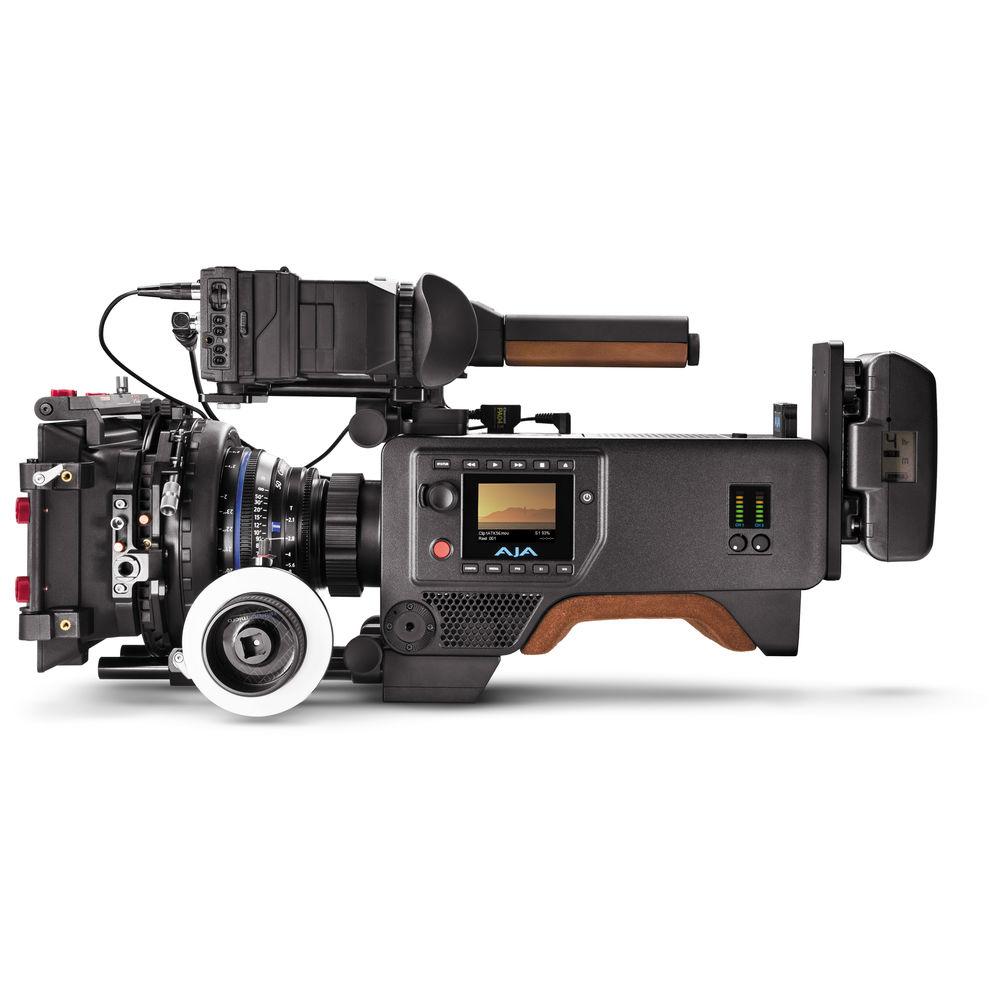

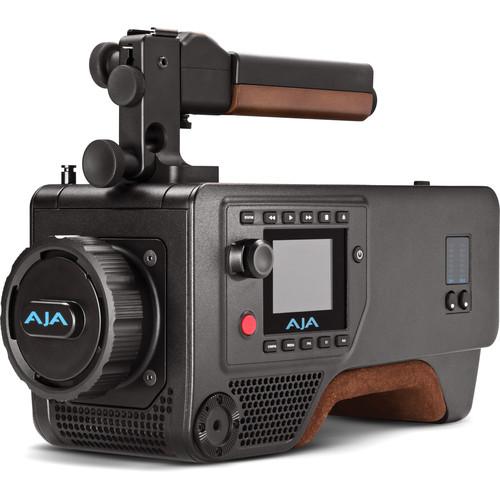

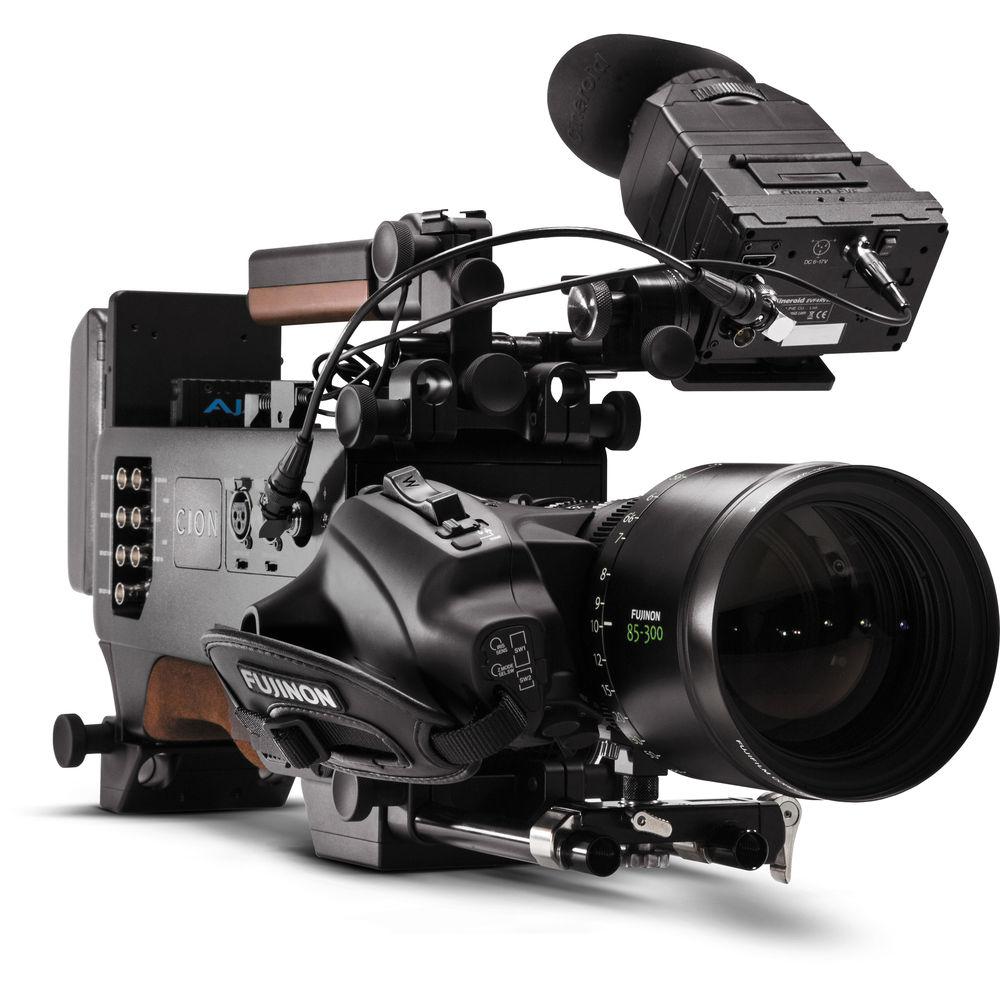

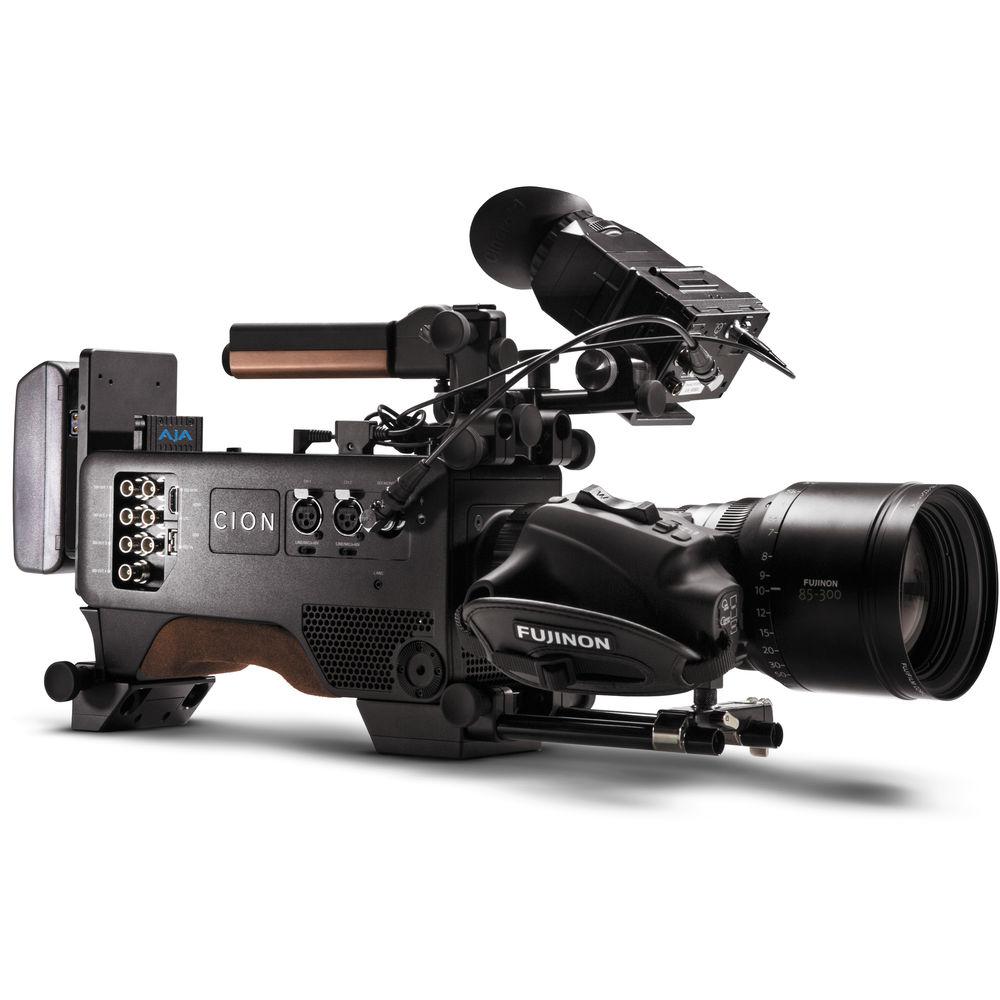

Product description - AJA Cion: Hands On Review
The AJA CION 4K/UHD and 2K/HD Production Camera features an APS-C sized 4K image sensor capable of capturing both DCI and UHD 4K as well as 2K and HD resolution video. Video is recorded using Apple ProRes 4444 and 422 codecs up to DCI 4K (4096x2160) at 60 fps to AJA Pak media. The camera can also output AJA Raw video at up to DCI 4K at 120 fps via quad-link 3G-SDI output, and up to 30 fps over Thunderbolt. With an ergonomic yet flexible design and industry-standard connections, the CION is ready for professional use in the field or in the studio.
The 4K APS-C sized CMOS image sensor provides 12 stops of dynamic range and utilizes an electronic global shutter to eliminate motion skew associated with rolling shutters. An integrated Optical Low-Pass and IR cut filter serves to reduce moiré while yielding sharp images with high quality colors. The camera uses a PL lens mount for use with industry standard cinema lenses. And because APS-C is very similar in size to that of Super 35mm, your Super 35mm PL lenses will cover the imaging area of the sensor. Mechanical back focus adjustment has been included for fine-tuning the distance between the lens and the sensor for optimum image sharpness.
The CION is designed to be user friendly in form and operation. A contoured shoulder pad provides comfortable shoulder-mounted operation, and the included top handle features an integrated LANC start/top button. All of the audio and video connections are industry-standard and have been placed so not to interfere with camera operation. Camera interface controls are located on the side of the camera facing the operator for easy access in single-user setups. The menu is also easy to navigate using a dial knob. The integrated monitor displays the menu information as well as a preview of your real-time image. The camera can also be controlled remotely via a LAN connection, and even ganged with other CION cameras for multicam shoots. - 4K APS-C Sensor
- CION features a 4K APS-C sized CMOS sensor with an electronic global shutter and 12 stops of dynamic range. Super 35mm lenses cover the imaging area of the sensor, while the global shutter eliminates the negative effects associated with rolling shutter-based sensors.
- Recording Formats
- CION can record at DCI 4K (4096x2160), UltraHD (3840x2160), 2K (2048x1080), and Full HD (1920x1080). 2K and HD resolutions are hardware scaled from the full 4K sensor, resulting in over-sampled images, which retain your lens' angle of view at any desired resolution. Frame rates up to 50 and 60 fps can be recorded to AJA Pak media, while outputting AJA Raw in frame rates up to 120 fps via 4x 3G-SDI outputs.
- AJA Pak Media
- The camera records to AJA's SSD-based Pak storage. The robust high-speed compact storage slots directly into the camera and allows recording of both DCI 4K and UHD 4K in addition to 2K and HD as ProRes 4444, ProRes 422 (HQ), ProRes 422, ProRes 422 (LT), and ProRes (Proxy). Pak media is available in 256GB or 512GB capacities and by utilizing the optional AJA Pak Dock, you can transfer your footage over high-speed Thunderbolt or USB 3.0. AJA Pak media features a multi-insertion rated connector. Connecting to CION via the LAN connector provides real time information regarding the Pak currently in use and by utilizing a Thunderbolt enabled RAID storage drive you can quickly back up your Pak media as you shoot.
- AJA Raw Workflows
- CION can output frame rates up to 120 fps as either DCI 4K or UHD 4K from its 4 x 3G-SDI outputs as AJA Raw. You can also output AJA Raw up to 30 fps via the camera's Thunderbolt connector. With the use of AJA's Corvid Ultra in conjunction with TruZoom software (both sold separately), you can even take the AJA Raw output and replay it at up to 60 fps, for live broadcast applications.
- PL Lens Mount
- The camera uses PL mount lenses that are the industry standard for professional cinema cameras. Additionally, the lens mount has been designed to be removable so third parties may develop mounts for other lens types.
- Optical Low Pass Filter and IR Cut Filter
- An integrated Optical Low-Pass Filter reduces unwanted moiré effects while still retaining image detail. The infra-red cut filter helps produce high quality colors within the image by blocking unwanted light wavelengths.
- Back Focus Adjustment
- The inclusion of a mechanical back focus adjustment allows for proper calibration of the distance between lens and sensor. By making finely tuned adjustments, the sharpest image quality is assured.

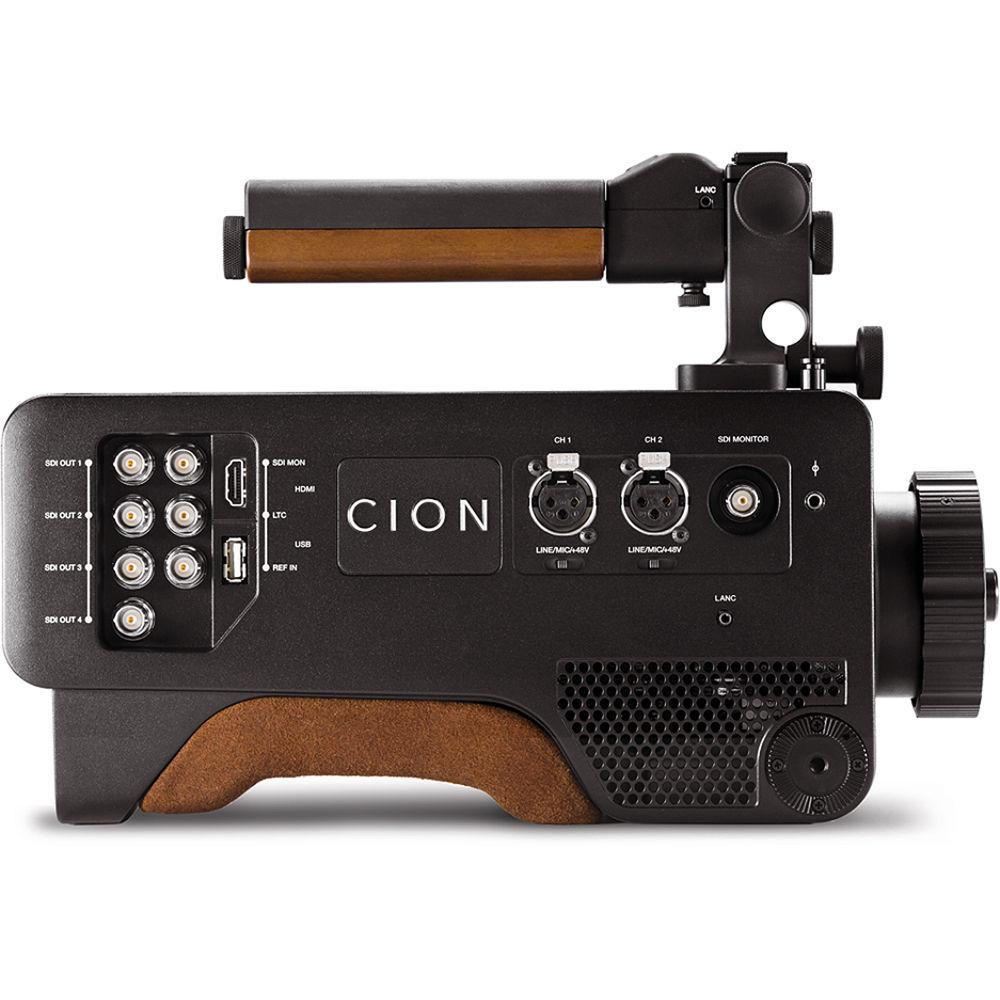

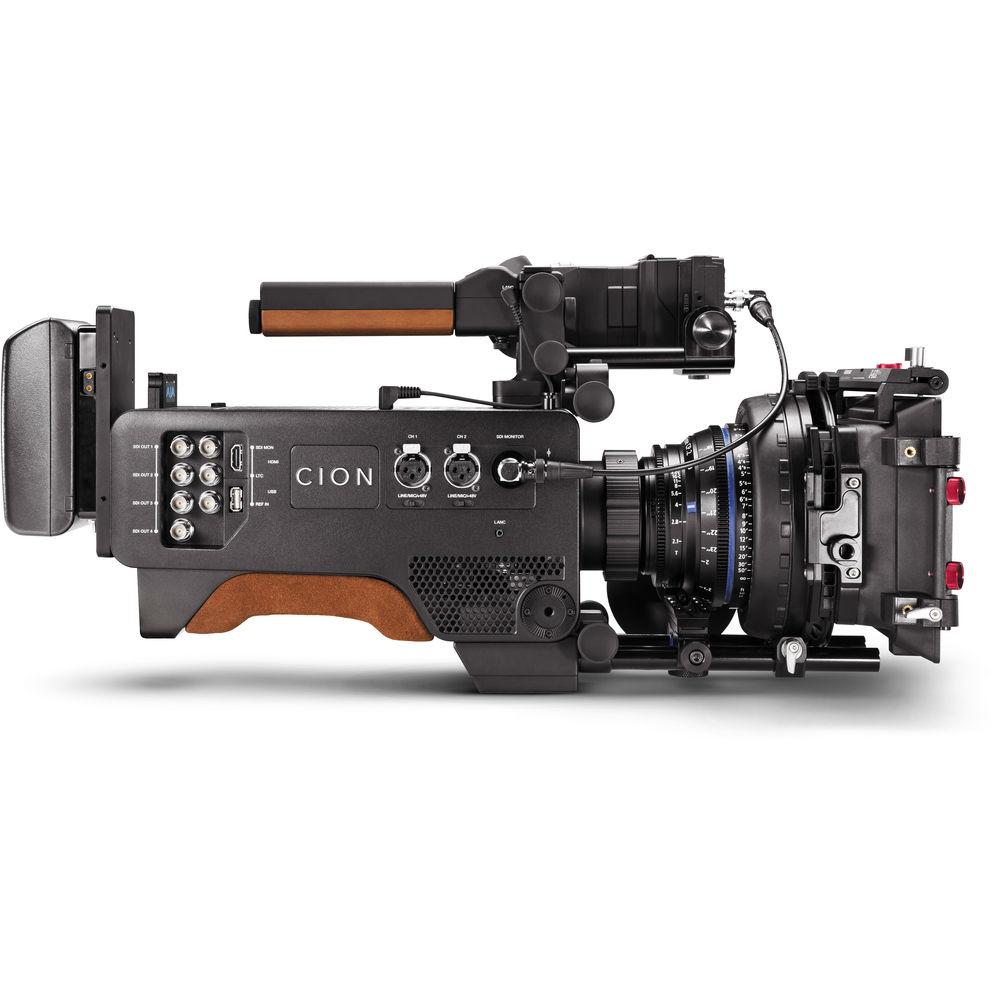

- Connectivity
- CION is designed to let you customize the camera to suit your shooting style and needs. All of the audio and video connections are industry-standard and audio and video connectors have been placed where they will not interfere with camera operation. 3G-SDI and HDMI monitor outputs, as well as a power output, make it easy to add a monitor or viewfinder to the camera and, utilizing internal scaling, these dedicated monitoring outputs are always active even when shooting at DCI 4K and UHD resolutions.

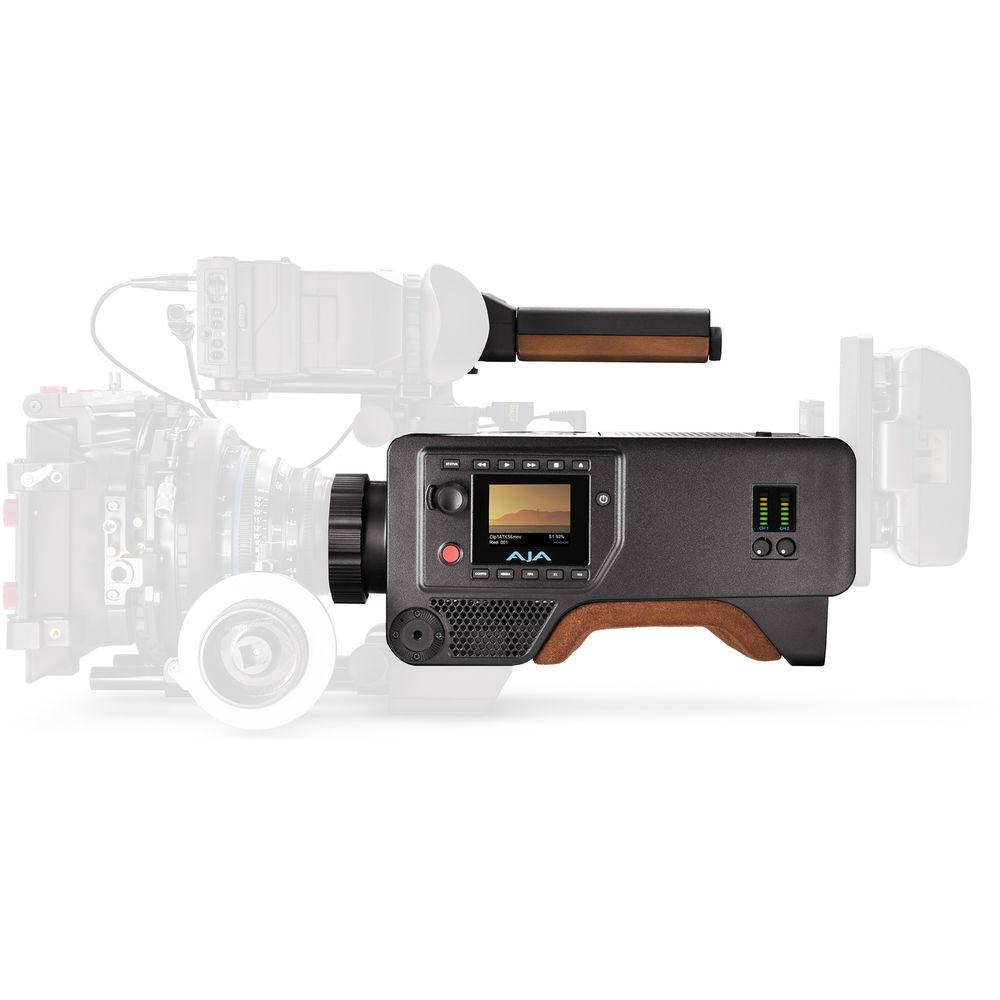

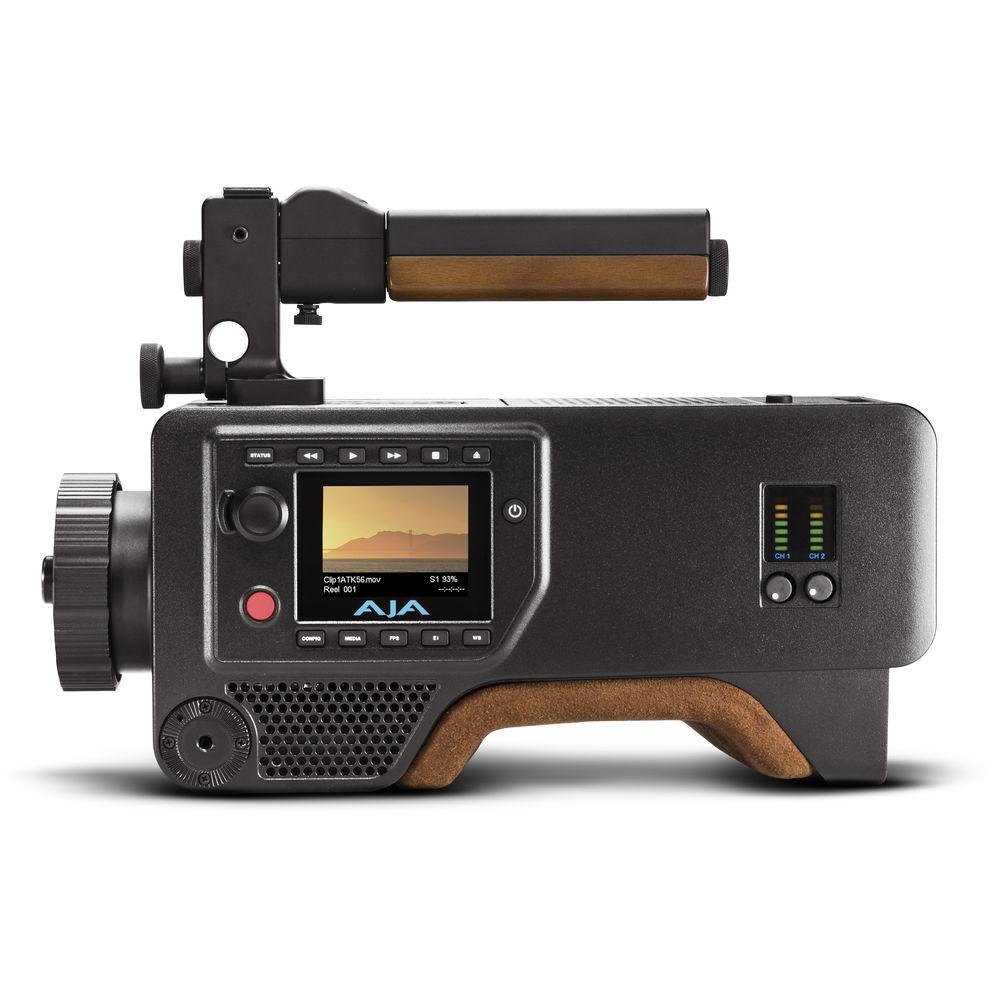

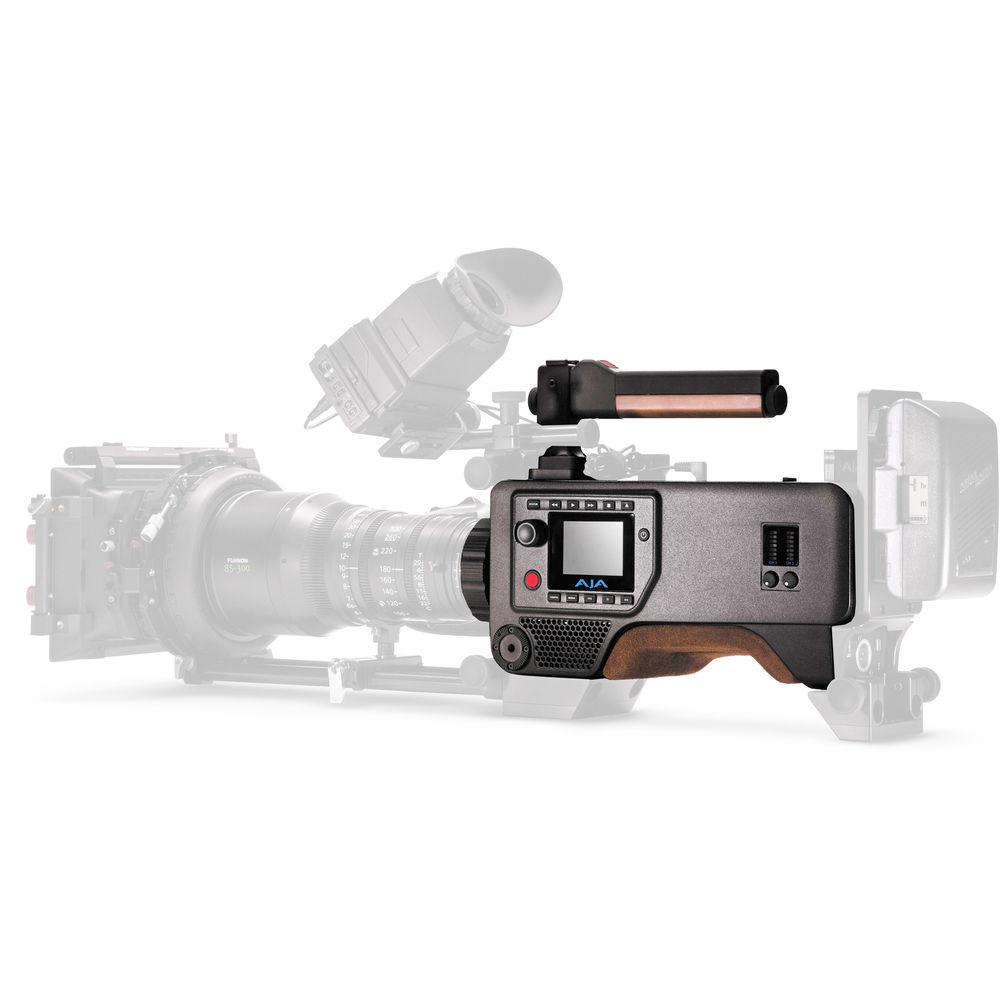

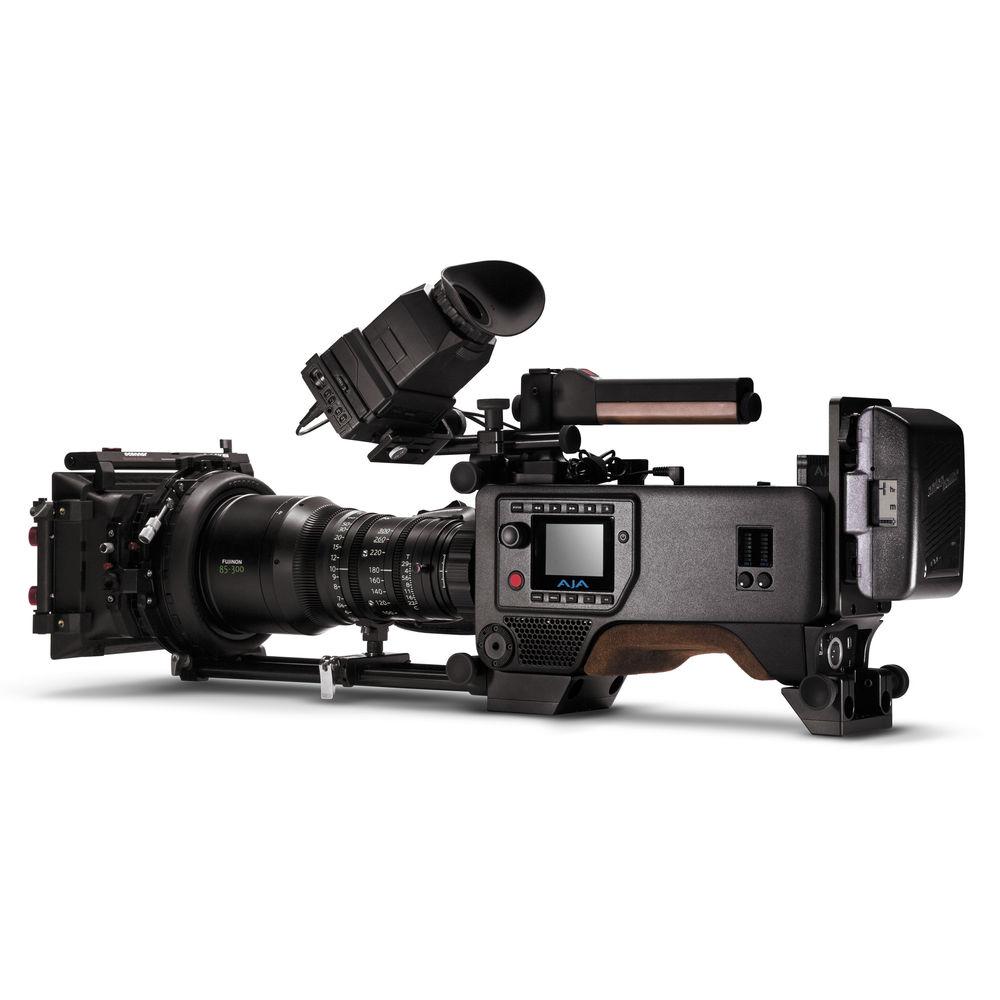

- User Interface
- All the interface controls are found on the side of the camera facing the operator for easy single user functionality. The menu structure is designed for ease of use, without cumbersome sub-menu navigation. Settings can be adjusted confidently using a selection knob. The integrated monitor displays the menu information as well as a preview of your real-time image. CION also offers powerful network-based control. Via the LAN connection, a web-browser UI allows for remote configuration of the camera, making it completely controllable whether it's on a crane, jib, or other mount.
- Multicam Gang Control
- CION makes multicam shoots easier to manage by using a laptop with a simple Ethernet switch and LAN cables. The web UI allows complete and independent set up of multiple CION cameras; you may name each camera and consolidate control of the cameras from within a web browser using the unique gang recording feature. The web UI will also allow real-time monitoring of the capacity of the Pak media used in each CION.
- Chassis
- The sleek chassis is formed of gravity molded magnesium which is lightweight but strong. Integrated steel rosettes allow you to mount industry standard accessories including hand grips and handle extensions directly to the camera body.
- Mounting
- Aluminum cheese plates are fitted to both the top and bottom of the chassis to provide easy mounting of accessories from both AJA and third parties, with standard thread sizes to offer a wide range of compatibility.
- Ergonomics
- CION is designed to be comfortable, convenient, and flexible for a variety of shooting environments. A contoured shoulder pad fits comfortably to your shoulder for hand held use. An included top handle made of high grade aluminum and wood features an integrated LANC start/stop button. The handle base itself uses a LWS 15mm rod and through hole to allow you to mount additional third part accessories.
In the Box AJA CION 4K/UHD and 2K/HD Production Camera Handle Grip Handle Mount LANC Collar LANC Cable Standard Rear Door Plate Alternate Rear Door Plate Battery Adapter Plate AC Power Supply Limited 2-Year Warranty Guides & Manuals rsqufyyeuacuvqsfafussxuar Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA CION 4K UHD and 2K HD Production Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the AJA CION 4K UHD and 2K HD Production Camera can be downloaded in PDF format at the link stated below.
Technical parametersAJA CION Specs | | | Image Sensor Size | 22.5 x 11.9 mm (Super35) | | Sensor Type | CMOS | | Shutter Type | Global Shutter | | ISO | 320 to 1000 (Expanded) | | Advertised Dynamic Range | 12 Stops | | | | Lens Mount | PL Mount | | Built-In ND Filter | None | | Recording Media | 1 x AJA Pak Card Slot | | | | Recording Modes | ProRes 4444:
4096 x 2160p at 23.98/24/25/29.97/30 fps
3840 x 2160p at 23.98/24/25/29.97/30 fps
ProRes 422:
4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps
3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps | | | | Raw Output | SDI/BNC:
4096 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps
Thunderbolt:
4096 x 2160 at 23.98/24/25/29.97/30 fps | | | | Video Connectors | 1 x HDMI (HDMI 1.4) Output
2 x BNC (3G-SDI) Monitor Output
4 x BNC (3G-SDI) Output
1 x HDMI (HDMI 1.3) Output | | Audio Connectors | 2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input
1 x 1/8" (3.5 mm) Stereo Headphone Output | | Other I/O | 1 x RJ45 LAN
1 x BNC Timecode
1 x BNC Reference Input
2 x 2.5 mm LANC Control Input | | | | Battery Type | None | | Power Connectors | 1 x 4-Pin XLR (12 to 18 VDC at5 A) Input | | Power Consumption | ≥47 W | | | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Accessory Mount | 1 x Cold Shoe Mount
1 x 1/4"-20 Female | | Weight | 7.4 lb / 3.4 kg | | | | Package Weight | 14.0 lb | | Box Dimensions (LxWxH) | 17.1 x 13.4 x 13.0" |
