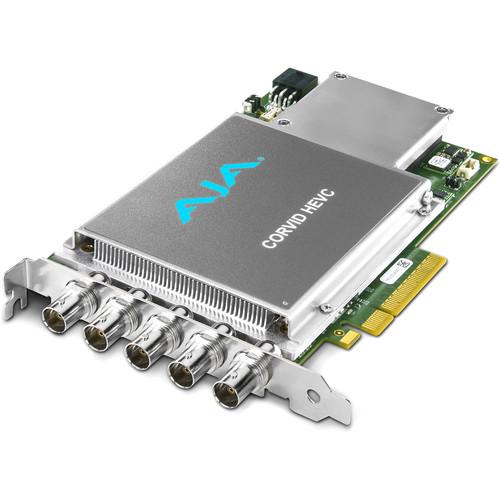

Product description The Corvid 22 PCIe 4x Card from AJA is used to transfer 8-/10-bit YCbCr and RGB frame buffer formats with two independent channels for input and output, and supports digital 3G, HD, SD-SDI, and all SD/2Kx1080 input/output formats. It uses separate LTC, metadata, and RS-422 for each channel for capturing or playback of digital uncompressed audio and video, and is compatible with all Windows XP or higher and 32-/64-bit Linux operating systems via SDK (software development kit) environments. It also offers true broadcast-level performance.
Allowing output of two simultaneous video/key pairs over 3G using two mixer/keyer widgets, the Corvid 22 PCIe 4x card allows up to two simultaneous downstream keyers. It offers support for analog color black or HD tri-level synchronization, and includes two independent 16-channel 24-bit/48 kHz SDI embedded audio input/output engines. The PCI express card uses the API (application programming interface), which reduces the time required to develop when working on multiple platforms or multiple AJA cards. 1.0/2.3-to-BNC pigtail adapters and a breakout cable that supports LTC and RS-422 input/output are available separately. - Used to transfer 8-/10-bit YCbCr and RGB frame buffer formats
- Two independent channels for input and output
- Supports digital 3G, HD, SD-SDI and all SD/2Kx1080 input/output formats
- Uses separate LTC, metadata, and RS-422 for each channel for capturing or playback of digital uncompressed audio and video
- Compatible with all Windows XP or higher and 32-/64-bit Linux operating systems via SDK (software development kit) environments
- Offers true broadcast-level performance
- Allows output of two simultaneous video/key pairs over 3G using two mixer/keyer widgets
- Allows up to two simultaneous downstream keyers
- Offers support for analog color black or HD tri-level synchronization
- Includes two independent 16-channel 48 kHz SDI embedded audio input/output engines
- Uses the API (application programming interface), which reduces the time required to develop when working on multiple platforms or multiple AJA cards
In the Box AJA Corvid 22 PCIe 4x Card Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA Corvid 22 PCIe 4x Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA Corvid 22 Specs | Video Inputs | Digital: 2 x 3G/HD/SD-SDI, SMPTE-259/292/296/424 | | Video Outputs | Digital: 2 x 3G/HD/SD-SDI, SMPTE-259/292/296/424 | | Audio Inputs | Digital: 2 x 16-Channel 24-Bit SDI Embedded, 48 kHz Synchronous | | Audio Outputs | Digital: 2 x 16-Channel 24-Bit SDI Embedded, 48 kHz Synchronous | | Additional Inputs/Outputs | 2 x Independent LTC In/Out
2 x Independent RS-422 | | Video Formats | 2K:
2048 x 1080P 25/24/23.97
2048 x 1080PsF 25/24/23.97
HD:
1080p 60/50/30/29.97/25/24/23.98
1080PsF 30/29.97/25/24/23.98
1080i 30/29.97/25
720p 60/59.94/50
SD:
525i 29.97, 625i 25 | | Reference | Analog Color Black or HD Tri-Level Sync | | Supported Operating Systems | Supports Multiple OS's, Including:
All Windows 7 Platforms
All Windows Vista Platforms
All Windows XP Platforms
Linux 32-/64-Bit | | Dimensions | 7 x 6.57 x 3.86" / 17.78 x 16.69 x 9.80 cm | | Weight | 7 oz / 198.45 g Approx |
