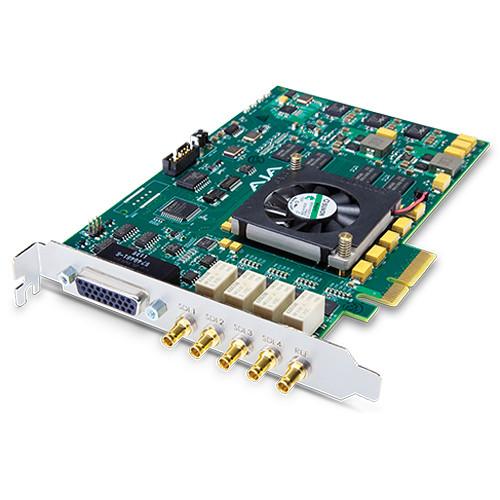

Product description AJA's Corvid 24 supports 4 channels of capture or output with separate LTC, embedded 24-bit audio and metadata for each channel all on a single PCIe card. All four connections can also be used to support full 4K I/O. The choice is yours. And with multiple operating system support, it will work in almost any environment. - Failover bypass relays on each channel
- 4 independent channels 3G, HD-SDI or SD-SDI I/0
- All SD/HD/2Kx1080/4K video formats
- 3G input/output for 1080p50/60 and video/key (dual-link not supported)
- 8/10 Bit YCbCr and RGB frame buffer formats
- 2 mixers/keyer widgets. This allows output of two simultaneous video/key pairs over 3G. It also allows for up to two simultaneous downstream keyers
- 4 independent 16-ch 48kHz SDI embedded audio I/O engines
- Analog color, black or HD tri-level sync
In the Box AJA Corvid 24 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA Corvid 24 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA Corvid 24 Specs | Video Inputs | Digital:
3G/HD/SD-SDI
SMPTE-259/292/296/424 | | Video Outputs | Digital:
3G/HD/SD-SDI
SMPTE-259/292/296/424 | | Audio Inputs | Digital:
16 channel 24-bit SDI embedded
48KHZ synchronous | | Audio Outputs | Digital:
16 channel 24-bit SDI embedded
48KHZ synchronous | | Video Formats | SD:
525i 29.97
625i 25
HD:
720p 50
720p 50.94
720p 60
1080i 25
1080i 29.97
1080i 30
1080PsF 23.98
1080PsF 24
1080PsF 25
1080PsF 29.97
1080PsF 30
1080P 23.98
1080P 24
1080P 25
1080P 29.97
1080P 30
1080P 50
1080P 59.94
1080P 60
2K:
2048 x 1080P 23.98
2048 x 1080PsF 23.98
2048 x 1080P 24
2048 x 1080PsF 24
2048 X 1080PSF 24
2048 x 1080P 25
2048 x 1080PsF 25
4K:
3840 x 2160P 23.98, 24, 25
3820 x 2160PsF 23.98, 24, 25
4096 x 2160P 23.98, 24, 25 | | Reference | Analog color, black or HD tri-level sync | | Breakout /Splitter Cables Included | LTC 1 in
LTC 2 in
LTC 3 in
LTC 4 in
LTC 1 out
LTC 2 out
LTC 3 out
LTC 4 out
RS422 channel 1
RS422 channel 2 | | Dimensions | 6.57 x 0.70 x 3.85"(16.7 x 1.8 x 9.8 cm) | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 9.9 x 6.5 x 3.3" |
