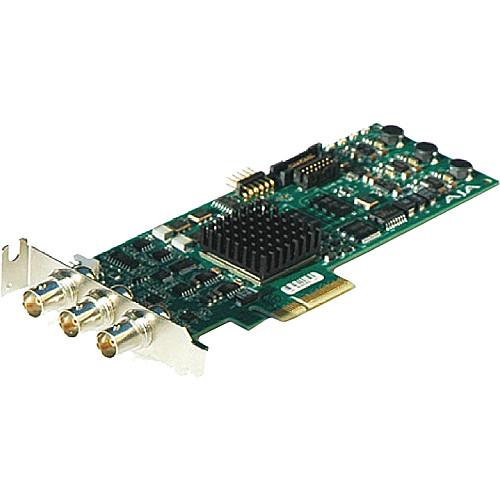

User Manual for AJA Corvid 3G Low Profile Click to enlarge the picture
Contents of the user manual for the AJA Corvid 3G Low Profile
- Product category: Computer Hardware AJA
- Brand: AJA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AJA Computer Hardware
|
User manual for the AJA Corvid 3G Low Profile contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AJA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AJA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AJA product will considerably shorten its lifespan!
|
Product description AJA's Corvid 3G Low Profile expands on the capabilities of the original Corvid with support for 3G signals, opening up the possibility for handling higher quality signals while still providing all the benefits of the Corvid card. Available in a standard-sized PCIe card or "Low Profile" for when space is of the essence, Corvid 3G has the extra horsepower for more demanding applications. - 1 Channel 3G, HD-SDI or SD-SDI Input, 1 Channel 3G, HD-SDI or SD-SDI Output
- 8/10 Bit YCbCr and RGB framebuffer formats
- Available in PCIe form factor (Corvid 3G) or PCIe Low Profile form factor (Corvid 3G LP)
- 16-ch SDI Embedded Audio I/O, 24-bit 48khz
- HD/SD Genlock, Reference Video or LTC Input (selectable)
In the Box AJA Corvid 3G Low Profile 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA Corvid 3G Low Profile in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA Corvid 3G Specs | Video Input | Digital: 3G/HD/SD-SDI, SMPTE-259/292/296/424 | | Video Output | Digital: 3G/HD/SD-SDI, SMPTE-259/292/296/424 | | Audio Input | Digital: 16-channel 24-bit SDI embedded, 48kHz synchronous | | Audio Output | Digital: 16-channel 24-bit SDI embedded, 48kHz synchronous | | Video Format | SD: 525i 29.97625i 25
3G/HD: 720p 50720p 59.94720p 601080i 251080i 29.971080i 301080PsF 23.981080PsF 241080PsF 251080PsF 29.971080PsF 301080P 23.981080P 241080P 251080P 29.971080P 301080P 501080P 59.941080P 60
2K: 2048 x 1080P 23.982048 x 1080PsF 23.982048 x 1080P 242048 x 1080PsF 242048 x 1080P 252048 x 1080PsF 25 | | Reference | Analog Color Black or HD Tri-level sync | | Dimensions | 6.61 x 0.55 x 2.16" (16.8 x 1.4 x 5.5cm) | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 9.8 x 6.5 x 3.2" |
