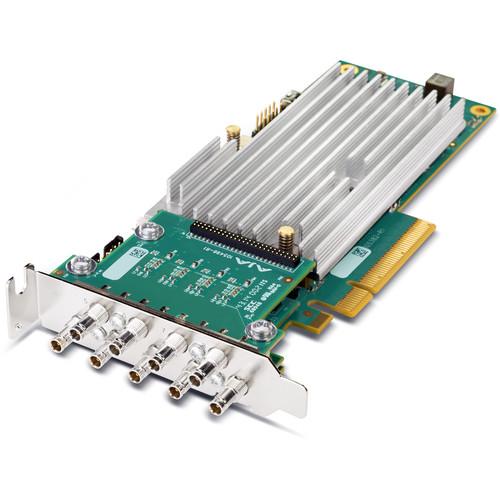

Product description The Corvid 44 BNC Multi-Format I/O Card from AJA increases your video and audio I/O capacity with 3G-SDI connectivity over full size BNC connectors. It allows you to configure each SDI connection individually as input or output and mix formats for up to 4 HD or SD channels on a single card. It also combines multiple SDI connections into a single 4K/UHD channel, allowing higher flexibility. - Multi-Stream, Multi-format PCIe I/O Card
-
- Allows AJA Developer Partner applications to access up to four simultaneous input and output streams on a single PCIe card, making it ideal for a wide variety of medium-density applications
- Flexible Multi-Format I/O
-
- Each BNC connection on the board with 3G-SDI can be set programmatically as either an input or output, and each can support a different video format, provided all formats use the same clock timing
- Connections can also be linked together to support Dual Link or 4K/UHD formats
- High Frame Rate Support
-
- Supports 4K (4096 x 2160) and UltraHD (3840 x 2160) High Frame Rate (HFR) workflows
- Working at frame rates of 48p, 50p, and 60p ensures smooth motion for 4K and UHD applications
- Multiple 720p and 1080p HD inputs and outputs are also supported at frame rates up to 50p and 60p, making Corvid 44 BNC Card flexible for different applications
- LTC and Reference input
-
- Provides one external, switchable LTC/Reference input connection on the back of the card
- A second LTC input is available on an internal header for providing additional reference to Corvid 44 BNC
- RS-422
-
- Built-in RS-422 connection is available as an external connection
- RS-422 allows control of external devices for frame accurate ingest and layoffs
- General
-
- PCIe Express Gen 2.0 8-lane
- 8/10-bit YCbCr and 12-bit RGB frame buffer formats
- Two independent Mixer/Keyer widgets
- Analog Color Black or HD tri-level sync
- Airflow across the board
- Powerful Platforms for Development Partners
-
- AJA's Developer Program allows partner companies to incorporate AJA products into their systems
- By utilizing existing, proven video I/O devices, Developer Partners leverage AJA's expertise to develop and support these technologies, saving money and getting their integrated products to market quickly
In the Box AJA Corvid 44 BNC Flexible Multi-Format I/O Card (Fanless) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA Corvid 44 BNC Flexible Multi-Format I O Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA CORVID 44 FANLESS Specs | Video Formats | (DCI 4K) 4096 x 2160p: 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
(UHD 4K) 3840 x 2160p: 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
(2K) 2048 x 1080p: 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
(2K) 2048 x 1080PsF: 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
(HD) 1080p: 23.98, 24, 25, 29.97, 30, 50 A/B, 59.94 A/B, 60 A/B
(HD) 1080PsF: 23.98, 24, 25, 29.97, 30
(HD) 1080i: 25, 29.97, 30
(HD) 720p: 50, 50.94, 60
(SD) 625i: 25
(SD) 525i: 29.97 | | Video Input Digital | 4 x 3G-SDI BNC | | Video Output Digital | 4 x 3G-SDI BNC | | Audio Input Digital | 16-Channel 24-bit SDI embedded, 48 kHz synchronous | | Audio Output Digital | 16-Channel 24-bit SDI embedded, 48 kHz synchronous | | Power | 17 W typical, 19 W maximum | | Environmental | Operating Altitude: <10,000' (3,000 m) | | Dimensions (W x D x H) | 0.7 x 6.6 x 2.7" (1.8 x 17 x 69 cm) | | Weight | 0.4 lb (0.2 kg) | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 9.7 x 6.4 x 3.2" |
