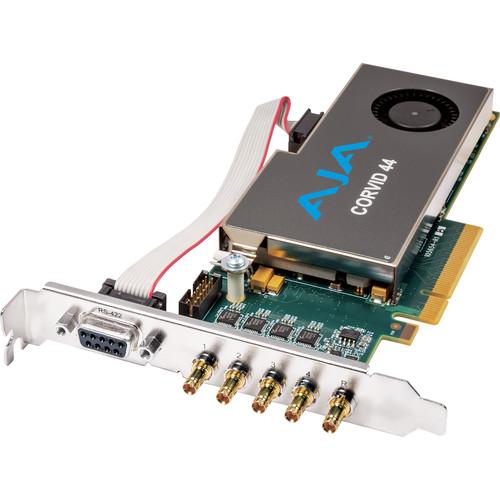

Product description The Corvid 44 Standard-Profile 8-Lane PCIe Express Gen 2.0 Card (With Cable) from AJA Video Systems allows AJA Developer Partner applications to access up to four simultaneous input and output streams on a single PCIe card, making it suitable for a wide variety of medium-density applications. Each BNC connection on Corvid 44 can be set programmatically as either an input or output, and each can support a different video format, provided all format use the same clock timing. Connections can also be linked together to support Dual-Link or DCI and UHD 4K formats. The card also supports High Frame Rate (HFR) workflows. Working at frame rates of 48p, 50p and 60p ensure smooth motion for the most demanding 4K and UHD applications. - Allows AJA Developer Partner applications to access up to four simultaneous input and output streams on a single PCIe card, making it ideal for a wide variety of medium-density applications
- Each BNC connection can be set programmatically as either an input or output and each can support a different video format, provided all format use the same clock timing. Connections can also be linked together to support Dual-Link or DCI/UHD 4K formats
- Supports DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160) High Frame Rate (HFR) workflows
- Working at frame rates of 48p, 50p, and 60p ensures smooth motion for the most demanding 4K and UHD applications
- High frame rates are not limited to 4K with Corvid 44; multiple 720p and 1080p HD inputs and outputs are also supported at frame rates up to 50p and 60p, making Corvid 44 flexible for your current and future needs
- Provides one external, switchable LTC/Reference input connection on the back of the card. A second LTC input is available on an internal header for providing additional reference to Corvid 44 card
- Built-in RS-422 connection is available as an external connection on the Corvid 44. RS-422 allows control of external devices for frame-accurate ingest and layoffs
- 3G input/output for High Frame Rate (HFR) support
- 8/10-bit YCbCr and 12-bit RGB frame buffer formats
- 2 independent mixer/keyer widgets
- Analog color black or HD Tri-Level Sync
- 4 independent, bi-directional BNC I/O connections
- 16-channel embedded audio per connection
- Switchable LTC/Reference input connection
- Standard-profile (full-height) card
- LTC input on internal header
In the Box AJA Corvid 44 Standard-Profile 8-Lane PCIe Express Gen 2.0 Card (With Cable) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA Corvid 44 Standard-Profile 8-Lane PCIe Express Gen 2.0 Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA CORVID 44-T Specs | Video Input/Output | 4 x 3G-SDI BNC; bi-directional | | Audio Input/Output | 16-channel 24-bit SDI embedded, 48 kHz synchronous | | Video Formats | DCI 4K: 23.98, 24, 25, 29.97, 30, 48, 50, 59.94, & 60 fps
UHD 4K: 23.98, 24, 25, 29.97, 30, 48, 50, 59.94, & 60 fps2048x1080p: 23.98, 24, 25, 29.97, 30, 48, 50, 59.94, & 60 fps
2048x1080PsF: 23.98, 24, 25, 29.97, 30, 48, 50, 59.94, & 60 fps1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, & 60 fps
1080PsF: 23.98, 24, 25, 29.97, & 30 fps
720p: 50, 50.94, 60, 1080i 25, 29.97, & 30 fps625i: 25 fps
525i: 29.97 fps | | Reference | Analog Color Black or HD Tri-Level sync | | Processing | 4 x Frame Stores (In or Out)
4 x Color Space Converters
2 x Mixer/Keyer widgets
4 x 1D LUTs
4 x Dual-Link In
4 x Dual-Link Out
4 x 16-channel embedded audio engines | | Dimensions (L x W x H) | 6.6 x 0.72 x 4.2" (167.65 x 18.47 x 106.7 mm) | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 9.8 x 6.4 x 3.3" |
