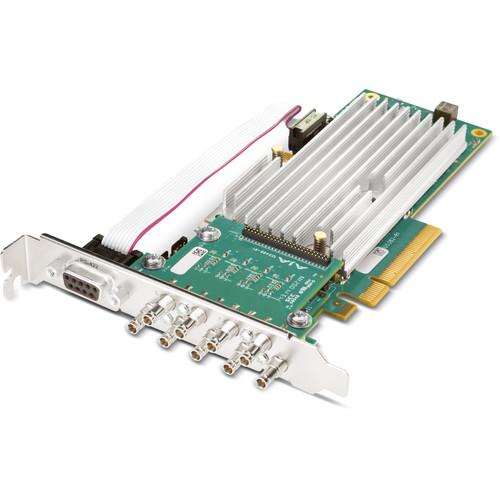

Product description The Corvid 88 8-Channel 3G-SDI I/O Card from AJA is an 8-lane PCIe 2.0 card that delivers multi-channel video and audio input/output. It accepts up to eight SD/HD/3G-SDI signals on DIN 1.0/2.3 connections which can be programmed as either input or output, with each able to support a different video format -- provided all formats use the same clock timing. Connections can also be linked together to support Dual Link HD-SDI for high frame-rate 1080p/2K and Quad Link 3G-SDI for Ultra HD (3840 x 2160) / DCI 4K (4096 x 2160) formats.
The Corvid 88 supports 24-bit embedded SDI audio using four independent 16-channel 48 kHz embedded audio engines. For control, an external RS-422 port is provided which allows control of external devices for frame accurate ingest and layoffs. Other features include four independent Mixer/Keyer widgets and a switchable LTC/reference input for Analog Color Black or HD Tri-Level Sync. A second LTC input is available on an internal header for providing additional reference to the Corvid 88.
Part of AJA's Corvid line of products, the Corvid 88 is designed for integration into solutions offered by third-party developers including Colorfront, Codex, Quantel, Autodesk, and others. It allows AJA Developer Partner applications to access up to eight simultaneous input and output streams on a single PCIe card, making it ideally suited for ingest and playout servers. -
- PCIe 2.0, 8-lane
- Up to eight independent SD/HD/3G-SDI channels on DIN 1.0/2.3 connectors
- Supports SD, HD, 2K, Ultra HD, and DCI 4K resolutions
- Connections can be linked to support Dual Link
- High-frame up to 50p and 60p
- 8/10-bit YCbCr and RGB frame buffer formats
- Frame Stores (In or Out)
- Four independent Mixer/Keyer widgets
- Four independent, 16-channel, 48 kHz, SDI-embedded audio I/O engines
- Analog Color Black or HD Tri-Level Sync
- Color Space converters
- 8 x 1D LUTs
- Airflow across the board
- External RS-422 port
In the Box AJA Corvid 88 8-Channel 3G-SDI I/O Card Fanless Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA Corvid 88 8-Channel 3G-SDI I O Card Fanless in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA CORVID 88 FANLESS Specs | Interface | 8-lane PCIe 2.0 | | Video Input / Output | 8 x SD/HD/3G-SDI, DIN 1.0/2.3 connectors (each switchable to input or output)
Note: Channels must use the same master clock (e.g. 29.97 and 59.94) | | Audio Input / Output | 16-channel, 24-bit, SDI-embedded
48 kHz synchronous | | SDI Format Support | Single Link SD/HD-SDI
Single Link 3G-SDI (for high frame rate 1080p/2K)
Dual Link HD-SDI (for high frame rate 1080p/2K)
Quad Link 3G-SDI (for high frame rate UHD/4K) | | Video Formats | SD
525i 29.97
625i 25
HD
720p 50, 59.94, 60
1080i 25, 29.97, 30
1080PsF 23.98, 24, 25, 29.97, 30
1080p 23.98, 24, 25, 29.97, 30, 50 (A/B), 59.94 (A/B), 60 (A/B)
2K
2048 x 1080PsF 23.98, 24, 25, 29.97, 30
2048 x 1080p 23.98, 24, 25, 29.97, 30
4K
UHD 3840 x 2160p 23.98, 24, 25, 29.97, 30, 48, 50, 59.94, 60
DCI 4096 x 2160p 23.98, 24, 25, 29.97, 30, 48, 50, 59.94, 60
Note: "A/B" refers to Level A and Level B of SMPTE specs, where Level A is Single Link 3G and Level B is Dual-Link HD-SDI. | | Frame Buffer | 8/10-bit YCbCr and RGB | | Reference | 1 x LTC/Reference in, external
Additional LTC/Reference input is available on an internal header
Analog Color Black or HD Tri-Level sync | | Control | 1 x RS-422 (external connection) | | Power | 21 W typical, 23 W maximum | | Dimensions (L x W x H) | 6.60 x 0.73 x 2.71" (167.65 x 18.47 x 68.90 mm) | | Weight | 6.4 oz / 200 g | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 9.7 x 6.4 x 3.3" |
