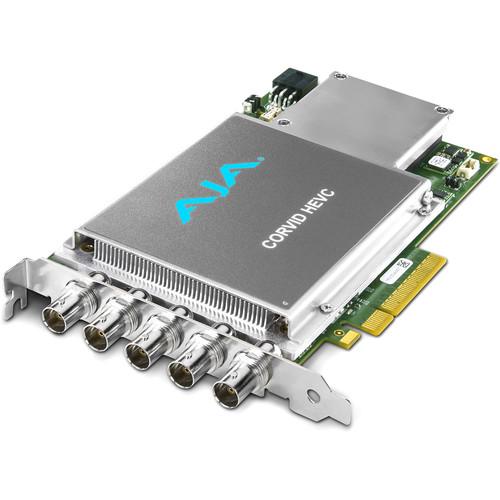

User Manual for AJA Corvid HEVC Video Encoder Card Click to enlarge the picture
Contents of the user manual for the AJA Corvid HEVC Video Encoder Card
- Product category: Computer Hardware AJA
- Brand: AJA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AJA Computer Hardware
|
User manual for the AJA Corvid HEVC Video Encoder Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AJA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AJA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AJA product will considerably shorten its lifespan!
|
Product description The ATX-powered AJA Corvid HEVC Video Encoder Card is a PCIe 2.0 8-lane card offering real-time, low-latency HEVC encoding at up to DCI 4K/59.94 resolution. The card features four 3G-SDI inputs supporting 16-channel, 24-bit embedded audio. Using AJA's SDK, developers can integrate the card directly into Windows and Linux applications using a flexible API. The ATX-powered version requires ATX 6-pin power from a computer's power supply. In the Box AJA Corvid HEVC Video Encoder Card (ATX-Powered) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA Corvid HEVC Video Encoder Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA Corvid HEVC Specs | Video Formats | The Following Formats Are Recognized by the Card's SDI Inputs:
4K (Quadrant or Sample Interleave):
4096 x 2160 at 59.94 A/B, 50 A/B, 48 A/B, 30, 29.97, 25, 24, 23.98
3840 x 2160 at 59.94 A/B, 50 A/B, 48 A/B, 30, 29.97, 25, 24, 23.98
2K (Cropped to 1920 x 1080 Before Encoder):
2048 x 1080 at 60 A/B, 59.94 A/B, 50 A/B, 48 A/B, 30, 29.97, 25, 24, 23.98
2048 x 1080PsF at 30, 29.97, 25, 24, 23.98
HD:
1080p at 60 A/B, 59.94 A/B, 50 A/B, 30, 29.97, 25, 24, 23.98
1080PsF at 30, 29.97, 25, 24, 23.98
1080i at 60, 59.94, 50
720p at 60, 59.94, 50
SD:
625i at 50
525i at 59.94
The Following Formats Are Supported for File-Based Encoding but Are Not Recognized as SDI Inputs:
720p at 29.97, 25, 24
625p at 50
525i at 60
525p at 60, 59.94 | | Video Input | 4 x 3G-SDI BNC | | Audio Input | 16-Channel 24-Bit SDI Embedded, 48 kHz Synchronous | | Compression | HEVC
HEVC Profile: Main/Main 10
HEVC Tier: Main/High
HEVC Level: 1.0/2.0/2.1/3.0/3.1/4.0/4.1/5.0/5.1
Bit Rate 4K Format:
3 - 128 Mb/s
Bit Depth:
8- or 10-Bit
Chroma Sampling:
4:2:2/4:2:0 | | Bit Rate Control | CBR/VBR | | Power | Requires ATX 6-Pin from Computer Power Supply | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -40 to 158°F / -40 to 70°C (With Power Off) | | Relative Humidity | 10-90% Non-Condensing | | Operating Altitude | <10,000' / 3050 m | | Dimensions | 0.9 x 7.5 x 5" / 2.2 x 19 x 13 cm | | Weight | Approx. 1 lb / 0.5 kg |
