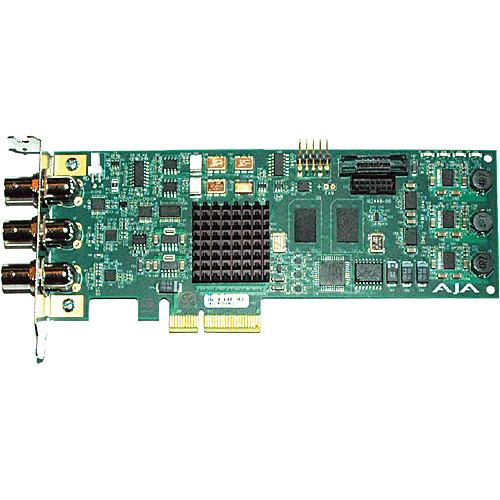

Product description The AJA Corvid LP PCIe 4x Card is an 8/10 bit uncompressed SD/HD I/O PCI express 4-lane card providing SDI/HD-SDI input and output. It supports SD and HD x 1080p60 video formats providing 1080 lines of resolution with 60 progressive frames-per-second. The low profile card includes a 16-channel 48kHz SDI embedded audio I/O engines and a reference input for analog color black or HD tri-level sync. The card also has a separate genlock/LTC (Linear Time Code) input and offers true broadcast-level performance within your systems and applications Sharing a common API (Application Programming Interface), the Corvid LP PCIe 4x is compatible with multiple operating systems like Windows and Linux via its SDK (Software Development Kit). The common API cuts down on development time when working on multiple platforms and even multiple AJA cards. - 8/10 bit uncompressed SD/HD I/O PCI express 4- lane card
- SDI/HD-SDI input, SDI/HD-SDI output
- Compatible with SD/HDx1080p60 video formats providing 1080 lines of resolution with 50/60 progressive frames-per-second
- 16-channel SDI embedded audio I/O, 24 bit 48kHz
- Analog color black/HD tri-level sync for video output synchronization
- Genlock - video output of 1 source, or a specific reference signal, is used to synchronize other sources together to ensure the coincidence of signals in time at a combining/mixing/switching point
- LTC - encoding of SMPTE time code data as an audio signal provides an even number of AC transitions in each time code frame
- Multiple OS support - all Windows 7 platforms, all Windows Vista platforms, all Windows XP platforms, Linux 32 bit, and Linux 64 bit
- Common API for minimal development time
UPC: 812321030877 In the Box AJA Corvid LP PCIe 4x Card (Low Profile) 3-Year Warranty Spec Sheet PDF 1.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA Corvid LP PCIe 4x Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA Corvid LP Specs | Card Type | PCI Express 4 lane LP (low profile) | | Video Formats | SD:
525i 29.97
625i 25
HD:
720p 50
720p 59.94
720p 60
1080i 25
1080i 29.97
1080i 30
1080p 23.976
1080psf 23.976
1080p 24
1080psf 24
1080p 25
1080psf 25
1080p 29.97
1080psf 29.97
1080p 30 | | Reference | Analog Color or HD Tri-level sync | | Video Input | Digital:
HD-SDI/SDI, SMPTE-259/292/296 | | Video Output | Digital:
HD-SDI/SDI, SMPTE-259/292/296 | | Audio Input | Digital:
16-channel 24-bit SDI embedded, 48kHz synchronous | | Audio Output | Digital:
16-channel 24-bit SDI embedded, 48kHz synchronous | | Compatible Operating Systems | Windows Vista 32-bit
Windows Vista 64-bit
Windows XP 32-bit
Windows XP 64-bit
Linux 32-bit
Linux 64-bit | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 9.7 x 6.9 x 3.0" |
