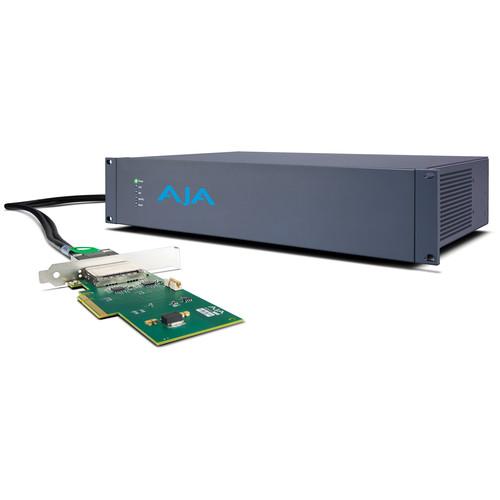

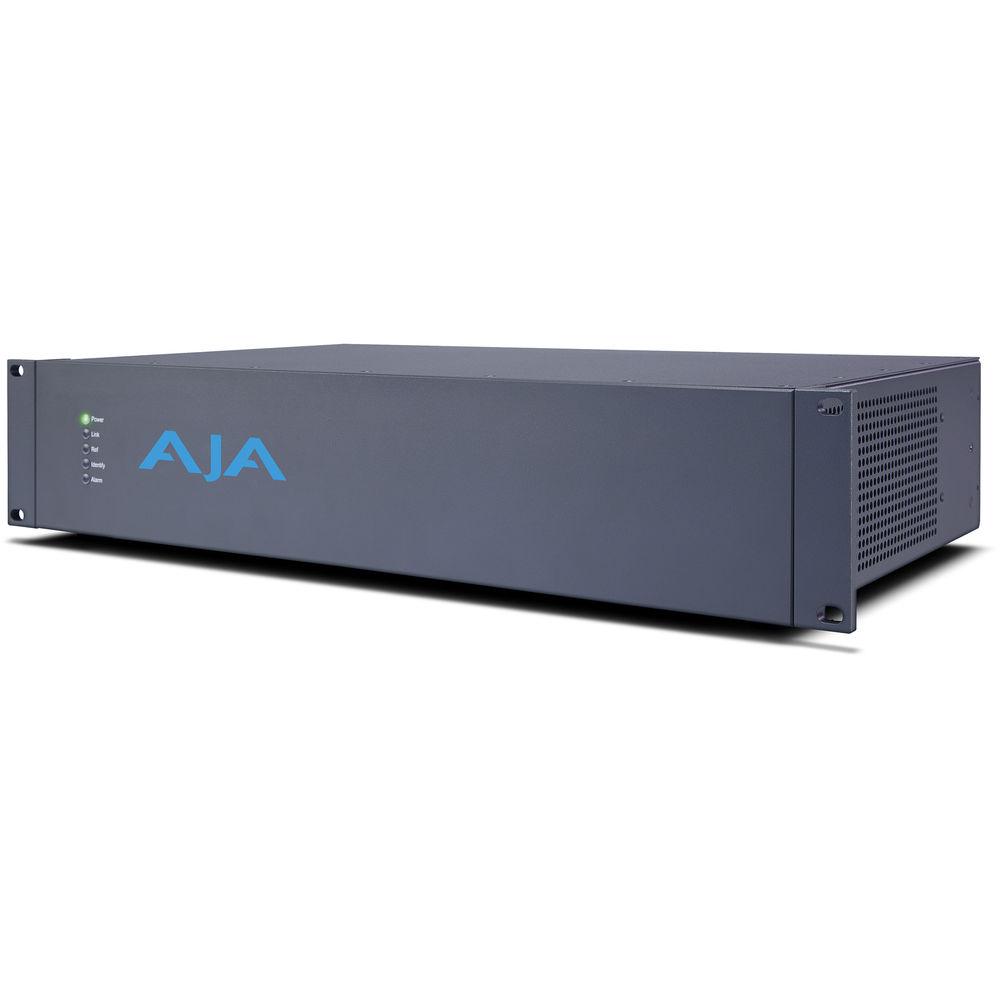

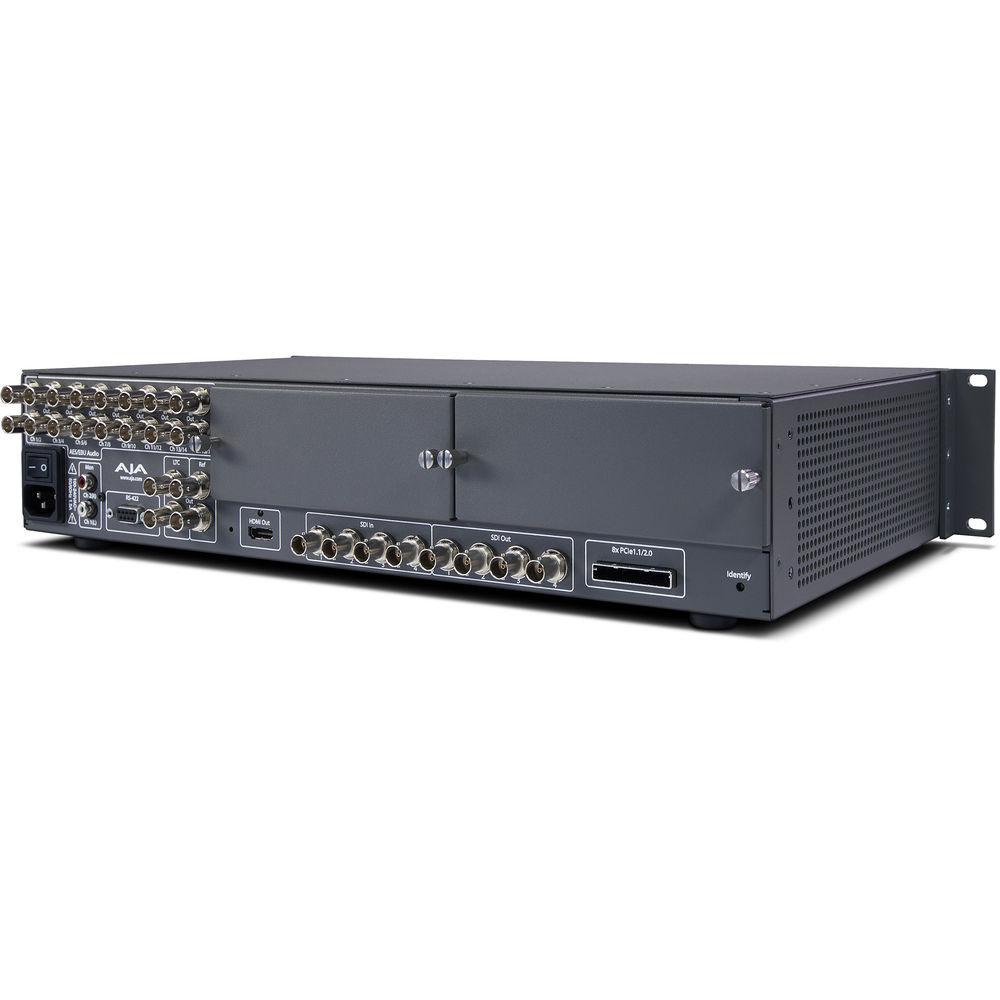

Product description The Corvid Ultra External 2RU Chassis Video Processor from AJA supports video formats from SD through to 4K at up to 60 fps. The processor can work with high-frame rate material at 48p or 60p, full resolution 4K or stereoscopic files, the AJA TruScale arbitrary scaler, onboard Debayering, and two expandable card bays that allow developers to tailor Corvid Ultra to provide maximum performance and the high-quality for their most demanding applications. -
- 3G SDI, 4K HDMI output, embedded and AES audio (2-channel analog audio monitoring)
- Supports video formats from SD through to 4K at up to 60 fps
- Color depth up to 16-bit half float RGBA with full color space conversion for onboard Debayering for RAW workflows
- Supports for AJA TruScale for high-quality at any resolution

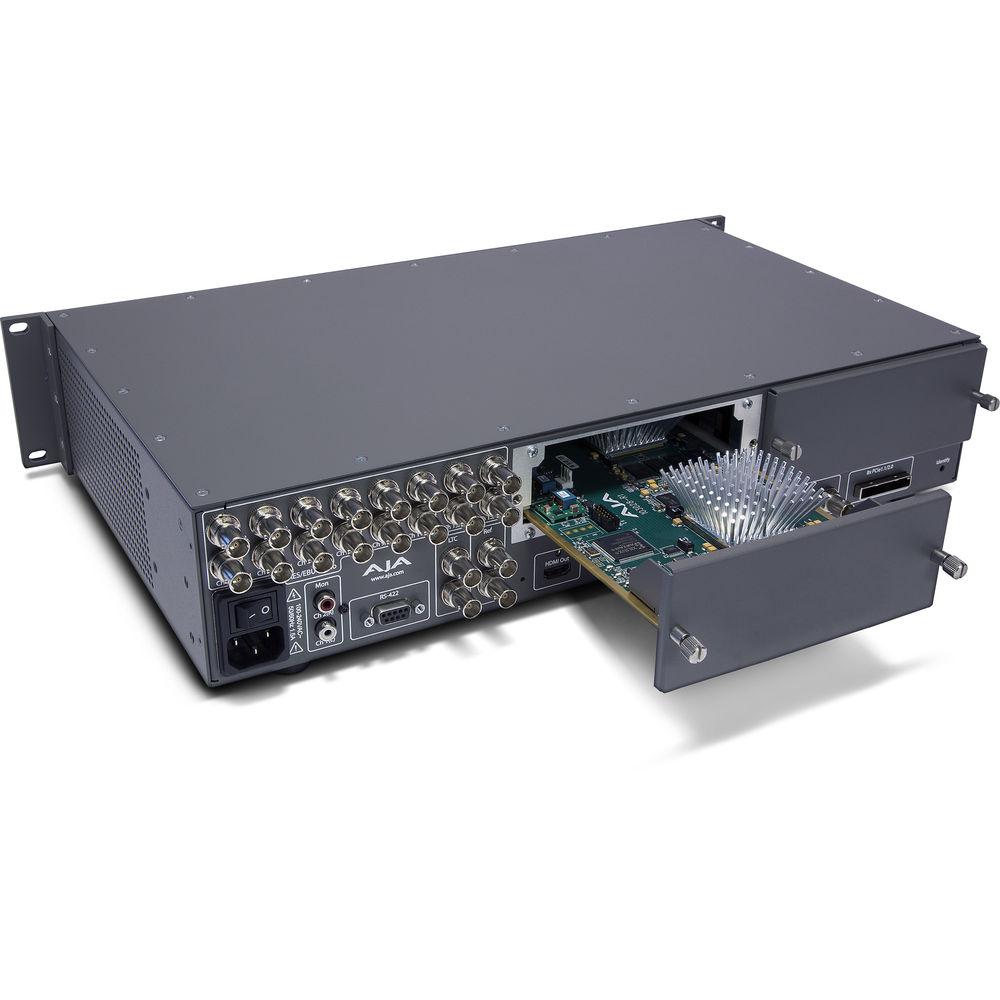

- Two 4K-capable expansion slots for additional I/O or processing
- Fast 8x PCIe 2.0 host connection provides 2500+ MB/s in each direction
- Supports peer-to-peer transfers via DMA
- 2RU form factor
In the Box AJA Corvid Ultra External 2RU Chassis Video Processor Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA Corvid Ultra External 2RU Chassis Video Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA CORVID-U Specs | Video Formats | 4K:
3840 x 2160p 23.98, 24, 25, 29.97, 30, 48, 50, 59.94, 60
4096 x 2160p 23.98, 24, 25, 29.97, 30, 48, 50, 59.94, 60
2K:
2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 60
2048 x 1080PsF 23.98, 24
HD:
720P 50, 59.94, 60
1080i 25, 29.97, 30
1080PsF 23.98, 24, 25, 29.97, 30
1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
SD:
525i 29.97
625i 25 | | Supported Pixel Formats | 8-Bit:
YCbCr 4:2:2
RGB
RGBA
10-Bit:
YCbCr 4:2:2
RGB
RGBA
12-Bit:
YCbCr 4:2:2
RGB
RGBA
XYZ
XYZA
16-bit:
RGB | | Video Inputs | 3G-SDI, SMPTE-259/292/296/424, 8- or 10-bits
Single Link 4:2:2 or 4:4:4 (1 x BNC)
Dual Link HD 4:4:4 (2 x BNC)
4K/UltraHD 4:4:4 (4 x BNC)
Canon C500 RAW data | | Video Outputs | 3G-SDI, SMPTE-259/292/296/424, 8- or 10-bits
Single Link 4:2:2 or 4:4:4 (1 x BNC)
Dual Link HD 4:4:4 (2 x BNC)
4K/UltraHD 4:4:4 (4 x BNC)
HDMI v2.0b, 30/36 bits/pixel, RGB or YUV, 2.25 Gbps, SD, HD, 1080p-50/60, 4K, 2K stereoscopic (full-size HDMI) | | Audio Inputs | Digital:
16-channel 24-bit SDI embedded, 48 kHz synchronous
16-channel 24-bit AES/EBU, 48 kHz synchronous (8 x BNC) | | Audio Output | Digital:
16-channel 24-bit SDI embedded, 48 kHz synchronous
16-channel 24-bit AES/EBU, 48 kHz synchronous (8 x BNC)
Analog:
2-channel unbalanced output (2 x RCA) | | Reference | Analog Reference Input (BNC)
Analog Reference Output, loop through (BNC) | | Timecode | LTC timecode input and output (via 1 x BNC each) | | Machine Control | RS-422, Sony 9-pin protocol
9-pin D-connector pinout | | Host Connection | 8-lane PCIe 2.0
9.8' interconnect cable
2500+ Mbps (bi-directional) | | Processing | 4 x Capture frame stores
4 x Playback frame stores
8 x Color Space Converters (high precision)
4 x 1D LUTs (12-bit)
4 x Debayering Widgets | | Dimensions (W x H x D) | 17.2 x 3.37 x 11.6" (43.8 x 8.57 x 29.5 cm) |
