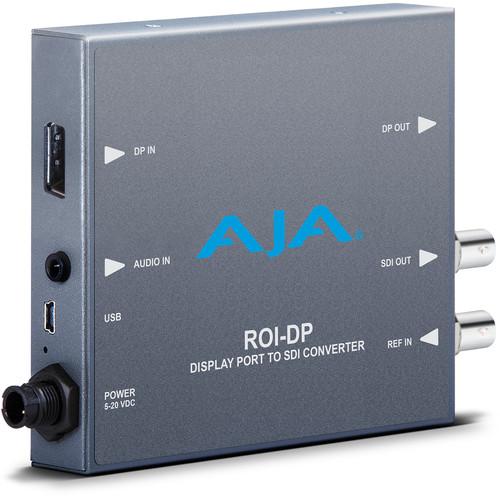

Product description Efficiently incorporate DisplayPort computer signals into the video world with this compact ROI-DP DisplayPort to SDI Mini-Converter, from AJA. Using a simple-to-use free-download MiniConfig application (Mac/PC), select only the region of interest (portion of the image) you want converted, designate how you want the region scaled, and assign the aspect ratio and frame-rate conversion you want.
This converter also features a 3.5mm audio input for connecting separate audio to be embedded, a genlock reference input for locking the SDI signal output, and a DisplayPort loop-through output for keeping a connection to a local DisplayPort monitor during the SDI extract. - Key Features
-
- DisplayPort to SDI conversion
- Region of Interest selection and scaling
- DisplayPort loop through
- Separate 3.5mm audio input / audio embedding
- Aspect ratio conversion
- Genlock input
- Configure via free-download MiniConfig software
- Universal power supply included
UPC: 892448000168 In the Box AJA DisplayPort to SDI Mini-Converter with ROI Scaling DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters xbxzfvcdvwe Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA DisplayPort to SDI Mini-Converter with ROI Scaling in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA ROI-DP Specs | Input | 1 x DisplayPort
1 x 3.5 mm audio
1 x Genlock Reference
1 x USB port for connection to MiniConfig software and updates | | Output | 1 x 3G/HD/SD-SDI on BNC
1 x DisplayPort loop-through | | Audio | 2-channel audio via 3.5 mm audio input
8-channel embedded audio from DisplayPort input | | Power | 5-18 VDC (universal power supply included) | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 10.1 x 5.7 x 3.7" |
