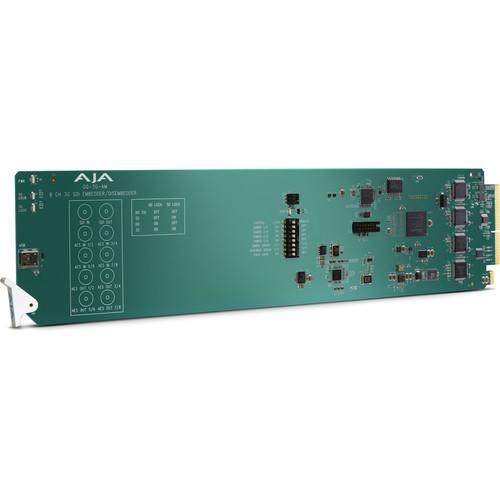

Product description The Eight-Channel AES Audio Embedder/Disembedder from AJA supports 3G-SDI input and output up to 1080p/60. A 10-BNC rear Open Gear connector module is included. It provides a 3G-SDI input and 3G-SDI output with four AES BNC connectors in each direction. It automatically detects and configures to the input video standard. AES inputs are sample rate converted (SRC) to 48 kHz synchronous to the video input. Audio disembedding is always functional, providing four AES outputs. Audio embedding is user selectable, on a channel-pair basis, to either embed input AES audio or pass 3G-SDI input audio. Its simple user controls allow channel enabling and mapping. - Compatibility
- DFR-8321 and OG3 openGear frames
- Features
-
- Local and remote modes
- Pass or drop non-audio HANC packets
- Configure via USB and mini-configuration software or DIP switch
- Hot swap capable
UPC: 812321030273 In the Box AJA Eight-Channel AES Audio Embedder/Disembedder BNC Rear Card Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA Eight-Channel AES Audio Embedder Disembedder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA OG-3G-AM Specs | Video Formats | 1 x 3 Gb SDI (level A or B)- (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080i 25, 29.97, 30
- (HD) 1280 x 720p 50, 59.94, 60
1 x 1.5 Gb SDI- (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
- (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080i 25, 29.97, 30
- (HD) 1280 x 720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1 x 270 Mb SDI | | Video Input Digital | 1 x 3G-SDI BNC, SMPTE-259/292/424 | | Video Output Digital | 1 x 3G-SDI BNC, SMPTE-259/292/424 | | Audio Input Digital | 4 x BNC | | Audio Output Digital | SDI embedded audio, 24-bit, 8-Channel
4 x BNC | | Data Format | Audio
AES3 2003
SMPTE ST 337 | | Audio Converters | 24-bit | | Embedded Audio | SDI embedded audio, 24-bit, 16-channel
SMPTE ST 272 (SD): 20-bit, 48 kHz synchronous
SMPTE ST 299 (3G/HD): 24-bit, 48 kHz synchronous
Incoming embedded audio can be passed, removed, or overridden 2048 x 1080p/PsF 29.97 and 30 formats support a maximum of 8-channels embedded audio. | | Audio Latency | Embed Path
Time measured between audio input and video output connector
1500 usec (SRC On)
400 usec (SRC Off)
Disembed Path
Time measured between video input and audio output connector
210 usec | | User Interface | AJA Mini-Config Software (via USB on front panel) | | Slots | Two slots required for each card | | Power | openGear frame compatible, 5.0 W max per card | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 140°F (-40 to 60°C) | | Operating Relative Humidity | 10 to 90% non-condensing | | Operating Altitude | <10,000' (<3,000 m) | | Size | openGear standard form-factor, front slot, and rear card
Rear Card: OG-10-BNC-Rear
10 x BNC, SMPTE-259/292/424 | | Weight | 0.5 lb (0.3 kg) | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 15.2 x 7.8 x 3.7" |
