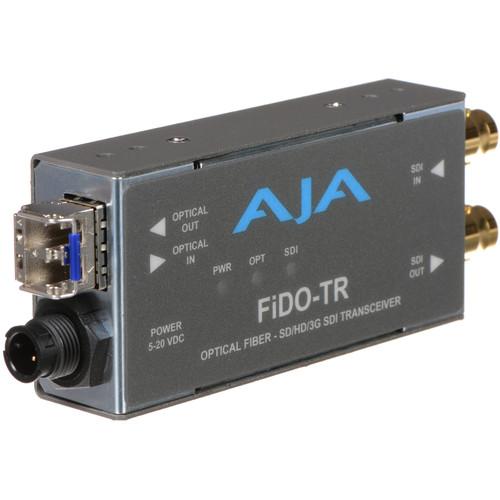

User Manual for AJA FiDO Single-Channel 3G-SDI LC Fiber Transceiver Click to enlarge the picture
Contents of the user manual for the AJA FiDO Single-Channel 3G-SDI LC Fiber
- Product category: Video Extenders & Repeaters AJA
- Brand: AJA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AJA Video Extenders & Repeaters
|
User manual for the AJA FiDO Single-Channel 3G-SDI LC Fiber contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AJA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AJA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AJA product will considerably shorten its lifespan!
|
Product description Convert a 3G-SDI signal to an LC fiber output, or vice-versa an LC fiber signal to a 3G-SDI output, in resolutions up to 1080p. Transmit the fiber signal six miles at the max resolution over a single-mode fiber cable. AJA's FiDO-TR features one 3G-SDI input/output pair and one LC optical fiber input/output pair, in a compact body suitable for indoor and outdoor use. Use it with compatible devices, or pair it with a corresponding FiDO Mini Converter. - Key Features
-
- Small enough to fit behind a monitor, back of a rack, or directly on a camera rig
- Autodetection of video format
- Equalized and reclocked input
- ASI compatible
- Meets all relevant SMPTE specifications
- Locking power connector
- 2.5W power consumption
- Includes 5-20V worldwide power supply with four interchangeable plug adapters
UPC: 812321030013 In the Box AJA FiDO Single-Channel 3G-SDI / LC Fiber Transceiver DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters buesewqvafduzrsbaa Limited 5-Year Warranty User Manual PDF 784.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA FiDO Single-Channel 3G-SDI LC Fiber Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA FIDO-TR Specs | Formats | 3 Gbps, 1.5 Gbps, 270 Mbps (automatically selected based on input) | | Input | 1 x 3G/HD/SD-SDI on BNC
1 x LC optical fiber | | Output | 1 x 3G/HD/SD-SDI on BNC
1 x LC optical fiber | | Supported Resolution | Up to 1920 x 1080p | | Power | 5-20 VDC | | Power Consumption | 2.5 W | | Dimensions | 4.6 x 1.7 x 0.9" (12 x 4.3 x 2.4 cm) | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 10.0 x 7.5 x 2.75" |
