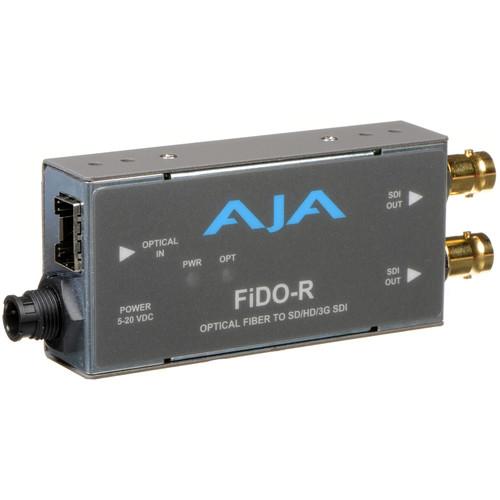

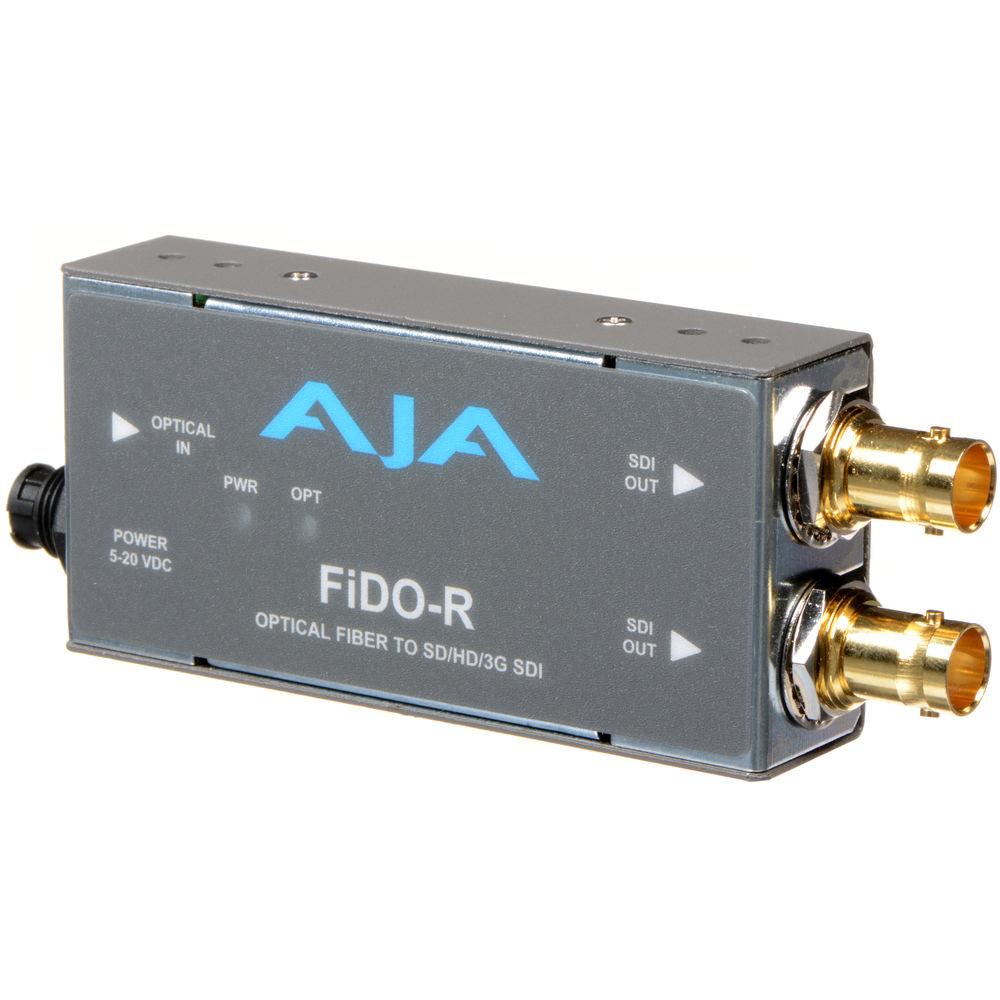

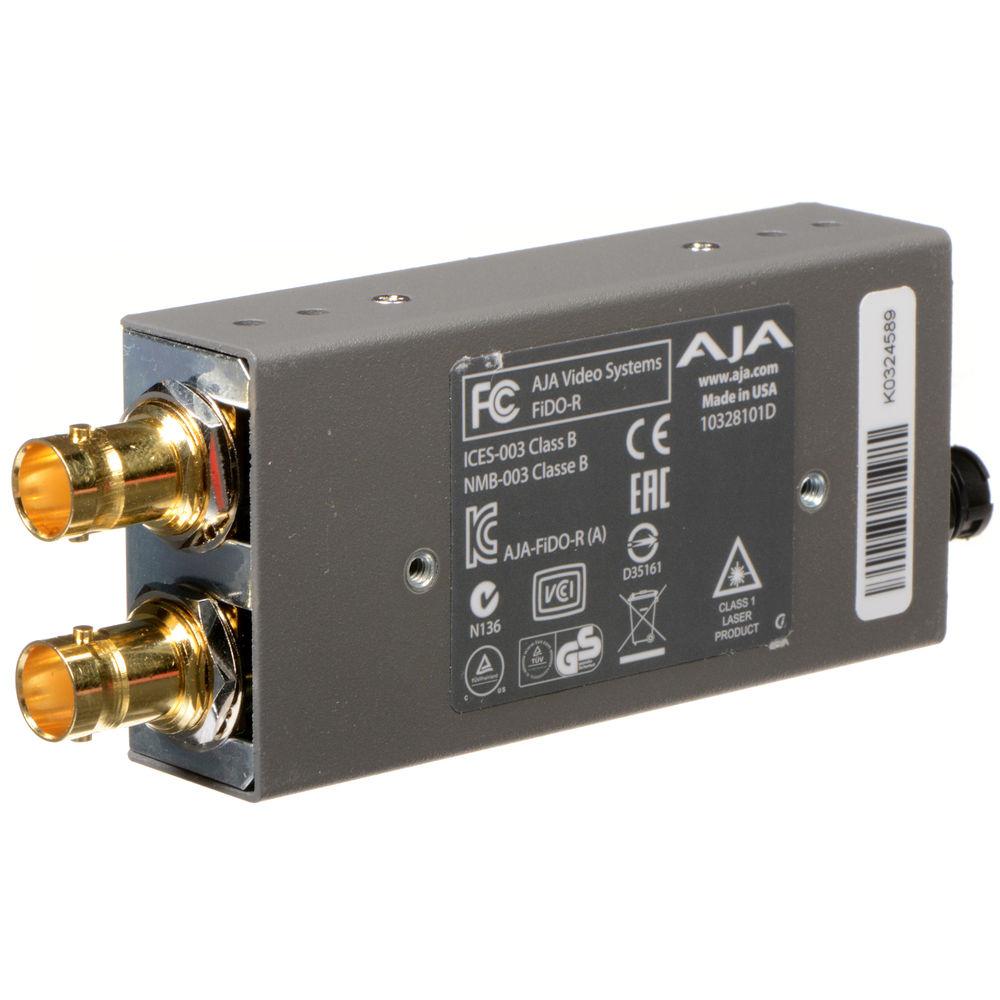

User Manual for AJA FiDO Single-Channel LC Fiber to 3G-SDI Mini Converter Click to enlarge the picture
Contents of the user manual for the AJA FiDO Single-Channel LC Fiber to
- Product category: Video Extenders & Repeaters AJA
- Brand: AJA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AJA Video Extenders & Repeaters
 |
User manual for the AJA FiDO Single-Channel LC Fiber to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AJA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AJA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AJA product will considerably shorten its lifespan!
|
Product description Convert an LC fiber signal to two simultaneously active 3G-SDI outputs in resolutions up to 1080p. Transmit the input signal from up to six miles away at the max resolution over a single-mode fiber cable. AJA's FiDO-R features one LC optical fiber input and two 3G-SDI outputs, in a compact body suitable for indoor and outdoor use. Use it with compatible devices, or pair it with a corresponding FiDO Mini Converter. This converter requires a separately available SFP module for proper connection to fiber optic cables. Check AJA's website for the appropriate SFP module for this unit. - Key Features
-
- Small enough to fit behind a monitor, back of a rack, or directly on a camera rig
- Autodetection of video format
- Equalized and reclocked input
- ASI compatible
- Meets all relevant SMPTE specifications
- Locking power connector
- 1.5W power consumption
- Includes 5-20V worldwide power supply with four interchangeable plug adapters
In the Box AJA FiDO Single-Channel LC Fiber to 3G-SDI Mini Converter (No SFP Module) DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters uabextucyzdasvwvzxetfexfweuqufyxeyau Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA FiDO Single-Channel LC Fiber to 3G-SDI Mini Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA FIDO-R-X Specs | Formats | 3 Gbps, 1.5 Gbps, 270 Mbps (automatically selected based on input) | | Input | 1 x LC optical fiber (requires separately available SFP module) | | Output | 2 x 3G/HD/SD-SDI on BNC | | Supported Resolution | Up to 1920 x 1080p | | Power | 5-20 VDC | | Power Consumption | 1.5 W | | Dimensions | 4.6 x 1.7 x 0.9" (12 x 4.3 x 2.4 cm) | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 7.2 x 5.7 x 4.2" |
