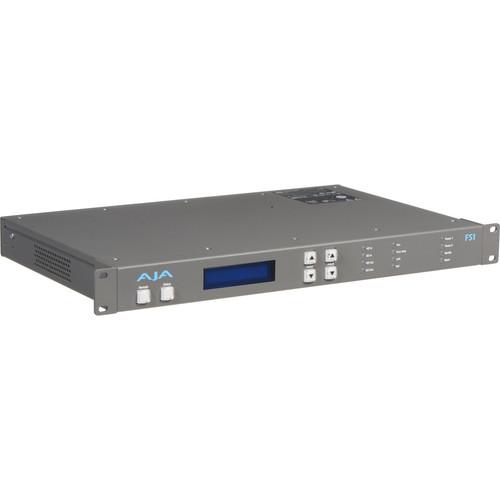

User Manual for AJA FS1 Frame Synchronizer and Bi-directional Converter - HD and SD, Digital and Analog Audio, Rackmountable Click to enlarge the picture
Contents of the user manual for the AJA FS1 Frame Synchronizer and Bi-directional
- Product category: Signal Converters AJA
- Brand: AJA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AJA Signal Converters
 |
User manual for the AJA FS1 Frame Synchronizer and Bi-directional contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AJA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AJA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AJA product will considerably shorten its lifespan!
|
Product description The AJA FS1 is a universal SD/HD audio/video frame synchronizer and converter. This converter offers an "everything in, everything out" architecture. The FS1 can work simultaneously with both HD and SD video for broadcast quality video and 24-bit audio. Featuring BNC connectivity. - Video Conversion
- The FS-1 can up or down-convert between SD and HD, and provide simultaneous HD and SD outputs.
- Cross Conversions
- Cross-conversions between HD formats are also supported, with simultaneous output of both formats.
- Audio
- The FS1 supports 8-channel AES, Balanced analog, or embedded audio offering the same any input to any output conversion.
- Closed Captioning
- The FS-1 supports closed captioning and the conversion of closed captioning between SD and HD formats.
UPC: 812321030020 In the Box AJA FS1 Frame Synchronizer and Bi-directional Converter - HD and SD, Digital and Analog Audio, Rackmountable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA FS1 Frame Synchronizer and Bi-directional Converter - HD and SD, Digital and Analog Audio, Rackmountable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

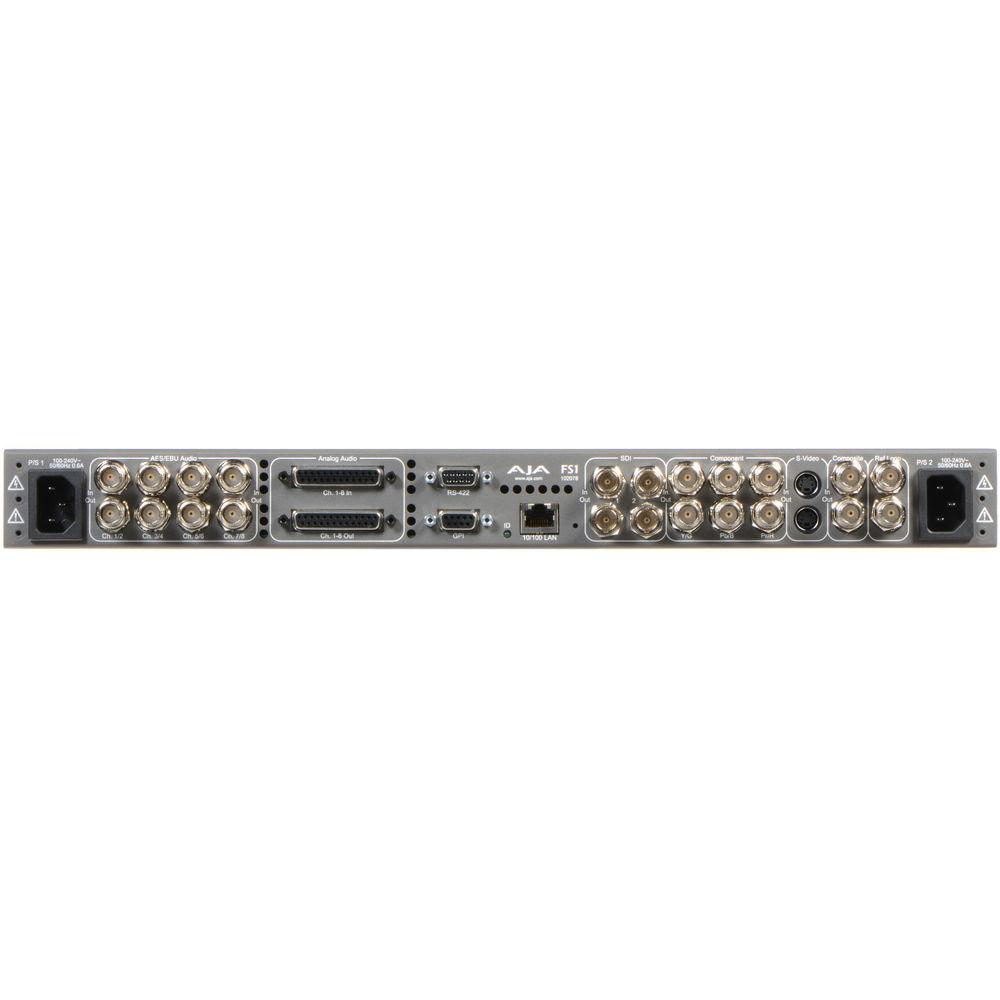

Technical parametersAJA FS1-R1 Specs | Input | Component Video, R-Y,B-Y,Y, on BNC connectors
Composite video, 1 Vpp @ 75 ohms, on a BNC connector
Y/C (S-Video), Y: 1 Vpp C: 0.7 Vpp @ 75 ohms, on a 4-Pin connector
AES/EBU Digital Stereo Audio x4, 8 channels, on an BNC connectors
SDI Digital Video x2, HD and SD, on BNC connectors
Sync Input, on a BNC connector
Balanced Stereo Audio x4, Analog, on a multi-pin connector
RS-232, remote control, on a 9-Pin connector
LAN or WAN, on an RJ-45 connector | | Output | Component Video, R-Y,B-Y,Y, on BNC connectors
Composite Video, 1 Vpp @ 75 ohms, on a BNC connector
Y/C (S-Video), Y: 1 Vpp C: 0.7 Vpp @ 75 ohms, on a 4-Pin connector
AES/EBU Digital Stereo Audio x4, 8 channels, on an BNC connectors
SDI Digital Video x2, HD and SD, on BNC connectors
Sync Input, on a BNC connector
Balanced Stereo Audio x4, Analog, on a multi-pin connector
RS-232, remote control, on a 9-Pin connector
LAN or WAN, on an RJ-45 connector | | Conversion | SDI Digital Video, AES/EBU Digital audio and Video to Analog Component, Composite and Y/C Video, Analog Stereo Unbalanced audio; also converts the opposite direction | | Control | Front Panel:

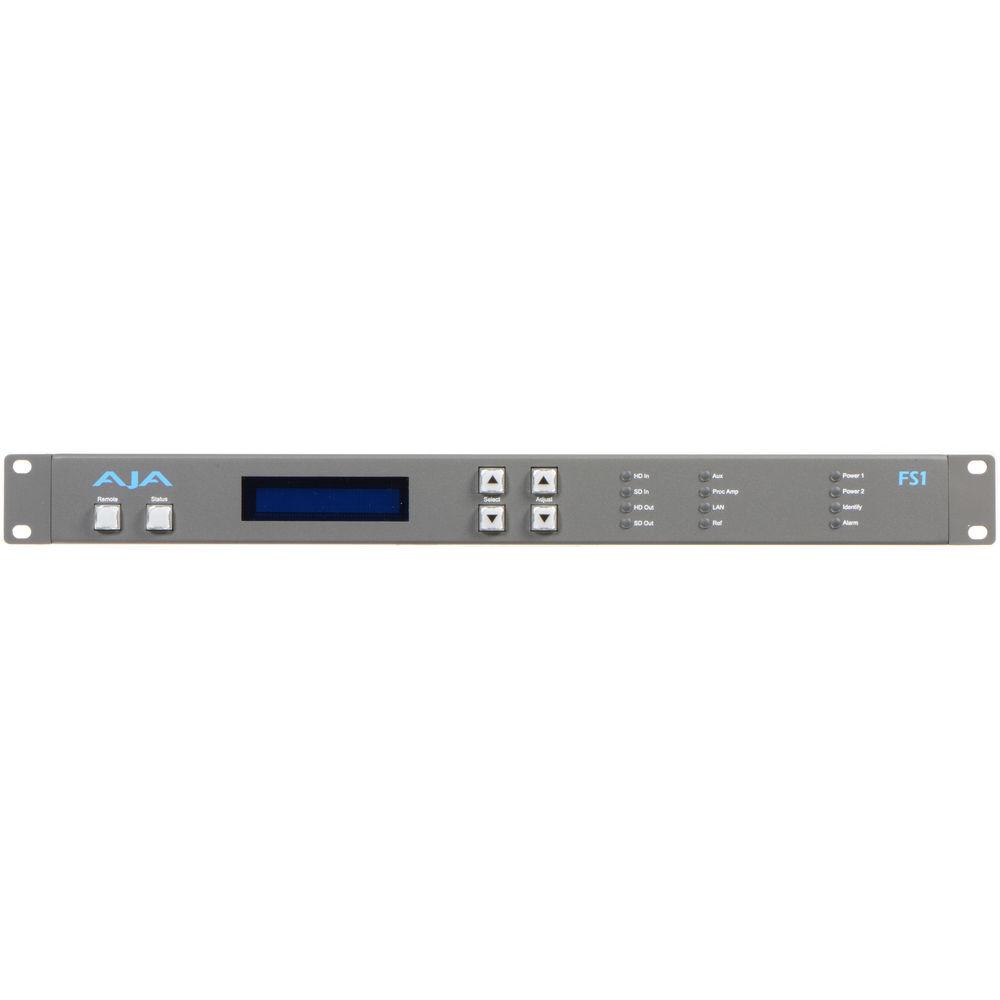

Menu LCD & Push Buttons for I/O Selection
Power On/Off | | Standards | NTSC & PAL | | Power Source | 120-240 VAC @ 50/60 Hz | | Dimensions (WxDxH) | 19 x 12 x 1.75"
48.26 x 30.4 x 4.45cm | | Weight | Not Specified by Manufacturer | | | | Package Weight | 10.5 lb | | Box Dimensions (LxWxH) | 21.05 x 18.3 x 8.8" |
