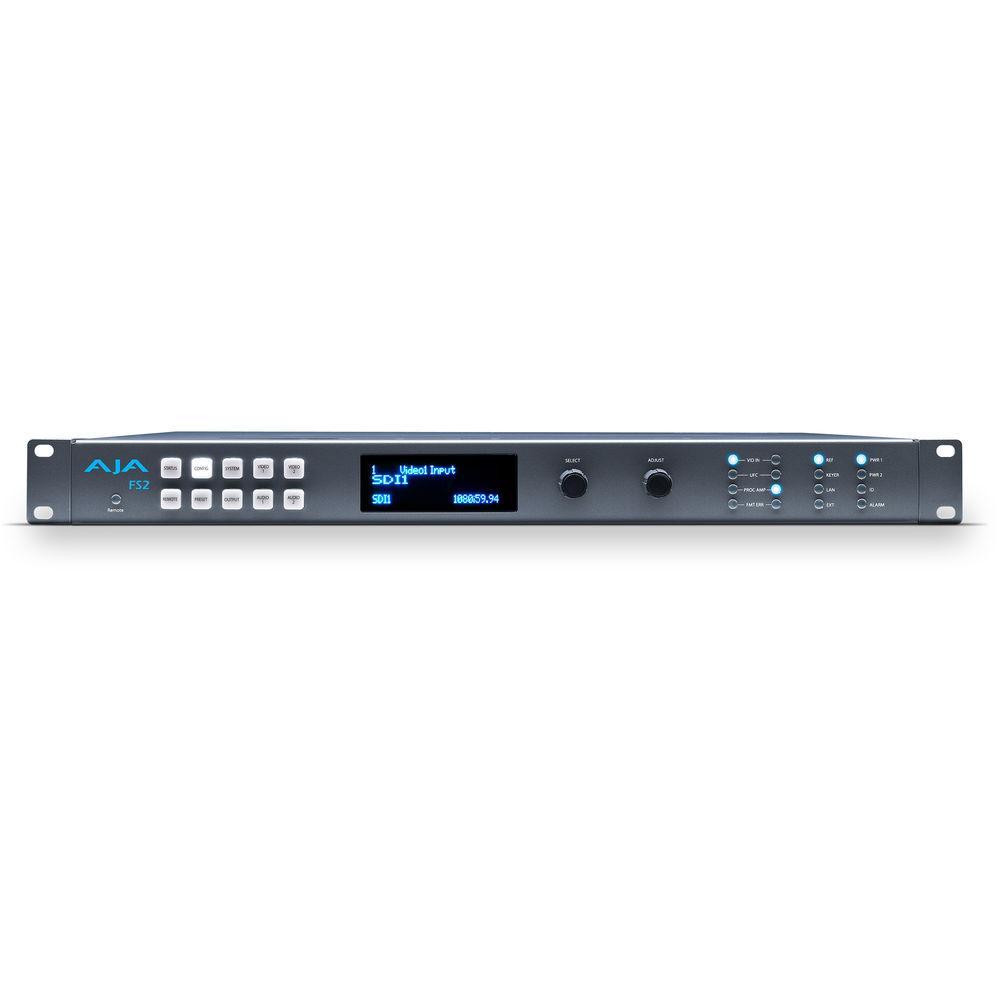

Product description The AJA FS2 Dual Channel Frame Synchronizer and Converter supports two independent streams of 3G/HD/SD 10-bit Broadcast quality video and two independent groups of 16-channel AES audio simultaneously. Each individual video channel supports analog component or composite, 3G/HD/SD-SDI, Dual-Link, and HDMI I/O inputs/outputs. You can use the FS2 as two separate frame synchronizers/format converters, or the two channels can be linked with the internal keyer to do the work of multiple devices, such as HD sidebar keying where both the video and background graphics are up converted and combined. Each channel features still-store, keyer, and video proc amp/color corrector offering more expansion options.
Supporting a wide range of broadcast formats, the FS2 Frame Synchronizer and Converter can be used for applications such as broadcast facilities, production trucks, video and audio signal conversion, adaptation, timing, and processing. It supports down-conversion between HD/SD and cross-conversion between HD formats, including 3G 1080p50/60 formats. In addition, the FS2 features full input and output signal routing that allows any I/O port to be assigned to any of the processing channels.
Featuring two audio processors, with each processor supporting 16-channel AES/EBU digital audio, 16-channel embedded audio, and 8-channel balanced analog audio, the FS2 offers variety of audio control. It supports closed captioning indicating presence of closed captioning data in the video signal. In addition, the unit also supports conversion between SD and HD formats (including full conversion between CEA-608 and CEA-708 caption standards).
AJA FS units are network ready and supports SNMP monitoring and web-based remote control. They can be connected to any Ethernet network via the built-in 10/100/1000 Mb/s Ethernet port, allowing control and configuration of multiple FS units from any web browser on a connected computer. Configurations can be saved and applied to multiple units, ensuring consistency and quick configuration in large installs. For integration with existing automation systems, the FS2 can also receive external GPI commands to trigger a variety of functions, from freezing an input source to switching between saved presets. - Key Features
-
- Supports two independent streams of 3G/HD/SD 10-bit Broadcast quality video and two independent groups of 16-channel AES audio simultaneously
- Individual FS2 video channel supports analog component or composite, 3G/HD/SD-SDI, Dual-Link, and HDMI I/O inputs/outputs
- Optional fiber inputs and outputs for cable runs up to 6.2 miles; supports single channel LC, single channel SC, and dual channel LCD connector modules
- You can use the FS2 as 2 separate Frame Synchronizers/Format Converters for convenient operation
- Can be used by combining channels like HD sidebar keying where both the video and background graphics are up converted and combined
- Each channel features still-store, keyer, and video proc amp/color corrector offering more expansion options
- Supports down conversion between HD/SD and cross conversion between HD formats (including 3G 1080p50/60 formats)
- Features full input and output signal routing that allows any I/O port to be assigned to any of the processing channels
- Dual video and audio processors
- Each processor supports 16-channel AES/EBU digital audio, 16-channel embedded audio, and 8-channel balanced analog audio
- Offers variety of audio control
- Supports closed captioning indicating presence of closed captioning data in the video signal
- Supports conversion between SD and HD formats (including full conversion between CEA-608 and CEA-708 caption standards)
- Supports SNMP monitoring and web-based remote control
- Can be used in any network
- Supports a 3rd-party remote Control Panel (available separately) that offers web-based remote control over 10/100/1000 Ethernet via an internal web server
- Supports a wide range of broadcast formats
- Can be used for applications such as broadcast facilities, production trucks, video and audio signal conversion, adaptation, timing, and processing
- Built-in front panel control
- Buttons and rotary knobs for changing settings
- Front panel LED status indicators for system monitoring
- Four isolated TTL GPI inputs and outputs for contact closure control
- Detects incompatible I/O format signal and notifies via alarms/status messages
- Up-Conversion
- Anamorphic: Full-screen
Pillar Box 4:3: Results in a 4:3 image in center of screen with black sidebars
Zoom 14:9: Results in a 4:3 image zoomed slightly to fill a 14:9 image with black side bars
Zoom Letterbox: Results in image zoomed to fill full screen
Zoom Wide: Results in a combination of zoom and horizontal stretch to fill a 16:9 screen; this setting can introduce a small aspect ratio change - Down-Conversion
- Anamorphic: Full-screen
Letterbox: Image is reduced with black top and bottom added to image area with the aspect ratio preserved
Crop: Image is cropped to fit new screen size - Cross-Conversion
- 1080i to 720p
720p to 1080i
720p to 1080PsF - SD to SD Aspect Ratio Conversion
- Letterbox: This transforms SD anamorphic material to a letterboxed image
H Crop: Will produce a horizontally stretched effect on the image; transforms anamorphic SD to full frame
SD Pillarbox: Will produce an image in the center of the screen with black borders on the left and right sides and an anamorphized image in the center
V Crop: Will transform SD letterbox material to an anamorphic image UPC: 892448000946 In the Box AJA FS2 Dual Channel Frame Synchronizer and Converter Limited 5-Year Warranty User Manual PDF 3.1mbezszwvazyceftvatucsyvxyufdd Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA FS2 Dual Channel Frame Synchronizer and Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

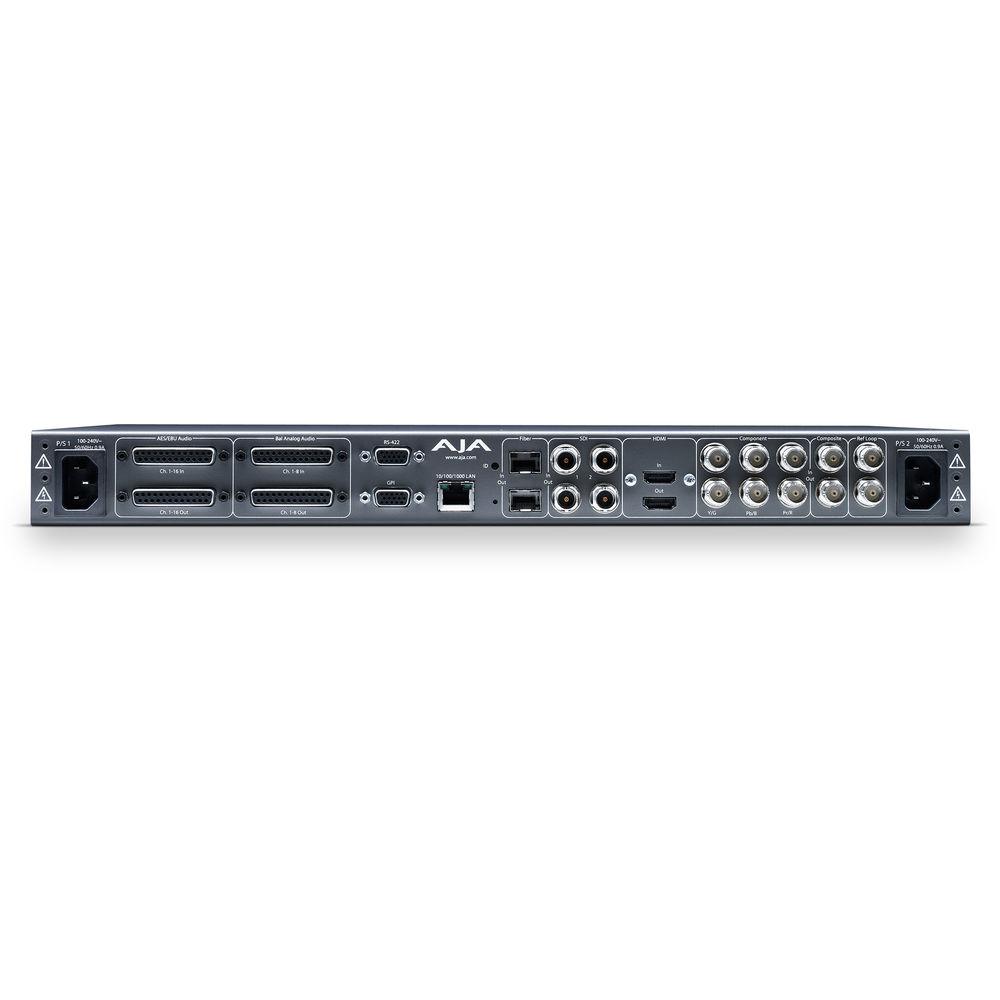

Technical parametersAJA FS2 Specs | Input/Output | Dual SDI inputs and outputs: Dual-link 1080p60, 1080p59.94, 1080p50, YCbCr(4:2:2), 3G/HD/SD-SDI, SMPTE 259-C/274/292/372/425-A/425-B
HDMI Input (RGB or YCbCr 4:2:2)
HDMI Output (YCbCr 4:2:2)
HD component YPbPr/RGB (RGB is output only), SMPTE-274
SD component/composite
Reference Input (color black or tri-level)
Optional: 2 fiber inputs and 2 fiber outputs via optional SFP modules/LC connectors | | Video Formats | 525i 29.97
625i 25
720p 50, 59.94, 60
1080i 25, 29.97, 30
1080PsF 23.98, 24
1080p 24, 25, 30 | | A/D Conversion | Video A/D, D/A: 12-bit
2x oversampled (HD)
4x oversampled (SD)
Audio A/D, D/A: 24-bit, 48 kHz | | Audio | 8-channel balanced, 25 pin D (Tascam pinout)
16-channel AES/EBU 25 pin D
32 input channel mapping
16-channel 3G/HD/SD-SDI embedded
Audio levels: • +12 dBu, +15 dBu, +18 dBu, +24 dBu (Full Scale Digital) | | LAN | 10/100/1000 Ethernet (RJ-45)
Embedded Webserver
HTTP v1.1 | | GPI | 4 x GPI input, TTL, isolated
4 x GPI output, TTL, isolated | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Relative Humidity | 0 to 90%, non-condensing | | Power | 100 to 240 VAC, 50/60 Hz
Dual, redundant power supplies, 55 W typical, 80 W max., 15 A max. | | Rack Height | 1 RU | | Dimensions | 17.25 x 14.5 x 1.75" (43.81 x 36.83 x 4.44 cm) | | Weight | 7.85 lb (3.56 kg) | | | | Package Weight | 11.5 lb | | Box Dimensions (LxWxH) | 21.4 x 18.7 x 7.7" |
