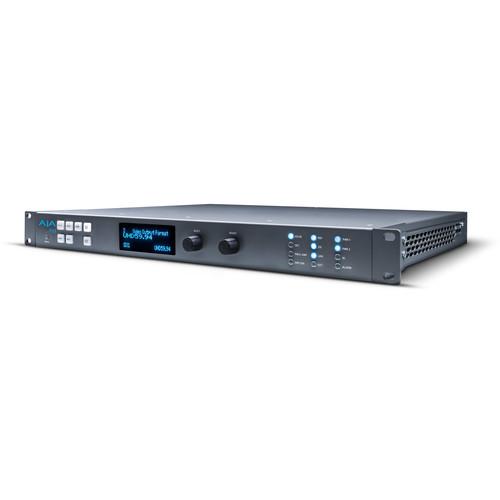

Product description Provided by third party: The new FS3 combines AJA's industry-proven frame synchronization with high-quality 4K up-conversion technology to seamlessly integrate SD and HD signals into 4K workflows. AJA's adaptive scaling algorithms, paired with well-known conversion technology ensures your up-converted images will have the maximum quality possible. Input SD or HD resolution SDI via BNC or Fiber and send up-converted 4K to multiple BNC and Fiber outputs simultaneously. FS3 also includes the industry-proven features included in AJA frame synchronizers such as RGB color correction, region of interest scaling, extensive audio controls and routing, web UI control, GPI triggers and more.
- Key Features
-
- Up-convert to 4K
- Incredible connectivity
- Fiber I/O option
- CWDM fiber options
- Closed caption conversion
- Active format description
- Remote configuration and control
- Up-convert to 4K
- Moving to 4K is never an instant change. Legacy signals and archival material need to be integrated into the 4K environment. Utilizing AJA's remarkable conversion algorithms, FS3 supports up-conversion from SD, HD, and 3G-SDI video to 4K or UHD video carried on quad 3G-SDI BNCs, dual 3G-SDI BNCs, or optional fiber LC SFP outputs. Both Quadrant (Square Division) and 2SI (Two Sample Interleave) output formats are supported.
- Incredible connectivity
- FS3 has BNC and Fiber inputs to accept SD or HD resolution SDI signals. The up-converted 4K signal is output to two sets of BNC and Fiber connections, allowing the output to be routed to multiple locations simultaneously without the need for any external signal distribution. A looping Reference input allows the FS3 to be locked to your house reference signal for rock-solid stability.
- Fiber I/O option
- FS3's Fiber I/O option allows fiber cable runs of up to 10 kilometers to be connected directly to the FS3 without the need for separate fiber to SDI conversion.
- CWDM fiber options
- The optional fiber inputs and outputs let you to choose from multiple wavelength CWDM SFPs, allowing advanced multiplexing of signals over a single fiber connection.
- Closed caption conversion
- FS3 supports closed captioning and the conversion of closed captioning between SD/HD and 4K formats - including full conversion of CEA-608 and CEA-708 standards. FS3 can preserve closed captioning even when converting between formats, removing the need to re-insert closed captions after conversion.
- Active format description
- Automatically sets Active Format Description information to match the converted signal. This means AFD information does not have to be inserted after conversion and provides accurate information for devices that understand AFD.
- Remote configuration and control
- FS3 is network ready and supports SNMP monitoring and web-based remote control. Units can be connected to any Ethernet network via the built-in 10/100/1000MB Ethernet port, allowing control and configuration of multiple FS units from any web browser on a connected computer. Configurations can be saved and applied to multiple units, ensuring consistency and quick configuration in large installs. To integrate smoothly with the existing automation of a facility, FS3 can also receive external GPI commands to trigger a variety of functions.
Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA FS3 Frame Synchronizer and Universal SD HD UHD 4K Up-Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA FS3 Specs | | | Type | 3G-SDI/HD-SDI/SDI frame synchronizer and converter | | | | Terminals | (2) x 3G-SDI input - BNC
(8) x 3G-SDI output - BNC
(1) x network - RJ-45
(1) x GPI input - 9 pin D-Sub (DB-9)
(1) x REF input - BNC - with loop through | | | | Package Weight | 10.55 lb | | Box Dimensions (LxWxH) | 21.3 x 18.4 x 7.1" |
