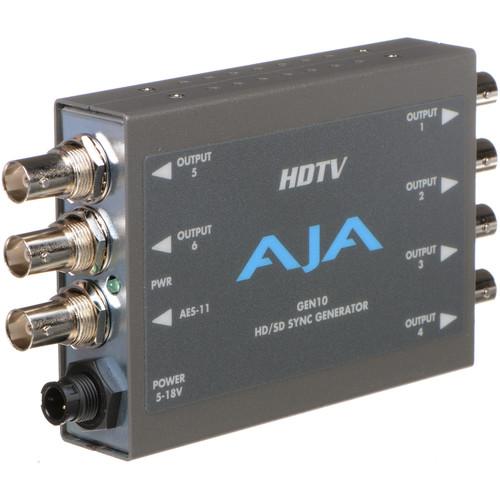

Product description The AJA GEN10 HD/SD/AES Sync Generator with Universal Power Supply is a very cost effective sync generator, providing multi-format tri-level sync, color black sync, 75% color bar sync, and AES tone or silence sync. GEN10 supports up to 1080p/30 NTSC or 1080p/25 PAL and features seven outputs. One is an AES-11 that switches between silence and tone. The remaining six are two groups of independently controlled sync outputs -- one group SD, one HD. The SD outputs can be switched between color black or 75% color bars; and the HD outputs feature tri-level sync and can be switched between 19 different HD formats. All outputs are in sync with each-other and are sourced from an accurate master timebase. -
- HD tri-level sync
- SD color black or 75% color bars
- Two groups of independently switchable outputs enable simultaneous HD and SD sync
- AES-11 output is switchable between silence and tone
- Multiple outputs can synchronize entire systems without requiring a Sync DA
- 5-18V DC power
- External Dipswitch configuration
UPC: 892448000410 In the Box AJA GEN10 HD/SD/AES Sync Generator with Universal Power Supply DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters 5-Year Limited Warranty User Manual PDF 386kb Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA GEN10 HD SD AES Sync Generator with Universal Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA GEN10 Specs | Sync | HD: tri-level
SD: color black, 75% color bars | | Outputs | AES-11:
1x BNC, 48 KHz, silent or 1 KHz tone
(-20 dBFS for NTSC, -18 dBFS for PAL)
Video:
Assignable in two groups to either HD or SD --
4x BNCs - outputs 1 to 4
2x BNCs - outputs 5 and 6 | | Accuracy | 3 ppm | | Formats | 1080p23.98/24/25/29.97/30
1080psF23.98/24/25/29.97/30
1080i50/59.94/60
720p23.98/24/25/29.97/30/50/59.94/60
525i, 625i | | User Controls | External dipswitch | | Power | 5-18 V DC, 2 W | | Dimensions | 5.8 x 3.1 x 1" (14.7 x 7.9 x 2.5 cm) | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 9.8 x 7.2 x 2.8" |
