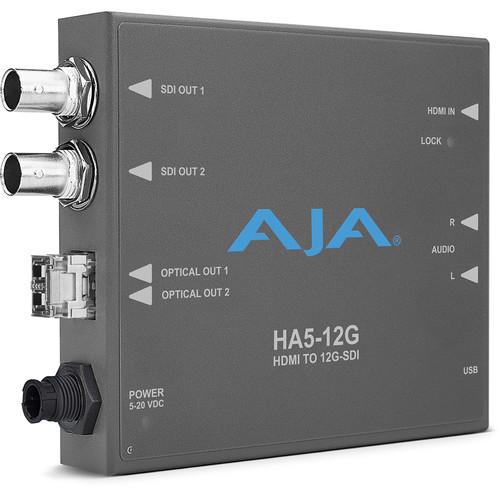

Product description The HA5-12G-T HDMI 2.0 to 12G-SDI Mini-Converter with 1 x Fiber Transmitter from AJA converts a single HDMI 2.0 video input to dual 12G-SDI outputs, and incorporates one SFP (small form-factor pluggable) fiber transmitter for extending your HDMI signal up to 1.24 miles. This compact converter features one HDMI 2.0 input, and two 12G-SDI single-link outputs, minimizing cable runs for HDMI distribution. It supports video resolutions up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160). The HA5-12G-T supports High-Dynamic Range (HDR) content with analysis of InfoFrame data input via HDMI. With features including video-resolution support up to DCI 4K60, display of 60/50 fps High Frame Rates (HFR) at 60p, and DCI/UHD 4K source-mapping with 2SI (two sample interleave), the HA5-12G-T fits neatly into your professional workflow. It ships with the AJA FiberLC-1T-12G SFP installed. The HA5-12G-T supports both DCI and UHD 4K, compensating for the difference in resolutions when you are displaying one type of content on the other type of monitor, and vice-versa. This mini-converter's USB port enables you to configure, control, and update firmware with the free, downloadable Mini-Config software. Input up to eight HDMI-embedded audio channels, and output up to eight SDI-embedded channels. Audio may also be input via two-channel RCA-style audio connectors. An LED indicator displays one of three colors when your input signal is locked: amber for DCI/UHD 4K, red for HD-SDI, or green for SD-SDI. The AJA HA5-12G-T includes a universal power supply with international plug connectors for worldwide use. A separately available D-Tap power cable enables you to battery-power this Mini-Converter in remote locations. - Key Features
-
- Converts one HDMI 2.0 input to two 12G-SDI outputs

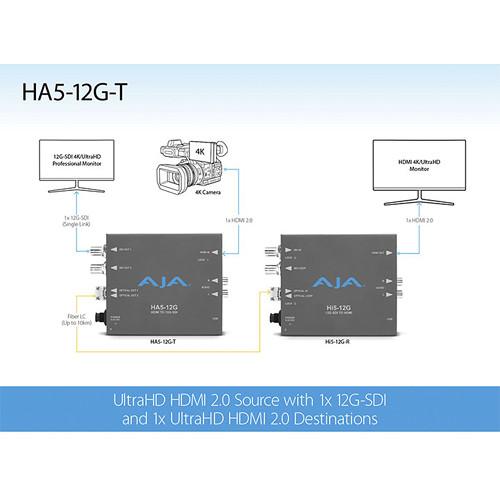

- The one integrated FiberLC-1T-12G transmitter extends 12G-SDI signals up to 1.24 miles
- Supports up to 60p input at 4:4:4/4:2:2/4:2:0
- Two Sample Interleave (2SI) UHD 4K source-mapping
- With AJA Mini-Config software, supports HDR InfoFrame data-analysis via HDMI input
- An LED signal-lock display indicates your input source-type with one of three colors
- Input up to eight SDI-embedded audio channels
- Output up to eight channels of HDMI-embedded 24-bit audio
- Additional 2-channel RCA analog audio input
- Configure, control, and update via the USB port and the included Mini-Config software
- Universal power supply with international plug connector set
- Can be battery-powered using a separately available D-Tap cable
- Compact and portable form
In the Box AJA HA5-12G-T HDMI 2.0 to 12G-SDI Mini-Converter with 1 x Fiber Tx FiberLC-1T-12G SFP Transmitter DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA HA5-12G-T HDMI 2.0 to 12G-SDI Mini-Converter with 1 x Fiber Tx in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA HA5-12G-T Specs | | | Supported Video Formats | DCI 4K: 4096 x 2160p
UHD 4K: 3840 x 2160p
2K: 2048 x 1080p
HD: 1920 x 1080p
HD: 1920 x 1080i
HD: 1280 x 720p
HD: 720 x 576p
HD: 720 x 576i
HD: 720 x 480p
HD: 720 x 480i | | | | Connector | HDMI: 1 x HDMI 2.0b | | Chroma Subsampling | YCbCr 4:2:2/4:4:4/4:2:0
RGB 4:4:4, SMPTE or full-level | | Bit Depth | 8-, 10-, 12-bit (HFR 4K/UHD 4:4:4 limited to 8-bit) | | High Dynamic Range | HDR InfoFrame decoder as defined in CTA-861-G and HDMI v2.0b | | Supported Input Resolutions | 4096 x 2160: 60/59.94/50/30/29.97/25/24/23.98
3840 x 2160: 60/59.94/50/30/29.97/25/24/23.98
2048 x 1080: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 59.94
480i: 59.94 | | | | Connectors | 12G-SDI LC Fiber: 2 x FiberLC-1T-12G SFP (small form-factor pluggable)
SMPTE-2082/2081/424/297/292/259
12G/HD/SD-SDI: 2 x BNC
SMPTE-2082/2081/424/292/259 | | Chroma Subsampling | YCbCr 4:2:2/4:4:4
RGB 4:4:4, SMPTE or full-level | | Bit Depth | 8-, 10-bit | | 4K Signal Integration | Two-Sample Interleave (2SI) DCI/UHD 4K source mapping | | Optical Fiber Video Output | Nominal Wavelength, Transmitter:
1260 nm (minimum), 1310 nm (typical), 1360 nm (maximum)
Optical Power: -5 dBm (minimum), 0.5 dBm (maximum)
Extinction Ratio: 5.4 dB (minimum) | | Maximum Cable Distance (Optical) | 1.24 miles / 2 km | | Supported Output Resolutions | 1 x 12G-SDI:
4096 x 2160: 60/59.94/50/30/29.97/25/24/23.98
3840 x 2160: 60/59.94/50/30/29.97/25/24/23.98
1 x 6G-SDI:
4096 x 2160: 30/29.97/25/24/23.98
3840 x 2160: 30/29.97/25/24/23.98
1 x 3G-SDI (Level A or B dual-link):
2048 x 1080p: 60/59.94/50/30/29.97/25/24/23.98
2048 x 1080PsF: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p*: 60/59.94/50
1 x 1.5G-SDI:
2048 x 1080p: 30/29.97/25/24/23.98
2048 x 1080PsF: 30/29.97/25/24/23.98
1080p: 30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
1 x 270 Mb SDI:
625i: 50
525i: 59.94 *1280 x 720p is Level A only | | | | Audio Input Digital | Embedded Audio: 24-bit, 8 channels | | Audio Input Analog | Connectors: 2 x RCA, 2 channels, -10 dBu (nominal) | | Audio Output Digital | Embedded SDI Audio: 24-bit, 8 channels | | | | Power Supply | 5-20 VDC regulated, 11 W | | | | Operating Temperature & Humidity | 32 to 104°F / 0 to 40°C*
10-90 %, non-condensing *Uses approx. 11 W of power and convection cooling. It will be warm to the touch, which is normal. Mount with access to air for proper cooling; do not stack a HA5-12G-T with other Mini-Converters. | | Storage Temperature | Power Off:
-40 to 140°F / -40 to 60°C | | Operating Altitude | < 10,000 / 3048 m | | | | Dimensions | 4.6 x 4.02 x 0.9" / 116.84 x 102.11 x 22.86 mm | | Weight | 0.5 lb / 0.23 kg | | | | Package Weight | 1.625 lb | | Box Dimensions (LxWxH) | 7.2 x 5.7 x 4.2" |
