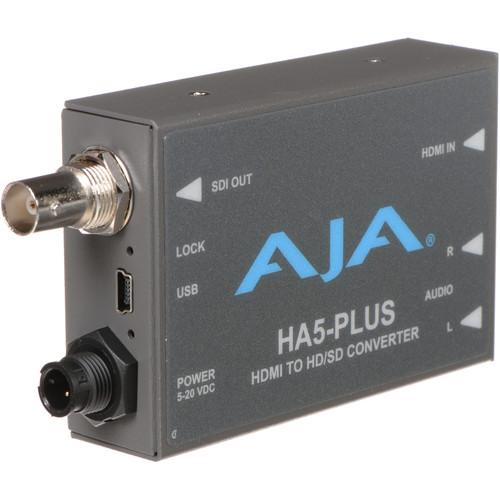

User Manual for AJA HA5-Plus HDMI to 3G-SDI Mini-Converter Click to enlarge the picture
Contents of the user manual for the AJA HA5-Plus HDMI to 3G-SDI Mini-Converter
- Product category: Signal Converters AJA
- Brand: AJA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AJA Signal Converters
|
User manual for the AJA HA5-Plus HDMI to 3G-SDI Mini-Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AJA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AJA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AJA product will considerably shorten its lifespan!
|
Product description The AJA HA5-Plus HDMI to 3G-SDI Mini-Converter allows you to output an HDMI signal to an SDI monitor, recorder, or other device in up to 1080p/60 4:2:2 10-bit. Up to eight channels of HDMI embedded audio can be passed through to the SDI output, or you can connect independent RCA analog audio and embed it on the SDI output.
When you connect RCA audio, you can decide whether to output the HDMI embedded audio or RCA audio or assign particular channels of each using AJA's free-download MiniConfig control software. MiniConfig also provides detailed information about the current input and output formats, allows you to control all the parameters of the HA5-Plus, and lets you download firmware updates. It's compatible with Mac and PC and interfaces with the converter via a USB connection between the converter and the computer.
The HA5-Plus features a compact, portable, and rugged design and comes with a universal power supply with international plugs for use around the world. Note: HDCP content not supported on HDMI input. - 98 ft HDMI Runs
- The HDMI input is equalized to support HDMI runs up to 98 ft using a 24 AWG cable.
- 3G-SDI Output with PLL Clock Filtering
- The 3G-SDI output features PLL clock filtering and ensures a low jitter output for solid image stability. An LED indicator shows the input source as either SD (green) or HD (red) for fast and easy signal identification.
- RCA Analog Audio Input
- Using the RCA L/R analog audio input, embed any 2-channel analog audio signal into the SDI output to maintain proper audio sync throughout the workflow.
- DSLR Support
- The HA5-Plus accepts progressive standard definition signals at 525p and 625p for compatibility with DSLR cameras, allowing the signal from those cameras to be easily incorporated into SDI workflows.
- USB and MiniConfig Support
- The HA5-Plus supports AJA's free-download MiniConfig software, which provides detailed information about the current input and output formats, allows you to control all the parameters of the HA5-Plus, and lets you download firmware updates. MiniConfig is compatible with Mac and PC and interfaces with the converter via a USB connection between the converter and the computer.
- Universal Power Supply
- A universal power supply with international plug connections for use around the world is included.
UPC: 892448000243 In the Box AJA HA5-Plus HDMI to 3G-SDI Mini-Converter DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters ssxbraqwxaqvv Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA HA5-Plus HDMI to 3G-SDI Mini-Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA HA5-PLUS Specs | Video Input | HDMI with embedded audio, up to 8 channels | | Input Formats | 525i, 625i, 525p, 625p, 480p, 576p
720p 50, 59.94, 60
1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080i 50, 59.94, 60
Note: HDCP content not supported | | Video Output | 3G-SDI with embedded audio | | Output Formats | 525i 29.97
625i 25
720p 50, 59.94, 60
1080i 25, 29.97, 30
1080p 23.98, 24, 25, 29.97, 30
1080p 50, 59.94, 60 - SMPTE 425-1 Level A Mapping structure 1 (1920x1080 4:2:2 10-bit YCbCr) | | Audio Input | 2-channel RCA-style analog audio (-10 dBV nominal) | | Audio Output | SDI embedded audio | | Supported HDMI Cable Length | 98 ft (30 m) using 24 AWG cable | | Power | Uses AJA Power Supply model DWP-U-R1 (included)
100-240 V, 50/60 Hz Universal input DWP-U-R1 +5 V DC regulated, 7.5 W capacity | | Dimensions | 4.6 x 2.4 x 1" (11.7 x 6.1 x 2.5 cm) | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 9.4 x 5.7 x 3.6" |
