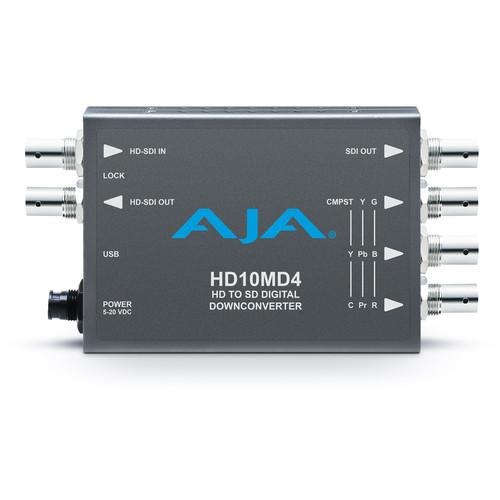

Product description Provided by third party: The HD10MD4 down-converts HD-SDI video to standard definition SDI and analog component/composite video utilizing AJA's high-quality full 10-bit data path and multi-point interpolation to produce broadcast quality down-converted video.
- Key Features
-
- Configurable across USB via AJA Mini-Config software for Mac and PC
- Low-cost digital HD down-converter
- Dual-rate HD-SDI/SDI input
- SDI output
- Component/Composite output
- HD-SDI loop output
- Multi-standard Input Including 1080p and 1080psf 23.98 fps
- 10-bit data path, multi-point interpolation
- Configurable for 16:9 or 4:3 output
- Framerate conversion
- The HD10MD4 converts 1080p 23.98 or 1080psf 23.98 to 59.94 output video using the standard 3:2 pulldown technique. The output can be formatted for either 4:3 or 16:9 standard definition monitors.
- Pristine image quality
- Utilizing a full 10-bit data path and AJA's high-quality scaling technology, HD10MD4 maintains the most detail possible to ensure a quality conversion at an extraordinary price.
- Audio support
- HD10MD4 takes four-channels of embedded HD-SDI audio and passes it to the SD-SDI output. Audio output channels are mapped to follow the input mapping for a 1-to-1 correlation between HD and SD.
- USB and Mini-Config support
- AJA's free Mini-Config software can be used with any USB-enabled AJA Mini-Converter and provides an easy-to-use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.
- Universal power supply
- All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.
- Compact and portable
- AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.
Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA HD-SDI to SD-SDI Digital and Analog Down-Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA HD10MD4 Specs | | | Type | HD-SDI to SD-SDI / component / composite video down converter | | Width | 5.8 in | | Depth | 1 in | | Height | 3.1 in | | | | Supported Video Standards | PAL, NTSC | | | | Max Power Consumption | 7 W | | | | Terminals | (1) x HD-SDI input - BNC - with loop through
(1) x SDI output - BNC
(1) x component video / composite video output - BNC x 3
(1) x DC power input | | | | Min Operating Temperature | 32
