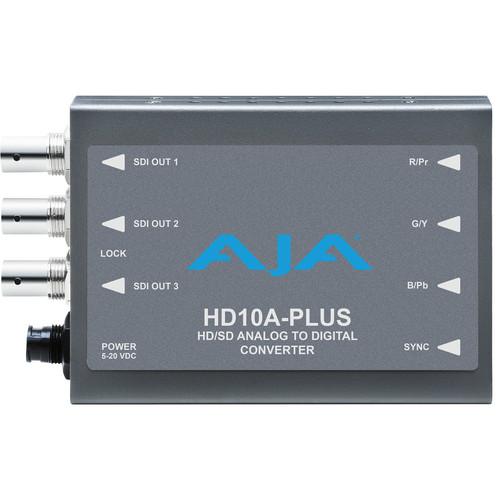

Product description The HD10A-Plus Analog to HD/SD-SDI Mini-Converter from AJA allows you to convert video from analog devices, such as cameras, VTRs, or computers with HD RGB graphics, to digital video and incorporate these devices into modern digital workflows. This high-quality 10-bit analog to digital video converter accepts HD YPbPr or RGB component signals and outputs three duplicated SDI signals.
The HD10A-Plus supports a wide variety of analog input signals. It accepts HD YPbPr or RGB component at resolutions of 1080psf, 1080i, and 720p with internal or external sync. There is also an SD mode for NTSC/PAL component, composite, and S-Video input signals. 10-bit processing ensures a high quality conversion and output.
The device can be easily configured using external DIP switches, and its compact size and low 4 watt power consumption makes it effective for use on-set or in AV installations. A universal 5 VDC power supply comes included. In the Box AJA HD10A-Plus Analog to HD/SD-SDI Mini-Converter DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters vrsbefrcqtxbxcstqvrwtwzfyva Limited 5-Year Warranty User Manual PDF 542.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA HD10A-Plus Analog to HD SD-SDI Mini-Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA HD10A-PLUS Specs | Formats | 1080psf 23.98/24/25 Hz
1080i 50/59.94/60 Hz
720p 50/59.94/60 Hz
525i/625i 50/59.94/60 Hz | | Inputs | BNC:
HD component YPbPr, RGB (SMPTE-274)
SD component (betacam, EBU-N10), composite, YC (S-Video)
1 x BNC, External sync | | Output | 3 x BNC, HD/SD-SDI (SMPTE-259/292/296M) | | Frequency Response | Y +0, -0.5 dB to 30 MHz
C +/- 0.25 dB to 15 MHz | | Dip Switches | Component/Composite (SD only)
S-Video (on/off) (SD only)
Pedestal Present (on/off) (SD only)
Format (YPbPr/YC or RGB)
NTSC-J (on/off) (SD only)
SYNC (INT/EXT) | | Power | 5 to 20 VDC, 4 watts | | Dimensions | 5.8 x 3.1 x 1.0" (14.7 x 7.9 x 2.5 cm) | | Weight | Not specified by manufacturer | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 7.3 x 5.9 x 3.0" |
