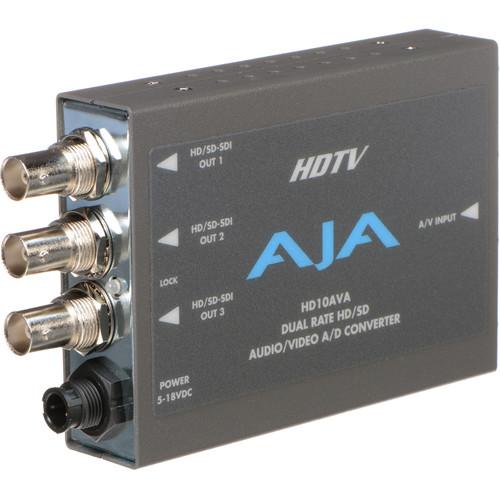

Product description AJA's HD10AVA HD/SD Audio/Video, Analog/Digital Mini-Converter is a miniature, high-quality, audio/video, HD/SD A/D converter. The HD10AVA automatically detects the video input format and embeds the audio inputs in the SD/HD-SDI outputs. The HD10AVA is useful for adding an SD/HD-SDI audio/video output to tape decks or any professional video equipment with analog outputs. The HD10AVA is especially useful for adding HD-SDI outputs to most HDV cameras or decks by using the component outputs of such devices. The HD10AVA uses a breakout cable (included) for audio/video inputs and provides 3 SD-HD-SDI outputs on BNCs. - High-quality SD/HD audio/video A/D converter
- SD component, composite or Y/C video input
- HD analog component video input
- Four channel balanced analog audio input
- 3 SD/HD-SDI with embedded audio outputs
- 12-bit video, 24-bit audio A/Ds
- External DIP switch configuration
UPC: 892448000922 In the Box AJA HD10AVA HD/SD Audio/Video, Analog/Digital Mini-Converter Replacement Breakout Cable for HD10AVA +5 to 18V DC, 5 Watt Power Supply Limited 5-Year Warranty User Manual PDF 398.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA HD10AVA HD SD Audio Video, Analog Digital Mini-Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA HD10AVA Specs | Formats | 1080i 50/59.94/60 Hz
1080psf 23.98/24/25 Hz
1035i 50/59.94/60 Hz
720p 50/59.94/60 Hz | | Video Inputs | HD component YPbPr, (SMPTE-274), BNC
SD component/composite/YC (S Video), BNC | | Audio Inputs | 4-channel balanced, XLR | | Outputs | SDI, HD-SDI, SMPTE-259/292/296, 3 x BNC | | Video | 12 bits | | Audio | 24 bits, 48 kHz | | Audio Level | +10dBu, +12dBu, +18dBu, +24dBu, full-scale digital | | User Controls | External DIP switch
Component/composite (SD)
Composite/YC (SD)
Pedestal present (on/off) (SD)
Audio input level | | Power | +5 to 18 VDC, 5 watt power supply | | Dimensions | 5.8 x 3.1 x 1" (147 x 79 x 25 mm) | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 9.9 x 7.3 x 2.8" |
