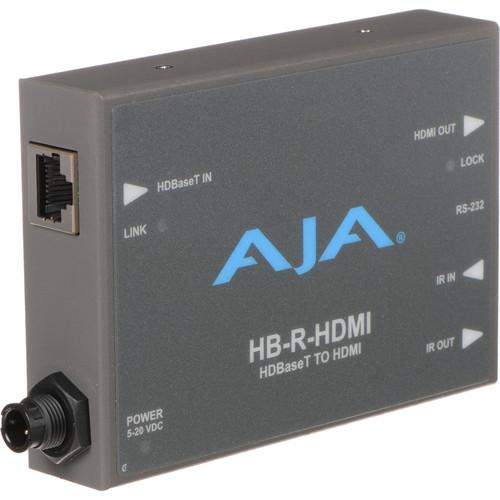

User Manual for AJA HDBaseT to HDMI Receiver Click to enlarge the picture
Contents of the user manual for the AJA HDBaseT to HDMI Receiver
- Product category: Video Extenders & Repeaters AJA
- Brand: AJA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AJA Video Extenders & Repeaters
|
User manual for the AJA HDBaseT to HDMI Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AJA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AJA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AJA product will considerably shorten its lifespan!
|
Product description Receive and convert an HDBaseT Ethernet signal to HDMI with this compact and portable HDBaseT to HDMI Receiver, from AJA. Pair the receiver with the corresponding AJA HDMI to HDBaseT Transmitter (HB-T-HDMI), and carry up to an uncompressed Ultra HD 4K signal, along with bi-directional IR and RS-232 control, up to 328 ft over a Cat 5/6/7 Ethernet cable. A universal power supply is included and a locking power connector prevents accidental power loss. - Key Features
-
- Receive and convert an HDBaseT Ethernet signal to HDMI
- Accept up to an uncompressed Ultra HD 4K signal from up to 328 ft away from an optional transmitter
- Bi-directional IR and RS-232 control
- Support for Deep Color and 3D
- EDID management support
- HDCP compliant
- Support for PCM 2 Ch, LPCM 5.1 Ch, and LPCM 7.1 Ch
- Support for Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, and DTS-HD Master Audio
- Universal power supply included
- Locking power connector
UPC: 892448000878 In the Box AJA HDBaseT to HDMI Receiver DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA HDBaseT to HDMI Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA HB-R-HDMI Specs | Input | 1 x RJ45 HDBaseT
1 x IR | | Output | 1 x HDMI
1 x IR | | Other Connections | 1 x RS-232 | | Supported Resolution | Up to Ultra HD 4K (3840 x 2160), including 1080p
(3D and Deep Color supported) | | Supported Audio | Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, PCM 2 Ch, LPCM 5.1 Ch, LPCM 7.1 Ch | | Supported Distance | 328 ft (100 m) | | Supported Cables | Cat 5/6/7 | | HDCP Compliant | Yes | | EDID Management | Yes | | Power | 5-20 VDC power supply (included) | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 7.2 x 5.7 x 4.1" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 38 owners. Add your rating and experience with the product.
