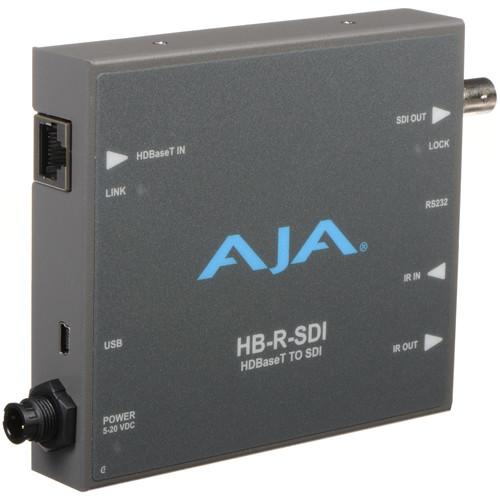

Product description Provided by third party: The HB-R-SDI offers an easy solution for extending SDI signals over Cat 5 (or better) cable, utilizing the industry-standard HDBaseT protocol. Bidirectional IR and RS-232 for device control is also supported, making these mini-converters ideal in a variety of scenarios including: fixed installation AV, digital signage, live events, postproduction/network/studio environments and on-set.
- Key Features
-
- Converts HDBaseT to 3G-SDI
- Extend uncompressed SDI signals over Cat 5 cable
- Configure via USB port
- IR in and out
- RS-232 device control connection
UPC: 892448000762 Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA HDBaseT to SDI Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA HB-R-SDI Specs | | | Device Type | Video/audio/infrared/serial extender | | Form Factor | External | | | | Connectivity Technology | Wired | | Data Link Protocol | HDBaseT, 3G-SDI / SMPTE | | Max Resolution | 4096 x 2160 | | Max Transfer Distance | 328 ft | | Status Indicators | Power, link/activity | | Features | 4K resolution support, HDBaseT technology, 2K resolution support, LPCM 7.1 support, Dolby TrueHD support, Dolby Digital Plus support, DTS-HD Master Audio support, LPCM 5.1 support, Dolby Atmos support, DTS Digital Surround 5.1 support, Dolby Digital support | | | | Interfaces | 1 x HDBaseT - RJ-45 female
1 x 3G-SDI output - BNC
1 x RS-232 - mini jack
1 x IrDA (input) - mini jack
1 x IrDA (output) - mini jack
1 x USB (management) | | | | Cables Included | 1 x USB cable | | Compliant Standards | BSMI CNS 13438 Class A, ICES-003, FCC Part 15 B, EN 60065, IEC 60065, KCC, EN 55103-2, EN 61000-3-2:2006+A1:2009+A2:2009, NMB-3 Class A, EN 61000-4-2:2009, EN 61000-4-6:2009, EN 61000-4-11:2004, EN 61000-4-3:2006+A1:2008+A2:2010, CISPR 22:2008, VCCI V-3/2015.04 Class A, EN 55032, EN 61000-4-5:2005, EN 61000-4-4:2004+A1:2010 | | | | Power Device | External power adapter | | Power Consumption Operational | 9 Watt | | | | Width | 4 in | | Depth | 4.6 in | | Height | 1 in | | Weight | 10.58 oz | | | | Service & Support | Limited warranty - 5 years | | | | Min Operating Temperature | 32
