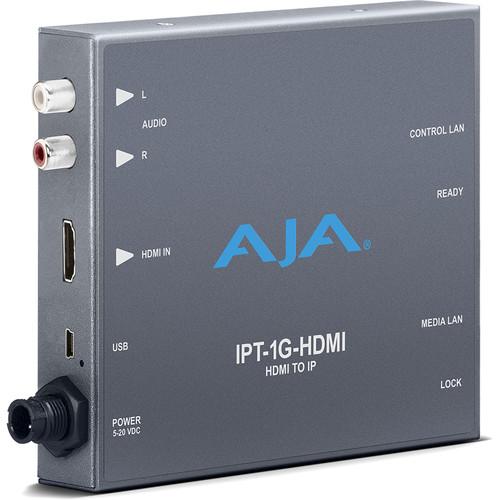

User Manual for AJA HDMI Video and Audio to JPEG 2000 Converter Click to enlarge the picture
Contents of the user manual for the AJA HDMI Video and Audio to
- Product category: Video Extenders & Repeaters AJA
- Brand: AJA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AJA Video Extenders & Repeaters
|
User manual for the AJA HDMI Video and Audio to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AJA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AJA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AJA product will considerably shorten its lifespan!
|
Product description AJA's HDMI Video and Audio to JPEG 2000 Converter lets you connect an HDMI source to your IP video infrastructure. This video front-end is compatible with AJA's back-end equipment, including the IPT-1G converters and KONA IP receivers. 2K, HD, and SD-resolution video is supported at up to 60 fps; and the 10-bit processing, along with JPEG 2000 format encoding, ensures a high level of detail preservation from input to output. Separate analog audio inputs can be used to embed stereo audio in video feeds that don't have embedded audio. Since the output uses IP for transmission, an existing Ethernet network infrastructure can be used to route video. A separate Ethernet port on the device allows for a control connection, enabling setup through a web browser. A locking universal power supply is included. Quick Features - Full size HDMI 1.4 video input
- One RJ45 (IEC 60603-7) for 10/100/1000BASE-T Ethernet media output
- Essence support: VSF TR-01 and other JPEG 2000 MPEG-2 workflows
- Rugged, fanless, and portable design
- Full 10-bit pixel processing pipeline
- Network (LAN) control and status
- Quick network setup with AJA eMini-Setup software
In the Box AJA HDMI Video and Audio to JPEG 2000 Converter DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA HDMI Video and Audio to JPEG 2000 Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA IPT-1G-HDMI Specs | Video Format Support | 2048 x 1080p 23.98/24/25/29.97/30/50/59.94/60
1080p 23.98/24/25/29.97/30/50/59.94/60
1080i 25/29.97
720p 50/59.94/60
NTSC
PAL | | Inputs | 1 x HDMI Type A, v1.4a
1 x 2RCA, stereo analog audio | | Outputs | 1 x RJ45, Ethernet (JPEG 2000 video) | | Color Depth | 8/10-bit | | Chroma Subsampling | RGB/YUV | | Other I/O | 1 x RJ45, Ethernet (control)
1 x USB 2.0 Mini-B | | Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -40 to 140°F / -40 to 60°C
Humidity: 10-90% RH, non-condensing
Operating Altitude: < 10,000' / 3000 m | | Dimensions | 5.5 x 4.5 x 1" / 14 x 11.4 x 2.4 cm | | Weight | 0.6 lb / 0.3 kg | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 10.1 x 5.8 x 3.8" |
