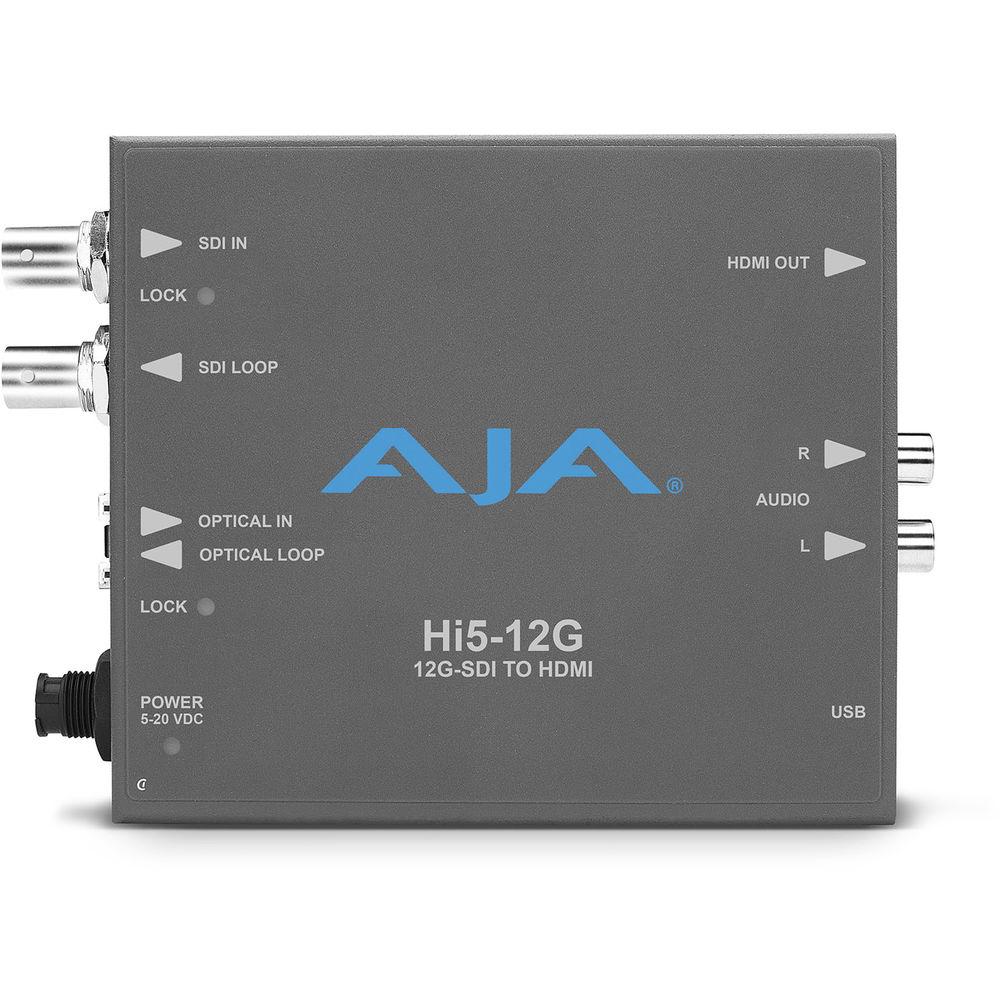

Product description AJA's Hi5-12G 12G-SDI to HDMI 2.0 Mini-Converter converts 12G-SDI video to HDMI 2.0, offering a single-cable, HDMI monitoring solution. This compact converter features one 12G-SDI single-link input, one HDMI 2.0 output, and one re-clocked SDI loop-out. With support for up to UHD 4K60, and HDR metadata generation, the Hi5-12G fits neatly into your professional workflow.Input up to eight SDI-embedded audio channels and output up to eight channels of HDMI-embedded audio via a convenient single cable audio/video connection. The Hi5-12G also provides 2-channel RCA-style audio outputs for separate audio monitoring.An LED indicator displays one of five colors when your input signal is locked: blue for 12G-SDI, purple for 6G-SDI, amber for 3G-SDI, red for HD-SDI, or green for SD-SDI. A USB port enables easy upgrades and configuration with the included Mini-Config software. The AJA Hi5-12G includes a universal power supply with international plug connectors for worldwide use. - Key Features
-
- Converts12G-SDI input to HDMI 2.0 output
- Supports HDMI 2.0b to 18 Gb/s for UHD 4K 60/59.94/50 4:2:2/4:4:4
- Converts incoming 1080PsF signals to 1080p for HDMI display
- HDR support with HDR10 and HLG (hybrid log gamma)
- An LED signal-lock display indicates your input source type with one of five colors
- Input/output up to eight embedded-audio channels
- Additional 2-channel RCA analog audio output

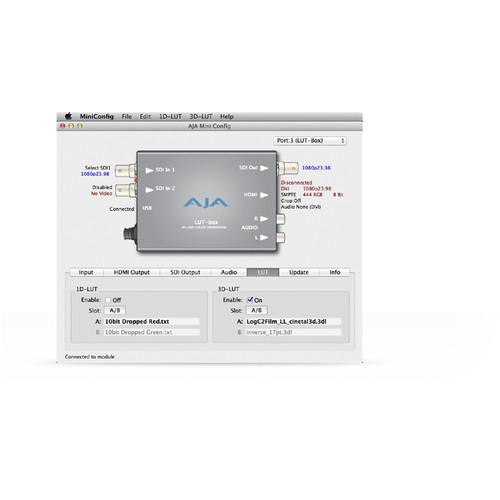

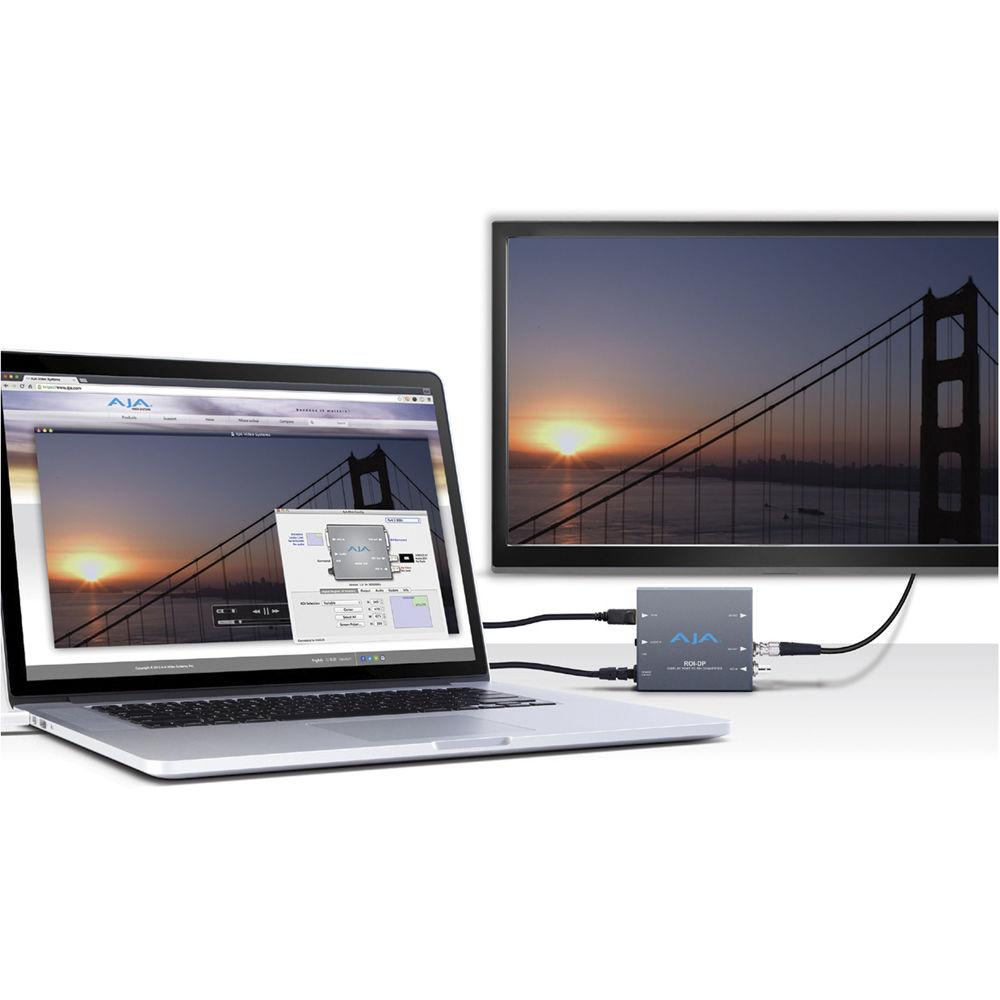

- Configure and update via the USB port and the included Mini-Config software

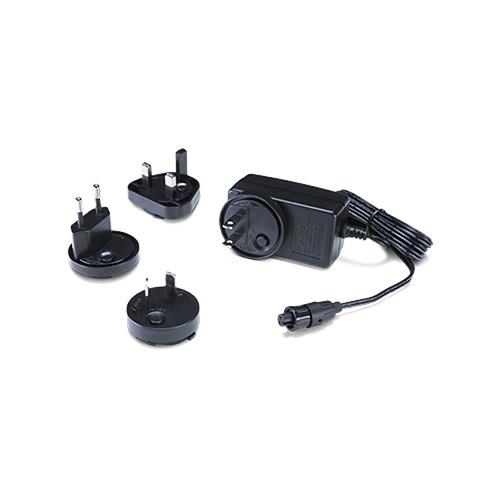

- Universal power supply with international plug connector set

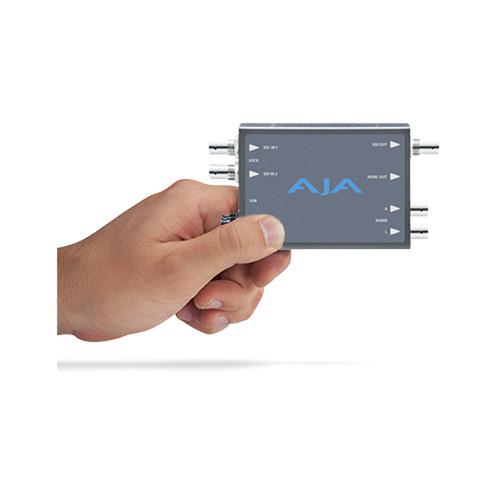

- Compact and portable form
In the Box AJA Hi5-12G 12G-SDI to HDMI 2.0 Mini-Converter DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA Hi5-12G 12G-SDI to HDMI 2.0 Mini-Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA HI5-12G Specs | | | Supported Video Formats | DCI 4K: 4096 x 2160p
UHD 4K: 3840 x 2160p
2K: 2048 x 1080p
HD: 1920 x 1080p
HD: 1920 x 1080i
HD: 1280 x 720p
HD: 720 x 576p
HD: 720 x 576i
HD: 720 x 480p
HD: 720 x 480i | | | | Connector | 12G/HD/SD-SDI: 1 x BNC
SMPTE-2082/2081/424/292/259 | | Chroma Subsampling | YCbCr 4:2:2/4:4:4/4:2:0
RGB 4:4:4, SMPTE or full-level | | Bit Depth | 8-, 10-, 12-bit (HFR 4K/UHD 4:4:4 limited to 8-bit) | | 4K Signal Integration | Two-Sample Interleave (2SI) DCI/UHD 4K source mapping | | High Dynamic Range | HDR InfoFrame decoder as defined in CTA-861-G and HDMI v2.0b | | Supported Input Resolutions | 4096 x 2160: 60/59.94/50/30/29.97/25/24/23.98
3840 x 2160: 60/59.94/50/30/29.97/25/24/23.98
2048 x 1080: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 59.94
480i: 59.94 | | | | Connectors | 12G/HD/SD-SDI: 1 x BNC
SMPTE-2082/2081/424/292/259 | | Chroma Subsampling | YCbCr 4:2:2/4:4:4
RGB 4:4:4, SMPTE or full-level | | Bit Depth | 8-, 10-bit | | Supported Output Resolutions | 1 x 12G-SDI:
4096 x 2160: 60/59.94/50/30/29.97/25/24/23.98
3840 x 2160: 60/59.94/50/30/29.97/25/24/23.98
1 x 6G-SDI:
4096 x 2160: 30/29.97/25/24/23.98
3840 x 2160: 30/29.97/25/24/23.98
1 x 3G-SDI (Level A or B dual-link):
2048 x 1080p: 60/59.94/50/30/29.97/25/24/23.98
2048 x 1080PsF: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p*: 60/59.94/50
1 x 1.5G-SDI:
2048 x 1080p: 30/29.97/25/24/23.98
2048 x 1080PsF: 30/29.97/25/24/23.98
1080p: 30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
1 x 270 Mb SDI:
625i: 50
525i: 59.94 *1280 x 720p is Level A only | | | | Audio Input Digital | Embedded Audio: 24-bit, 8-channel | | Audio Input Analog | Connectors: 2 x RCA, 2-channel, -10 dBu (nominal) | | Audio Output Digital | Embedded SDI Audio: 24-bit, 8-channel | | | | Power Supply | 5-20 VDC regulated, 11 W | | | | Operating Temperature & Humidity | 32 to 104°F / 0 to 40°C*
10-90%, non-condensing *Uses approx. 11 W of power and convection cooling and will be warm to the touch, which is normal. Mount with access to air for proper cooling; do not stack a Hi5-12G with other Mini-Converters. | | Storage Temperature | Power Off:
-40 to 140°F / -40 to 60°C | | Operating Altitude | <10,000 / 3048 m | | | | Dimensions | 4.6 x 4.02 x 0.9" / 116.84 x 102.11 x 22.86 mm | | Weight | 0.5 lb / 0.23 kg | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 7.2 x 5.7 x 4.2" |
