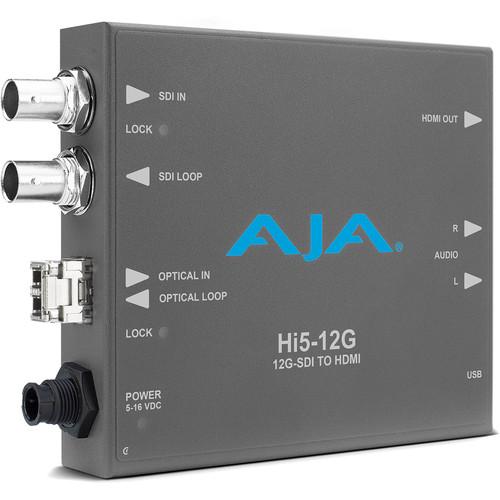

User Manual for AJA Hi5-12G-TR 12G-SDI to HDMI 2.0 Mini-Converter with Fiber LC Transceiver Click to enlarge the picture
Contents of the user manual for the AJA Hi5-12G-TR 12G-SDI to HDMI 2.0
- Product category: Signal Converters AJA
- Brand: AJA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AJA Signal Converters
|
User manual for the AJA Hi5-12G-TR 12G-SDI to HDMI 2.0 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AJA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AJA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AJA product will considerably shorten its lifespan!
|
Product description The Hi5-12G-TR 12G-SDI to HDMI 2.0 Mini-Converter with Fiber LC Transceiver from AJA converts a 12G-SDI or fiber LC source input to an HDMI 2.0 output. This compact converter can extend a 4K fiber or 12G-SDI signal up to 6.2 miles away, and incorporates a fiber loop-out, and a re-clocked SDI loop-out. It supports video resolutions up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160). With support for up to DCI/UHD 4K60, HFRs (high frame-rates), and HDR metadata generation, the Hi5-12G-R integrates smoothly into your professional workflow.An LED indicator displays one of five colors when your input signal is locked: blue for 12G-SDI, purple for 6G-SDI, amber for 3G-SDI, red for HD-SDI, or green for SD-SDI. A USB port enables easy upgrades and configuration with the included Mini-Config software.Input/output up to eight embedded audio channels via a convenient single-cable audio/video connection. The AJA Hi5-12G-TR also provides 2-channel RCA-style audio outputs for separate audio monitoring. This converter includes a universal power supply with international plug connectors for worldwide use. - Key Features
-
- Converts a 12G-SDI input or fiber source to an HDMI 2.0 output
- Supports HDMI 2.0b to 18 Gb/s for UHD 4K 60/59.94/50 4:2:2/4:4:4
- Supports video resolutions up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160)
- Incorporates a fiber loop-out, and a re-clocked SDI loop-out
- Extends 4K signals up to 6.2 miles
- HDR support with HDR10 and HLG (hybrid log gamma)
- An LED signal-lock display indicates your input source-type with one of five colors
- Input/output up to eight embedded-audio channels
- Additional 2-channel RCA analog audio output
- Configure and update via the USB port and the included Mini-Config software
- Universal power supply with international plug connector set
- Compact and portable form
In the Box AJA Hi5-12G-TR 12G-SDI to HDMI 2.0 Mini-Converter with Fiber LC Transceiver DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA Hi5-12G-TR 12G-SDI to HDMI 2.0 Mini-Converter with Fiber LC Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA HI5-12G-TR Specs | | | Supported Video Formats | DCI 4K: 4096 x 2160p
UHD 4K: 3840 x 2160p
2K: 2048 x 1080p
HD: 1920 x 1080p
HD: 1920 x 1080i
HD: 1280 x 720p
HD: 720 x 576p
HD: 720 x 576i
HD: 720 x 480p
HD: 720 x 480i | | | | Input Signal Selection | 12G Fiber: 1 x fiber LC
SMPTE-2082/2081/424/297/292/259
12G/HD/SD-SDI: 1 x BNC
SMPTE-2082/2081/424/292/259 | | Chroma Subsampling | YCbCr 4:2:2/4:4:4/4:2:0
RGB 4:4:4, SMPTE or full-level | | Bit Depth | 8-, 10-, 12-bit (HFR 4K/UHD 4:4:4 limited to 8-bit) | | 4K Signal Integration | Two-Sample Interleave (2SI) DCI/UHD 4K source mapping | | Optical Fiber Video Input | Nominal Wavelength, Receiver:
1260 nm (minimum), 1620 nm (maximum)
Optical Sensitivity: -10 dBm (minimum 12 Gb/s), -14 dBm (minimum 3 Gb/s)
Overload Power: -2 dB (minimum) | | High Dynamic Range | HDR InfoFrame decoder as defined in CTA-861-G and HDMI v2.0b | | Supported Input Resolutions | 4096 x 2160: 60/59.94/50/30/29.97/25/24/23.98
3840 x 2160: 60/59.94/50/30/29.97/25/24/23.98
2048 x 1080: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 59.94
480i: 59.94 | | | | Video Output Connectors | 12G Fiber: 1 x 12G-SDI fiber LC
SMPTE-2082/2081/424/297/292/259
12G/HD/SD-SDI: 1 x BNC
SMPTE-2082/2081/424/292/259 | | Chroma Subsampling | YCbCr 4:2:2/4:4:4
RGB 4:4:4, SMPTE or full-level | | Bit Depth | 8-, 10-bit | | Optical Fiber Video Output | Nominal Wavelength, Transmitter:
1260 nm (minimum), 1310 nm (typical), 1360 nm (maximum)
Optical Power: -5 dBm (minimum), 0.5 dBm (maximum)
Extinction Ratio: 5.4 dB (minimum) | | Maximum Cable Distance (Optical) | 1.24 miles / 2 km | | Supported Output Resolutions | 1 x 12G-SDI:
4096 x 2160: 60/59.94/50/30/29.97/25/24/23.98
3840 x 2160: 60/59.94/50/30/29.97/25/24/23.98
1 x 6G-SDI:
4096 x 2160: 30/29.97/25/24/23.98
3840 x 2160: 30/29.97/25/24/23.98
1 x 3G-SDI (Level A or B dual-link):
2048 x 1080p: 60/59.94/50/30/29.97/25/24/23.98
2048 x 1080PsF: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p*: 60/59.94/50
1 x 1.5G-SDI:
2048 x 1080p: 30/29.97/25/24/23.98
2048 x 1080PsF: 30/29.97/25/24/23.98
1080p: 30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
1 x 270 Mb SDI:
625i: 50
525i: 59.94 *1280 x 720p is Level A only | | | | Audio Input Digital | Embedded Audio: 24-bit, 8 channels | | Audio Input Analog | Connectors: 2 x RCA, 2 channels, -10 dBu (nominal) | | Audio Output Digital | Embedded SDI Audio: 24-bit, 8 channels | | | | Power Supply | 5-20 VDC regulated, 11 W | | | | Operating Temperature & Humidity | 32 to 104°F / 0 to 40°C*
10-90 %, non-condensing *Uses approx. 11 W of power and convection cooling and will be warm to the touch, which is normal. Mount with access to air for proper cooling; do not stack a Hi5-12G-R with other Mini-Converters. | | Storage Temperature | Power Off:
-40 to 140°F / -40 to 60°C | | Operating Altitude | < 10,000 / 3048 m | | | | Dimensions | 4.6 x 4.02 x 0.9" / 116.84 x 102.11 x 22.86 mm | | Weight | 0.5 lb / 0.23 kg |
