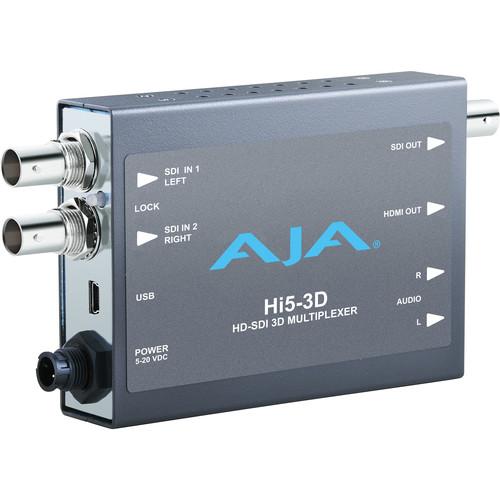

User Manual for AJA Hi5-3D Dual HD-SDI to HDMI 3D Multiplexer Mini-Converter Click to enlarge the picture
Contents of the user manual for the AJA Hi5-3D Dual HD-SDI to HDMI
- Product category: Signal Converters AJA
- Brand: AJA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AJA Signal Converters
|
User manual for the AJA Hi5-3D Dual HD-SDI to HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AJA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AJA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AJA product will considerably shorten its lifespan!
|
Product description The Hi5-3D Dual HD-SDI to 3D Multiplexer Mini-Converter from AJA is a video multiplexer that combines and synchronizes two HD-SDI inputs into various multiplexed 3D formats for output over HDMI and HD-SDI. Embedded audio is supported in the HDMI output allowing a convenient single cable audio/video connection. The Hi5 also provides 2-channel RCA style audio outputs for separate audio monitoring if needed. The Hi5 also provides a looping SD/HD-SDI output useful for connecting additional equipment, or for daisy chaining multiple monitors to the same source.
The Hi5-3D works with both 2D and 3D inputs. When in the 2D mode, the input is simply passed to the output unmodified. In the 3D mode, the Hi5-3D supports the minimum required 3D modes as defined by the CEA for HDMI 1.4a televisions. Depending on the 3D format, the Hi5-3D supports "side-by-side", "top-bottom", and "frame-packing" modes. The "side-by-side" and "top-bottom" modes involve compressing, either horizontally or vertically, each input for combining into a single video stream at the same rate of the inputs. The "frame-packing" mode stacks two full resolution inputs into a "tall" frame (at twice the clock and line rates). When selected, "frame-packing" can only be used with 23.98/24Hz input frame rates.
The Hi5-3D supports both DIP switch control and host control via the MiniConfig application. One of the DIP switches is a "Local/Remote" switch. When in the "Local" mode, the remaining DIP switches support a subset of the user controls. When in the "Remote" mode, AJA's MiniConfig application controls the unit. The last configuration is held in memory on the Hi5-3D for use when disconnected. To power the Hi5-3D, a universal power supply is included that comes with international plug connections for worldwide use. - Format Support
- The Hi5-3D works with both 2D and 3D inputs. When in the 2D mode, the input is simply passed to the output unmodified. In the 3D mode, the Hi5-3D supports the minimum required 3D modes as defined by the CEA for HDMI 1.4a televisions.
CEA Required 3D modes:
2 x SDI1.5GB - 720p 50, 59.94, 60 - T/B
2 x SDI1.5GB - 1080p 23.98, 24, 25 - T/B, FP
2 x SDI1.5GB - 1080PsF 23.98, 24 - T/B, FP
2 x SDI1.5GB - 1080i 50, 59.94, 60 - S/S
Note: "PsF" inputs are converted to "p" for HDMI output. The SDI output can support S/S and T/B formats only. Future software versions may add other formats. - Key Features
-
- HD-SDI to HDMI 1.4a with additional SDI output
- 10-bit HDMI 1.4a support including 3D and embedded audio
- Additional 2-channel RCA jack audio output
- Setup via DIP switch or PC/Mac using USB port and supplied USB cable (USB configuration software application supplied on CD)
- Compact and portable
- Universal power supply with international plug connector set included
UPC: 812321030112 In the Box AJA Hi5-3D Dual HD-SDI to HDMI 3D Multiplexer Mini-Converter DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA Hi5-3D Dual HD-SDI to HDMI 3D Multiplexer Mini-Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA Hi5 3D Specs | Input Formats | 720p 50/59.94/60
1080i 50/59.94/60
1080p 23.98/24/25 | | Video Inputs | 2 x HD-SDI (auto-selected), 10-bit, SMPTE-292/296/424 (one SDI for left eye input and one SDI for right eye input) | | Video Outputs | 1 x HDMI 1.4a, 10-bit
1 x HD-SDI, 10-bit The Hi5-3D does not encode the HDMI output with HDCP encryption. By definition, SDI inputs to the Hi5-3D are unencrypted. | | Audio Outputs | HDMI embedded audio, 2 or 8 channels
2 x RCA-style analog outputs at -10dBV (nominal), user assignable channels | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Relative Humidity | 10 to 90% non-condensing | | Operating Altitude | < 9842.5' (3,000 m) | | Storage Temperature | -40 to 140°F (-40 to 60°C) | | Power | 5 to 20 VDC regulated, 6 watt max. | | Dimensions | 5.8 x 3.1 x 1" (147 x 79 x 25 mm) | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 9.9 x 7.3 x 2.8" |
