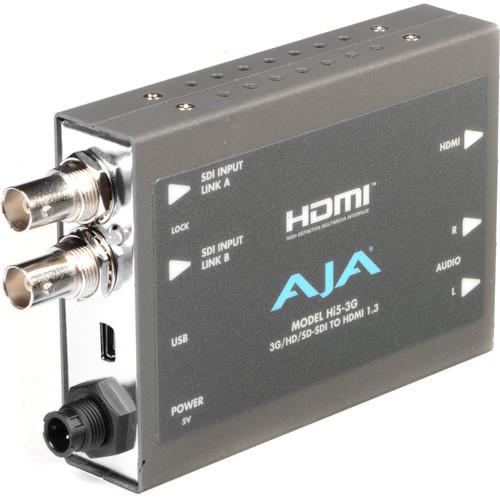

Product description AJA's Hi5-3G 3G/Dual Link/HD/SD-SDI to HDMI Mini-Converter converts 3G-SDI, dual or single link HD-SDI, or SD-SDI to HDMI v1.3a for driving HDMI monitors. HDMI v1.3a capability at 30 bits per pixel allows full support for 10-bit monitors. Audio is supported in the HDMI output allowing a convenient single cable audio/video connection. The Hi5-3G provides 2-channel RCA-style audio outputs for separate audio monitoring if needed. USB connectivity allows for easy PC/Mac setup and field upgrades. To power the mini-converter, a universal power supply is included with international plug connectors for worldwide use.
Note: The Hi5-3G does not encode the HDMI output with HDCP encryption. By definition, SDI/HD-SDI inputs to the Hi5-3G are unencrypted. - Key Features
-
- 3G/HD/SD-SDI to HDMI
- SMPTE425M-AB input
- Full HDMI 1.3a support including: - Deep Color 30- and 36-bit video per pixel (24-bit also supported) - 2 or 8 channels of embedded audio
- Additional 2-channel RCA analog audio output (User assignable channels)
- Compact and portable
- Setup via PC/Mac using USB port and supplied USB cable (USB configuration software application supplied on CD)
- Universal power supply with international plug connector set
UPC: 812321030372 In the Box AJA Hi5-3G 3G/Dual Link/HD/SD-SDI to HDMI Mini-Converter HDMI Cable (3.28') DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters wbxwsqsdaszfzrzxxtyeycvateaebtyuyx Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA Hi5-3G 3G Dual Link HD SD-SDI to HDMI Mini-Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA Hi5 3G Specs | Video Inputs | 2 x 3G/HD/SD-SDI (auto-selected) (BNC connectors)
SMPTE-259/274/292/296/372/424/425 | | Video Outputs | 1 x HDMI v1.3a (Type A connector), 30/36 bits per pixel
| | Input Formats | 525i, 625i, 720p 50/59.94/60
1080i 50/59.94/60
1080p23.98/24/25/29.9/30/50/59.94/60
1080psF 23.98/24/25/29.97/30
YCbCr/RGB/XYZ 10/12-bit | | Output Formats | RGB or YUV
SD, HD
525i, 625i, 720p 50/59.94/60
1080i 50/59.94/60
1080p 23.98/24/25/29.9/30/50/59.94/60 | | Audio Outputs | HDMI embedded audio, 24 bit, 2 or 8 channels
2 x RCA-style analog outputs at -10dBV (nominal), user assignable channels | | Power | 5 VDC regulated, 3 W | | Dimensions | 5.8 x 3.1 x 1" (147 x 79 x 25 mm) | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 9.9 x 7.2 x 2.8" |
