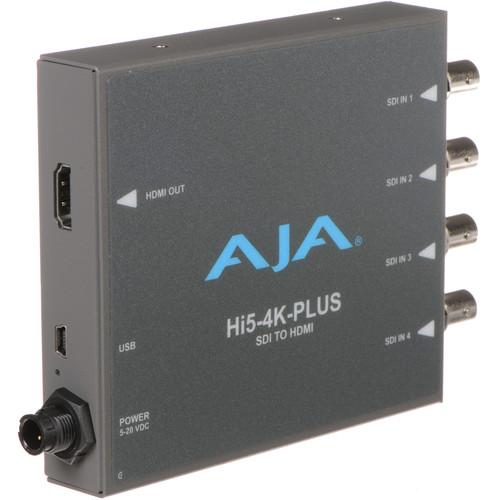

Product description The Hi5-4K-Plus 3G-SDI to HDMI 2.0 Converter from AJA offers an HFR support for up to 60p for 4K/UltraHD SDI to HDMI 2.0 conversion. It provides a simplified monitoring connection from professional 4K devices using quad 3G-SDI, quad 1.5G-SDI, or dual 3G-SDI outputs to displays with HDMI 2.0 inputs, for efficient monitoring for 4:2:2/4:4:4 60p professional workflows. - Connectivity
-
- Integrates 4K monitors that utilizes an HDMI 2.0 connection through a single cable, with the ones that use four SDI cables to carry the full resolution image
- Audio
-
- Up to 8 channels of embedded audio in the incoming SDI signal are carried through seamlessly into the HDMI output, ensuring your audio is always in sync and can be easily played back on the connected monitor
- 4K and UltraHD
-
- Hi5-4K-Plus allows allowing UltraHD monitors to be used in 4K productions and 4K monitors to be used in 3840 x 2160 resolution
- Supports High Frame Rate (HFR) inputs, 4K/UHD signals at 50 or 60 fps can be fed into the converter and output at up to 60p for viewing with appropriate HDMI 2.0 capable displays
- HD Support
-
- When you're not working in 4K, Hi5-4K-Plus Converter can still be a useful tool for converting HD-SDI to HDMI
- A single HD-SDI signal coming into the converter will be sent out as an HD resolution HDMI signal
- Universal Power Supply
- Ships with a universal power supply unit that includes international plug connections for use around the world
- Compact and Portable
-
- The Hi5-4K-Plus Mini-converter is small enough to fit behind a monitor, in the back of a rack or directly on a camera rig
- A locking power connector can't accidentally pull loose and an optional D-TAP power cable allows for battery power in remote locations
- General
-
- 4 x 3G-SDI inputs
- Support for 4:2:2/4:4:4 HDMI 2.0 output
- HD conversion supported
- Embedded audio support
- Configure via USB port and supplied MiniConfig software
- Uses 5 to 20 VDC power
In the Box AJA Hi5-4K-Plus 3G-SDI to HDMI 2.0 Converter DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters sutxscetzbxbtctezvyxvzsscyeadbt Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA Hi5-4K-Plus 3G-SDI to HDMI 2.0 Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA HI5-4K-PLUS Specs | Video Formats | 4 x 3 GB SDI (Level A or B-Dual Link)
4K 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
4K 4096 x 2160PsF (Level B-Dual link) 23.98, 24, 25, 29.97, 30
UltraHD: 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
Ultra HD: 3840 x 2160PsF (Level B-Dual link) 23.98, 24, 25, 29.97, 30
4 x 1.5 GB SDI
4K: 4096 x 2160p 23.98, 24, 25, 29.97, 30
4K: 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
UltraHD: 3840 x 2160p 23.98, 24, 25, 29.97, 30
UltraHD: 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
2 x 3 GB SDI (Level B-Dual Stream)
4K: 4096 x 2160p 23.98, 24, 25, 29.97, 30
4K: 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
UltraHD: 3840 x 2160p 23.98, 24, 25, 29.97, 30
UltraHD: 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
1 x 3 GB SDI (Level A or B-Dual Link)
2K: 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
2K: 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
HD: 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
HD: 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
HD: 1920 x 1080i 25, 29.97, 30
HD: 1280 x 720p (Level A only) 50, 59.94, 60
1 x 1.5 GB SDI
2K: 2048 x 1080p 23.98, 24, 25, 29.97, 30
2K: 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
HD: 1920 x 1080p 23.98, 24, 25, 29.97, 30
HD: 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
HD: 1920 x 1080i 25, 29.97, 30
HD: 1280 x 720p 50, 59.94, 60
1 x 270 Mb SDI
SD: 625i 25
SD: 525i 29.97 | | Video Input Digital | 4 x 3G-SDI BNC, SMPTE-259/292/424 | | Video Output Digital | 1 x HDMI Type A connector
HDMI v1.4a 4K/UltraHD 4:2:2 up to 30 fps, 4:2:0 up to 60 fps
HDMI v2.0 4K/UltraHD 4:2:2/4:4:4 up to 60 fps | | HDCP | The Hi5-4K-PLUS does not encode the HDMI with HDCP encryption. By definition, HD-SDI inputs to the Hi5-4K are unencrypted.The HDMI specification requires HDMI monitors to support unencrypted inputs | | Audio Input Digital | SDI embedded audio, 24-bit, 8-Channel | | Audio Output Digital | SDI embedded audio, 24-bit, 8-Channel | | Power | 5 to 20 VDC regulated, 8 W, power supply required (included with purchase) | | Environment | Operating Temperature: 32 to 104°F (0 to 40°C)
Storage Temperature: -40 to 140°F (-40 to 60°C)
Operating Relative Humidity: 10 to 90% non-condensing
Operating Altitude: < 10,000' (3,000 m) | | Dimensions (W x D x H) | 4.0 x 5.8 x 0.9" (10 x 15 x 23 cm) | | Weight | 0.5 lb (0.3 kg) | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 7.2 x 5.8 x 4.2" |
