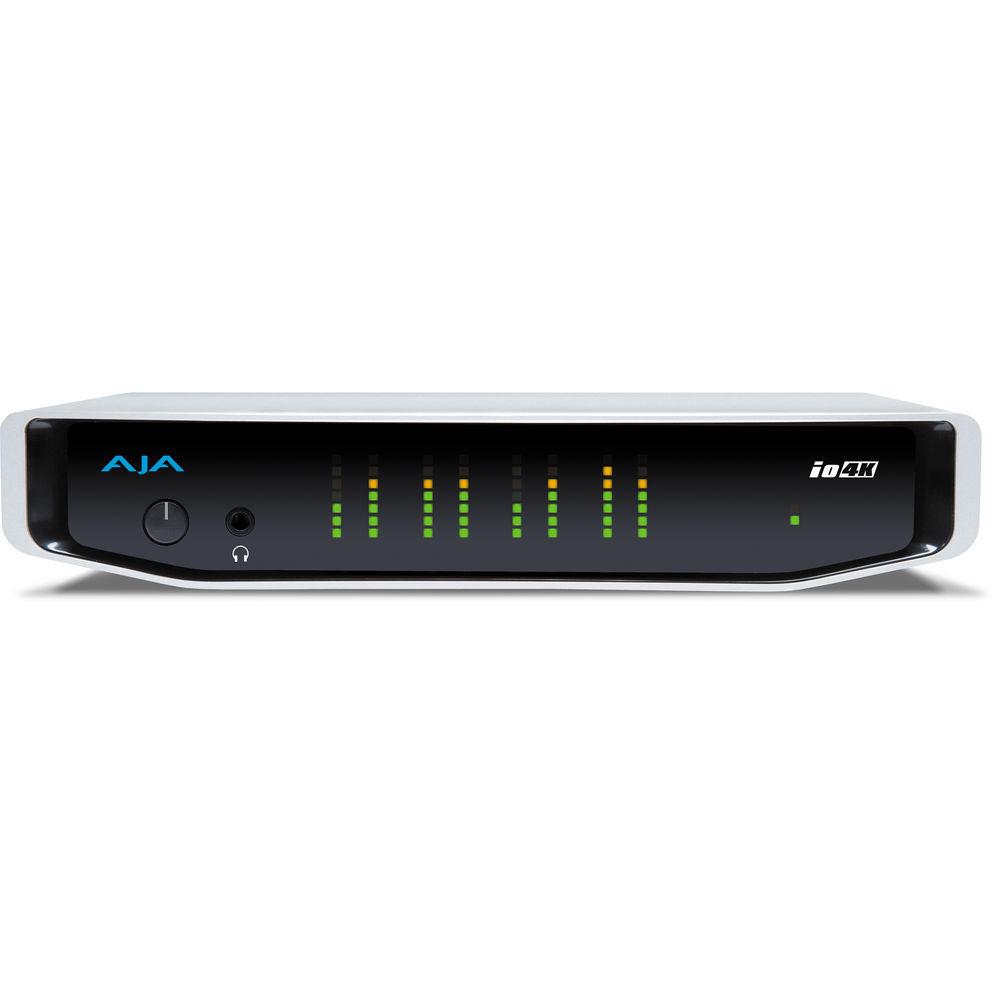

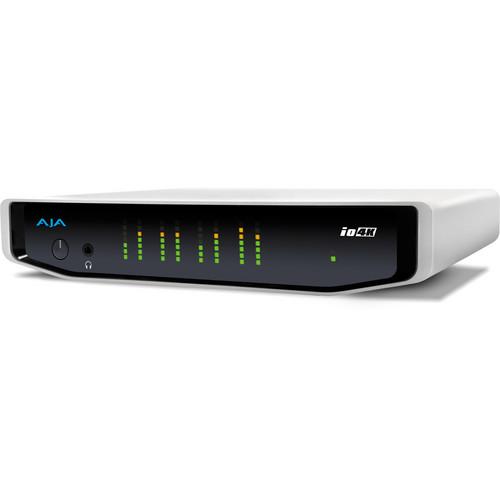

Product description The AJA Io 4K I/O for Thunderbolt 2 is a portable capture and output device that offers professional video and audio connectivity with support for 4K and UltraHD workflows. It handles a wide range of formats from SD to full 4K over both SDI and HDMI. Built around Thunderbolt 2 technology, the Io 4K allows even greater bandwidth between host computer systems and Thunderbolt devices. The dual Thunderbolt 2 ports allow you to daisy chain additional peripherals such as high resolution displays and high-capacity storage.

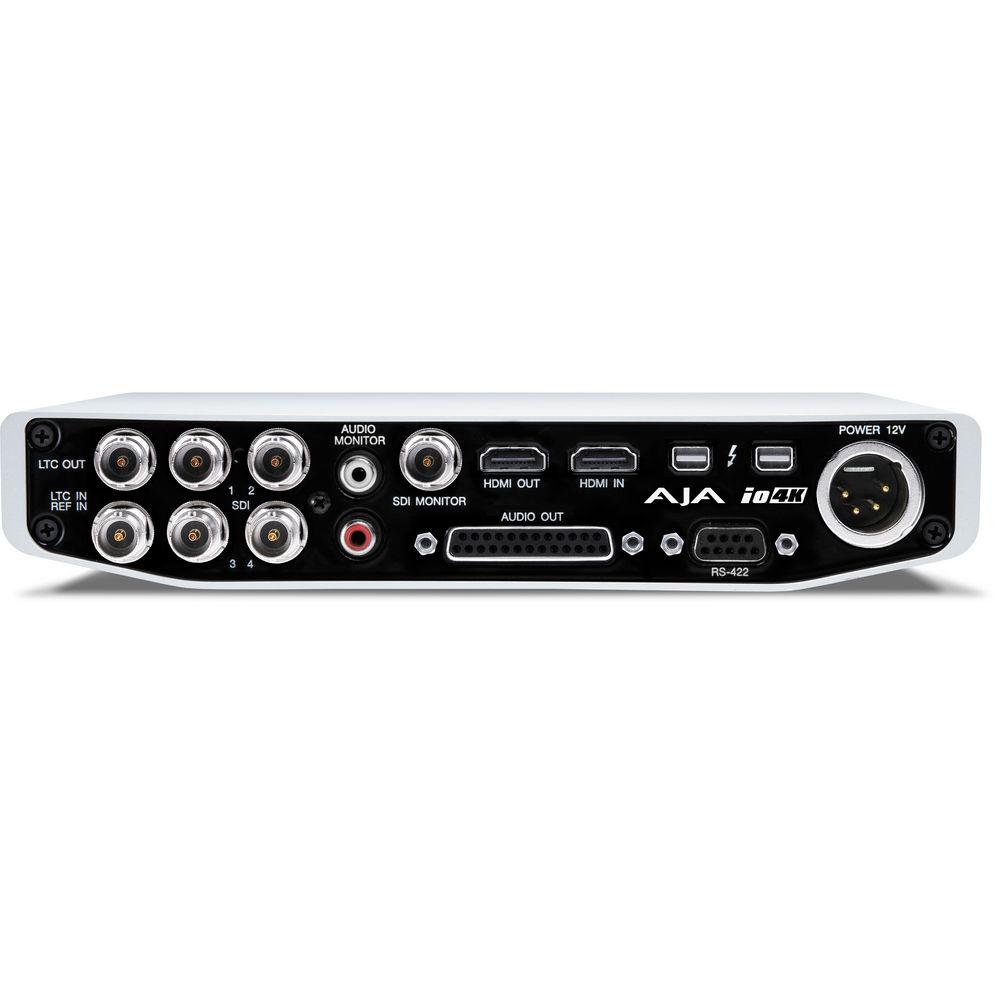

Featuring four 3G-SDI inputs and outputs, as well an HDMI 1.4 input and output, the Io 4K is capable of capturing and outputting 4K signals over quad link SDI or HDMI. It is also capable of handling UltraHD, 2K, HD, and SD resolutions. When working with 4K content, the Io 4K outputs an HD-SDI down-converted signal on a dedicated BNC connector. This HD signal can be used to output to HD recorders or monitors. Embedded 16-channel SDI and 8-channel HDMI audio are supported, as well as analog audio outputs via a standard DB-25 connection. Stereo monitoring is possible via two RCA outputs and a front panel headphone jack. A 4-pin XLR power input is available for powering the Io 4K with batteries or the included AC adapter. - Additional Features
-
- 10-bit 4:2:2 and 4:4:4 workflow support
- Backwards compatible with existing Thunderbolt hosts
- Simultaneous SDI and HDMI outputs
- RS-422 VTR control
- Reference and LTC input/output
XLR 12V power for battery or AC use - Integrates with software such as Apple Final Cut Pro X, Adobe Creative Cloud, AJA Control Room, Telestream Wirecast 5, and more
In the Box AJA Io 4K I/O for Thunderbolt 2 AC Adapter Limited 3-Year Warranty User Manual PDF 2.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA Io 4K I O for Thunderbolt 2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA IO-4K Specs | Video Formats | 4K:
4096 x 2160p 23.98, 24, 25, 29.97, 30
4096 x 2160PsF 23.98, 24, 25
3840 x 2160p 23.98, 24, 25, 29.97, 30
3840 x 2160PsF 23.98, 24, 25
2K:
2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
2048 x 1080PsF 23.98, 24, 25, 29.97, 30
HD:
1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080PsF 23.98, 24, 25, 29.97, 30
1080i 50, 59.94, 60
720p 50, 59.94, 60
SD:
525i 29.97
625i 25 | | Video Inputs | 4 x BNC, SD/HD/3G-SDI, SMPTE-259/292/296/424, 8 -or 10-bits
- Single Link 4:2:2 or 4:4:4 (1 x BNC)
- Dual Link HD 4:4:4 (2 x BNC)
- 2K HSDL (High Speed Data Link) 4:4:4 (2 x BNC)
- 4K/QuadHD 4:4:4 (4 x BNC)
1 x HDMI 1.4
- 30/36 bits/pixel, RGB or YUV, 2.25 Gbps
- SD, HD, 1080p 50/60, 4K, 2K and stereoscopic HD support
| | Video Output | 4 x BNC, SD/HD/3G-SDI, SMPTE-259/292/296/424, 8 -or 10-bits
- Single Link 4:2:2 or 4:4:4 (1 x BNC)
- Dual Link HD 4:4:4 (2 x BNC)
- 2K HSDL (High Speed Data Link) 4:4:4 (2 x BNC)
- 4K/QuadHD 4:4:4 (4 x BNC)
1 x HDMI 1.4
- 30/36 bits/pixel, RGB or YUV, 2.25 Gbps
- SD, HD, 1080p 50/60, 4K, 2K and stereoscopic HD support
| | Audio Input | 16-channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
8-channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous | | Audio Output | Digital:
16-channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
8-channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
Analog:
8-channel, 24-bit D/A analog audio, 48 kHz sample rate, balanced (via 8 x XLR on DB-25 breakout cable)
+24 dbu Full Scale Digital (0 dbFS) ±0.2 db 20 to 20 kHz Frequency Response | | Reference Input & Output Sync | 1 x BNC LTC output
1 x BNC assignable to reference video or LTC input
Reference: Analog Color Black (1V) or Composite Sync (2 or 4V)
Non-terminating | | Machine Control | 1 x RS-422, Sony 9-pin protocol | | Interface | 2 x Thunderbolt 2 | | Power | 1 x 4-pin XLR
10 to 20 VDC, 30 to 60 W
Please note: Nominal power is 30W. However, multiple connected Thunderbolt devices may place additional power demands, which could increase the power draw to 60W. | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 5.25 lb | | Box Dimensions (LxWxH) | 9.8 x 9.5 x 4.0" |
