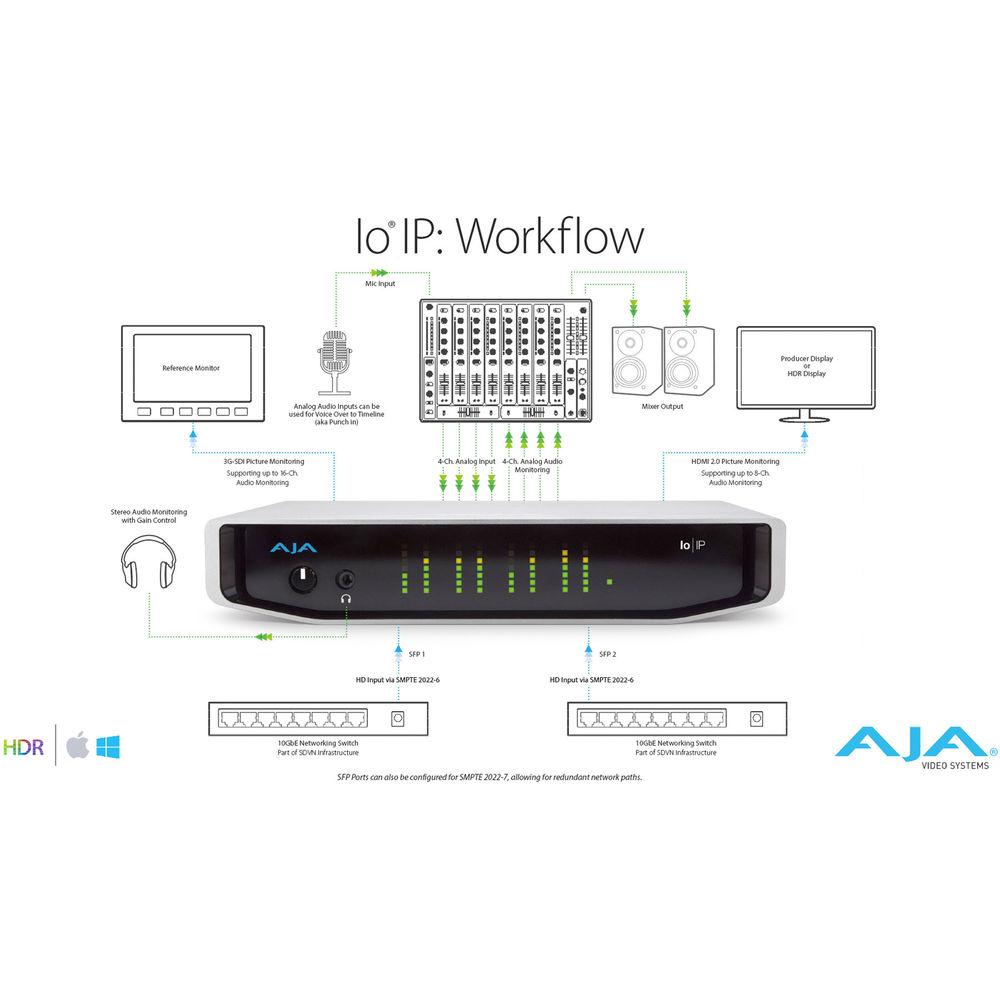

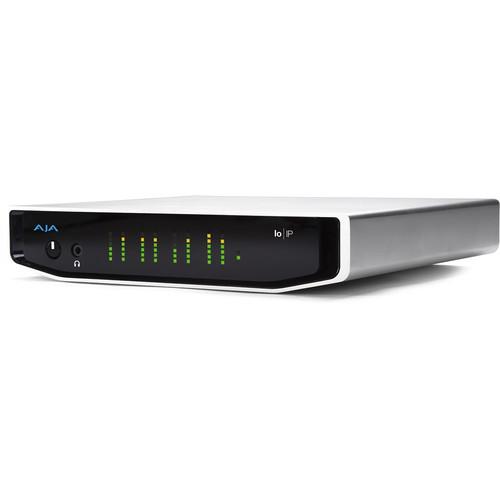

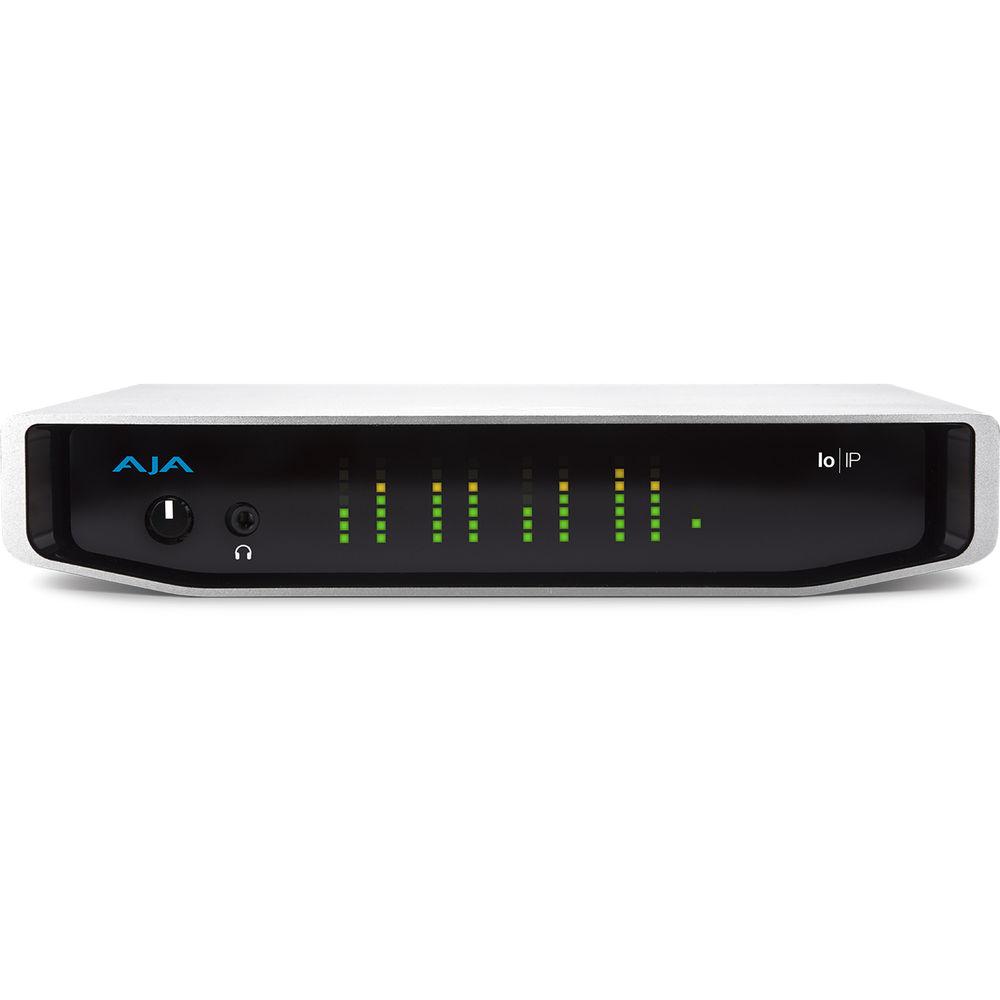

Product description The Io IP Professional Video and Audio I/O over IP for Thunderbolt 3 from AJA is suitable for multi-channel HD video and audio I/O requirements over IP. It features an ingest and output across a 10 GigE IP network with local monitoring over 3G-SDI and HDMI 2.0. Thunderbolt 3 enables the Io IP to transfer your video and audio in HD or SD from your Thunderbolt 3 equipped Mac or PC to anywhere over the network you choose.

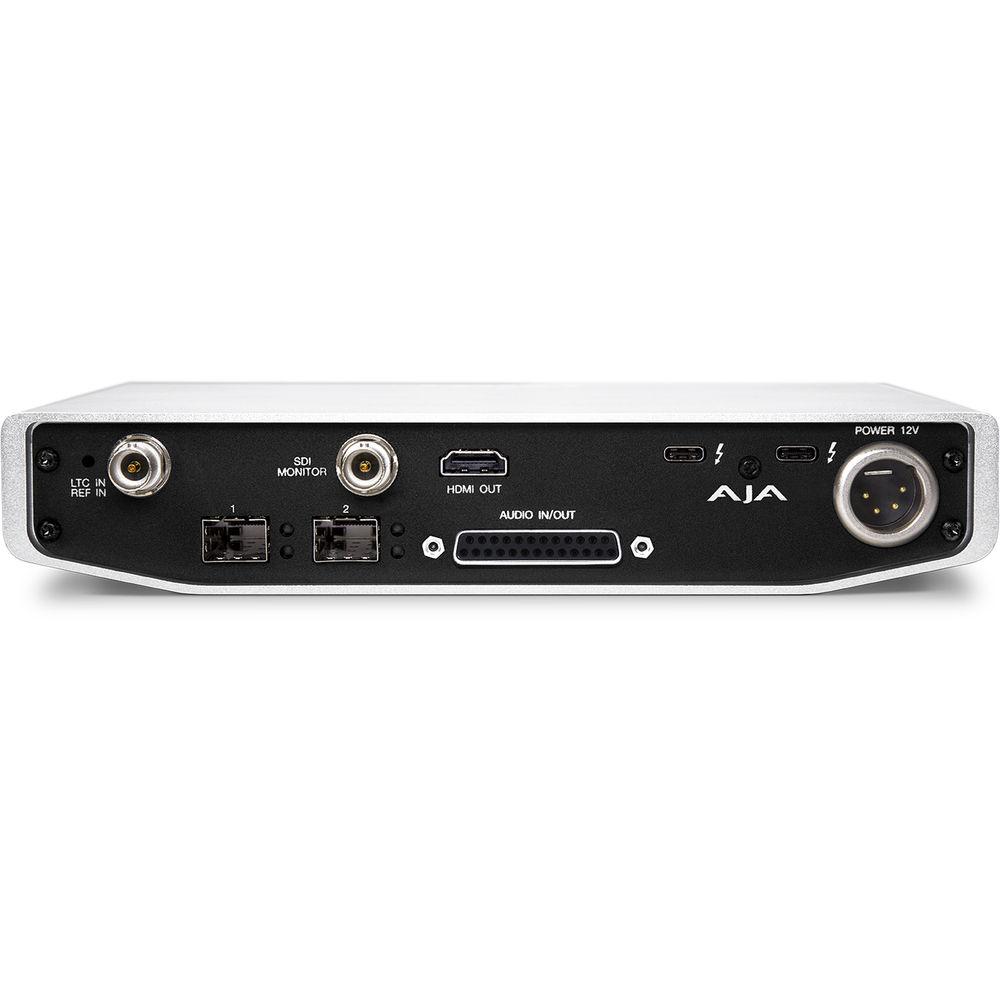

The device also has dual Thunderbolt 3 ports enabling daisy chaining for configuration flexibility. Two SFP+ cages provide multi-channel SMPTE standard HD support for easy routing of video with audio over 10 GigE IP networks. The device supports SMPTE 2022-6 video, audio, and VANC data over IP as well as offering SMPTE 2022-7 support for redundant signal support. For audio monitoring, you can choose from either four analog, eight embedded HDMI, or sixteen embedded SDI audio channels. -
- Aluminum construction
- Broadcast suite
- 3G-SDI and HDMI 2.0 outputs
- Four analog audio inputs
- Dual 10 GigE Connectivity
UPC: 812321031669 In the Box AJA Io IP Professional Video and Audio I/O over IP for Thunderbolt 3 Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA Io IP Professional Video and Audio I O over IP for Thunderbolt 3 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA Io IP Specs | Video Formats | HD: 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
HD: 1080PsF 23.98, 24, 25, 29.97, 30
HD: 1080i 25, 29.97
HD: 720p 50, 59.94, 60
SD: 625i 25
SD: 525i 29.97 | | Media Interface Exchange | SMPTE 2022-6, 2022-7
2 x SFP+ Cages (SFPs not included)
Recommended SFP+ Modules:
Finisar FTLX1471D3BCL (for single mode 1310 nm)
Arista Networks SFP-10G-SR Compatible 10GBASE-SR
Generic 850 nm 300 m DOM Transceiver (for multimode 850 nm) | | Video Input | IP: SMPTE 2022-6, 2022-7
Up to 4 channels inputs | | Video Output | IP: SMPTE 2022-6, 2022-7
Up to 4 channels output | | Video Output Digital | HDMI v2.0
30/36 bits/pixel, RGB or YUV, 6 Gb/s per color component
HDR 10 Support - HDR Infoframe metadata, compatible with HDMI 2.0a/CTA-861.3
HLG Support (compatible with HDMI 2.0b/CTA-861-G) | | Audio Input | IP: Up to 16-channel embedded audio, 24-bit per channel, 48 kHz synchronous | | Analog Audio Inputs | 4-Channel, 24- and 16-bit A/D analog audio, 48 kHz sample rate, balanced, using industry standard 4x XLR on DB-25 breakout cable (cable not included)
24 dBu full scale digital (0dBFS)
