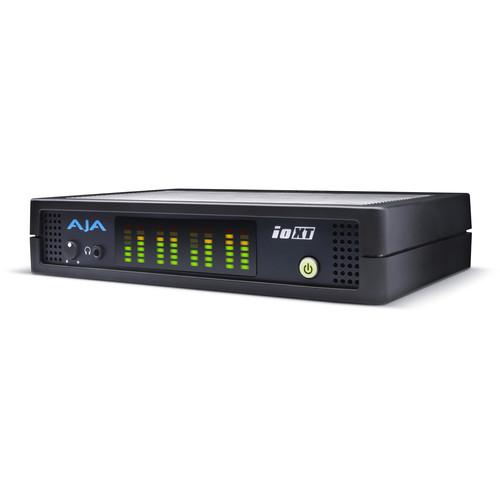

Product description The Io XT from AJA is a professional 3G-SDI/HDMI capture & playback device that serves as an editing solution for Macs equipped with Thunderbolt ports. With extensive I/O choices including 4:4:4 RGB, dual Thunderbolt ports for ultra-fast (up to 10 Gb/s) connections to both an editing suite and a storage device, and hardware-based up/down/cross conversion for HD and SD formats, this portable device is a strong choice for directing video- and audio-signal traffic into and out of your Mac editing computer – whether a desktop system or a Thunderbolt-enabled MacBook Pro.The Io XT has dual 3G/HD/SD-SDI inputs and two such outputs; these pairs can also be used for dual-link 4:4:4 RGB I/O. Supported 10-bit formats of that type include 1080i, 1080p, 1080PsF, and 720p. The device can also convert between 4:4:4 and 4:2:2 to set up single-link HD-SDI monitoring and output.Speaking of conversion, the Io XT features a 10-bit, broadcast-quality motion-adaptive up/down/cross conversion, from HD to SD and vice versa, as well as between 1080 and 720 HD formats – even at filmic 23.98 frame rates involving progressive segmented frames (720p23.98 to 1080PsF/23.98). All conversion is hardware-based, so it's available always for either ingest or playback. HDMI I/O comes in the form of HDMI 1.3 in and HDMI 1.4a out, which includes support for 3D display for monitoring those stereoscopic projects. If the digital I/O capabilities of the device aren't enough, Io XT also features a full slate of analog audio and video ports, including 12-bit component analog video output.In addition, Io XT features a BNC for either LTC or reference input, as well as one for LTC output. The RS-422 connector enables machine control, so you can drive any traditional tape-based VTR via the Io XT.Of course the Io XT is compatible with the most popular Mac-based NLEs, and its drivers are optimized for OS X, so the application you're using can control the advanced hardware capabilities that AJA has built into the device. In addition, AJA Control Room software provides an intuitive, all-in-one way to control the Io XT in order to configure it for your own specific workflow, customizing the audio and video capture, conversion, playback, and output features. AJA Control Room supports a variety of video, audio, and still file types. Note: Thunderbolt cable not included. Hardware Features - Dual Thunderbolt ports support "daisy-chaining" of multiple Thunderbolt-enabled devices, such as hard drives
- Dual 3G/HD/SD-SDI inputs and outputs
- Single link SDI 4:2:2 I/O
- Single-link 4:4:4 I/O (3G-SDI)
- HDMI input and output (with support for HDMI 1.4a 3D displays)
- Analog component/composite HD/SD output, 10-bit
- Video up, down, and cross conversion (hardware-based, 10-bit)
- Eight-channel embedded SDI audio i/o
- Eight-channel (four pairs) balanced analog audio output (using a DB-25 type cable)

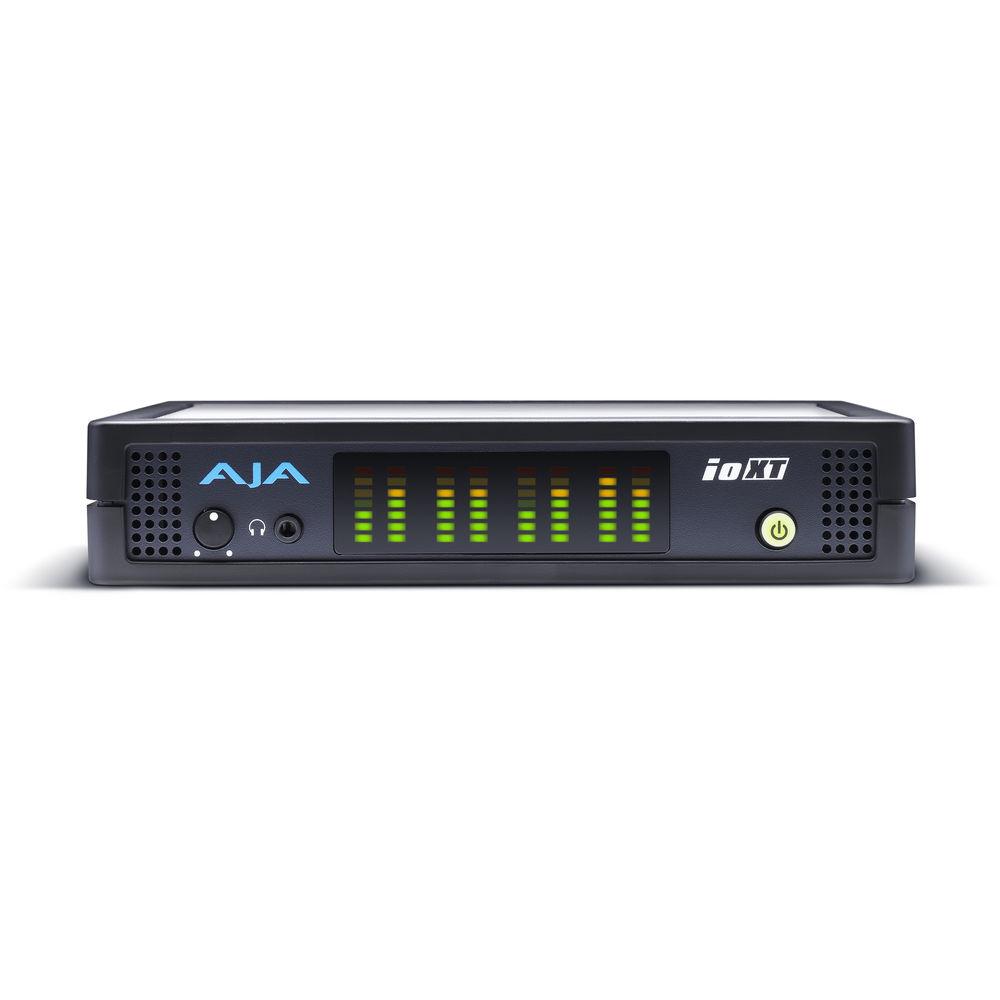

- Front-panel LED VU meters
- Headphone output with level control
- Reference input / LTC input (selectable)
- RS-422 control via Sony-style 9-pin connector
- 4-pin XLR Power (AC adapter included)
- Designed to be reliable, tough, and portable
UPC: 892448000915 In the Box AJA Io XT Professional Capture & Playback Device with Thunderbolt AC Adapter AJA Technical Support AJA Control Room Software 3 Year Limited Warranty Guides & Manuals tyvftsbxdydrzwtxuxfvc Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA Io XT Professional Capture & Playback Device with Thunderbolt in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the AJA Io XT Professional Capture & Playback Device with Thunderbolt can be downloaded in PDF format at the link stated below.

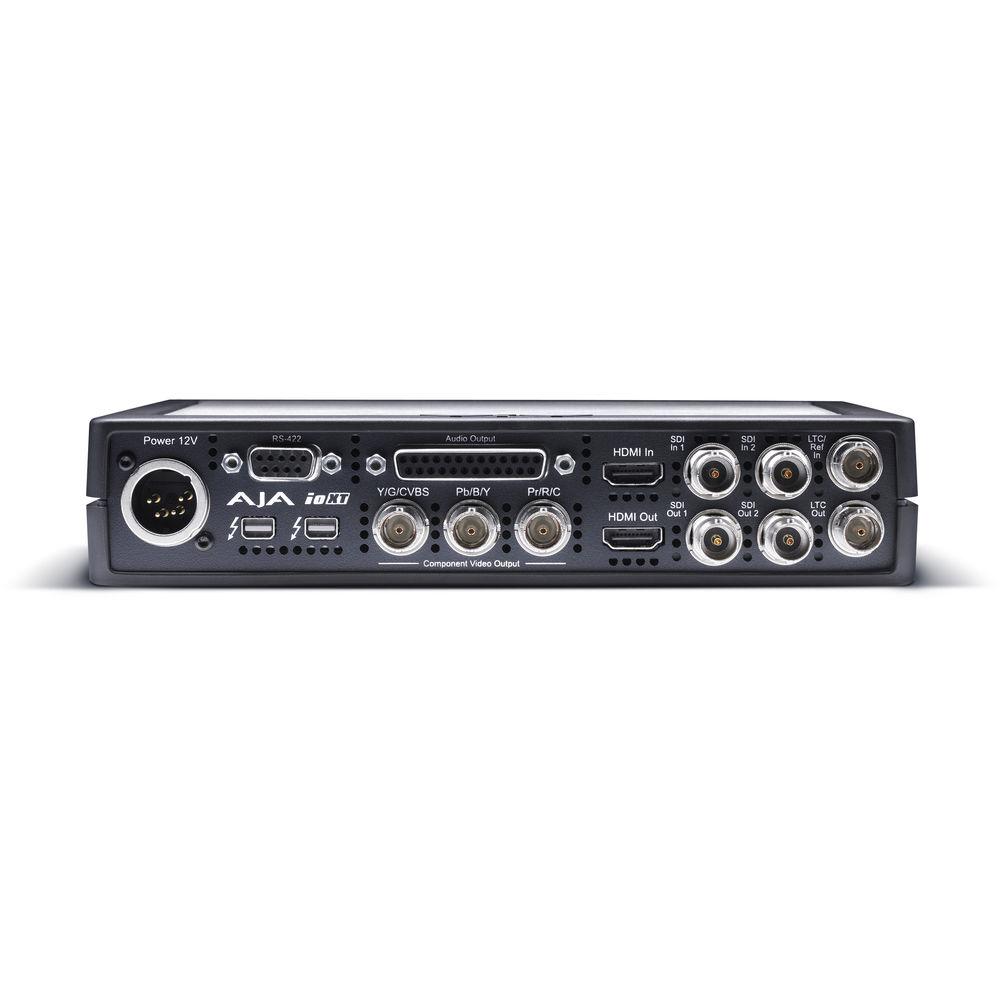

Technical parametersAJA Io XT Specs | Video Inputs | 2x BNC for 3G/HD/SD-SDI (SMPTE-259/292/296/424, 10-bit); Single-Link 4:2:2 or 4:4:4 (3G); Dual-Link HD 4:4:4
1x HDMI 1.3a
1D LUT support | | Video Formats | 525i29.97, 625i25, 720p23.98, 720p25, 720p50, 720p59.94, 720p60, 1080i25, 1080i29.97, 1080i30, 1080PsF/23.98, 1080PsF/24, 1080PsF/29.97, 1080PsF/30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 | | Video Outputs | Digital
2x BNC for 3G/HD/SD-SDI (SMPTE-259/292/296/424); Dual-Link 4:4:4
1x HDMI 1.4 (30/36 bits/pixel, RGB or YUV, 2.25Gb/s)
Analog
3x BNC for analog video
SD and HD output, 12-bit
HD: YPbPr, RGB
SD: YPbPr, RGB (component mode) or Composite + Y/C (composite mode with simultaneous Y/C) | | Audio I/O | Digital
24-bit SDI embedded audio I/O, 8-channel, 48kHz
Analog
1x DB-25 connection for 24-bit balanced analog audio output
1x 3.5mm headphone output with level control | | Reference Input | 1x BNC assignable to reference video or LTC input
Reference: Analog Color Black (1V) or Composite Sync (2V or 4V) | | RS-422 (Sony 9-pin) | Yes | | Time Code | 1x BNC assignable to LTC input or reference video
1x BNC for LTC output | | Computer Interface | 2x Thunderbolt ports (1 is loop-through for daisy-chaining) | | HD Up Conversion | Hardware 10-bit
Anamorphic: Full-screen
Pillar Box 4:3: Results in a 4:3 image in center of screen with black sidebars
Zoom 14:9: results in a 4:3 image zoomed slightly to fill a 14:9 image with black side bars
Zoom Letterbox: Results in image zoomed to fill full screen
Zoom Wide: Results in a combination of zoom and horizontal stretch to fill a 16:9 screen; this setting can introduce a small aspect ratio change | | HD Down Conversion | Hardware 10-bit
Anamorphic: full-screen
Letterbox: image is reduced with black top & bottom added to image area with the aspect ratio preserved top & bottom
Crop: image is cropped to fit new screen size | | HD Cross Conversion | Hardware 10-bit
1080i to 720p
720p to 1080i
720p to 1080PsF | | System Requirements | Mac system with free Thunderbolt port | | Power Connector | 1x 4-pin XLR (AC adapter included) | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 15.8 x 8.8 x 5.8" |
