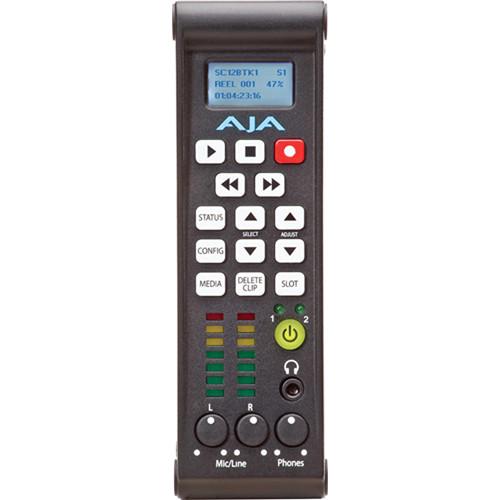

User Manual for AJA Ki Pro Mini Compact Field Recorder Click to enlarge the picture
Contents of the user manual for the AJA Ki Pro Mini Compact Field
- Product category: Recorders & Duplication AJA
- Brand: AJA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AJA Recorders & Duplication
 |
User manual for the AJA Ki Pro Mini Compact Field contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AJA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AJA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AJA product will considerably shorten its lifespan!
|

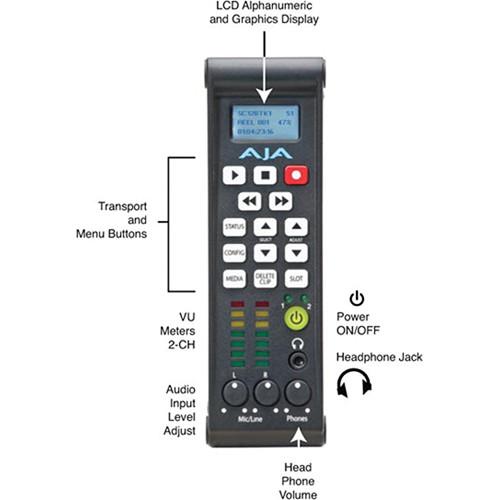

Product description The Aja Ki Pro Mini Compact Field Recorder adds extreme portability to the Ki Pro family. Bringing a file-based workflow to any production to be edited on Final Cut Pro, this miniature field recorder not only records edit-ready Apple ProRes footage from any SDI or HDMI video camera, it does so on easily available Compact Flash cards. Its small form factor allows it to be mounted on a tripod or camera with industry-standard adapters, while its powerful support of both SD and HD recording--via both SDI and HDMI--makes it an invaluable tool for on-set digital capture. - Simultaneously record to host camera and Ki Pro
- Bridge proprietary compression schemes by recording to Apple ProRes 422
- Bridge media complexity by recording to portable file-based storage
- Extend client review capabilities
- Bridge production and post-production, effectively eliminating log and capture
- Extend productive life of existing cameras
- Follows the camera everywhere, offering a tiny footprint, support for SDI & HDMI cameras, and simple CF card storage. Smaller than some battery packs, it mounts to virtually everything.

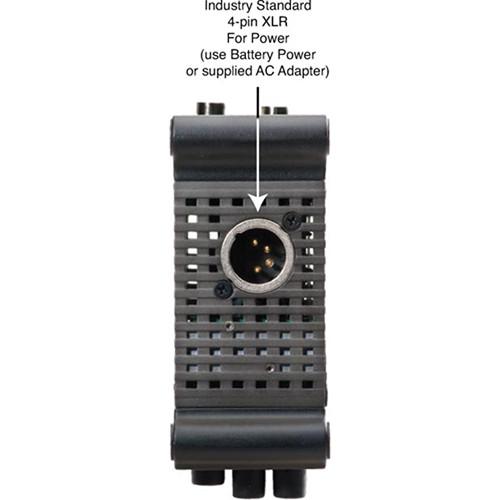

UPC: 812321030600 In the Box AJA Ki Pro Mini Compact Field Recorder 110/220 VAC Adapter w/4-pin XLR Connector Limited 3-Year Warranty User Manual PDF 6.4mbswueydsawczdzqbbzbbzzqxuabffydevu Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA Ki Pro Mini Compact Field Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA Ki Pro Mini Specs | Format | Apple ProRes 422 (HQ)
Apple ProRes 422
Apple ProRes (LT)

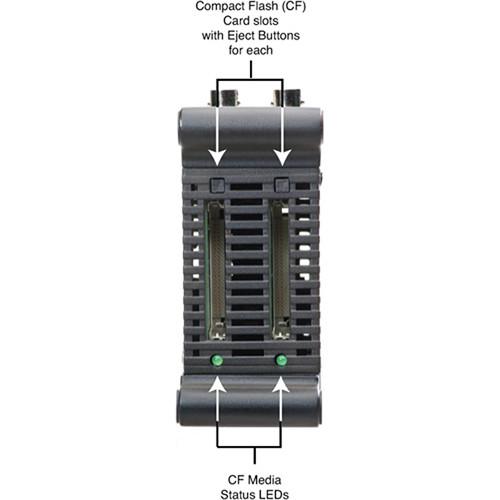

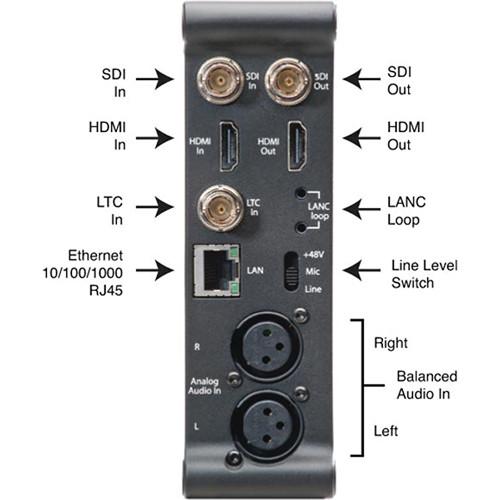

Apple ProRes (Proxy) | | Camera Compatibility | Any SDI/HDMI-capable Camera | | Media Compatibility | Compact Flash Cards | | Media Card Slots | (2) Compact Flash | | Input/Output | HD/SD-SDI w/24-bit Embedded Audio: BNC (x1)
HDMI w/24-bit Embedded Audio: SMPTE-259/292/296 (x1)
Analog Line/Mic Audio: XLR 24-bit A/D (x2 Input)
Ethernet: RJ-45 (x1)
Timecode: BNC (x1 Input)
Headphones: 3.5mm Mini Jack (x1 Output)
LANC Loop (x2) | | Power Requirements | 100-240 VAC | | Power Consumption | 12 VDC | | Dimensions (WxHxD) | 1.8 x 5.4 x 3.5" (4.6 x 13.7 x 8.9 cm) | | Weight | 1.26 lbs (570 g) | | | | Package Weight | 3.1 lb | | Box Dimensions (LxWxH) | 9.8 x 7.2 x 3.3" |
Rating68% users recommend this product to others. And what about you?
This product has already been rated by 14 owners. Add your rating and experience with the product.
