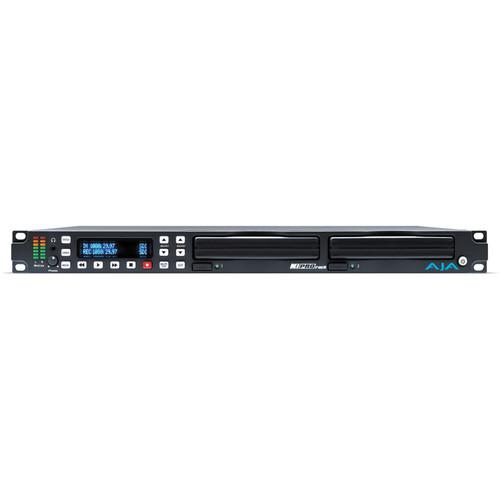

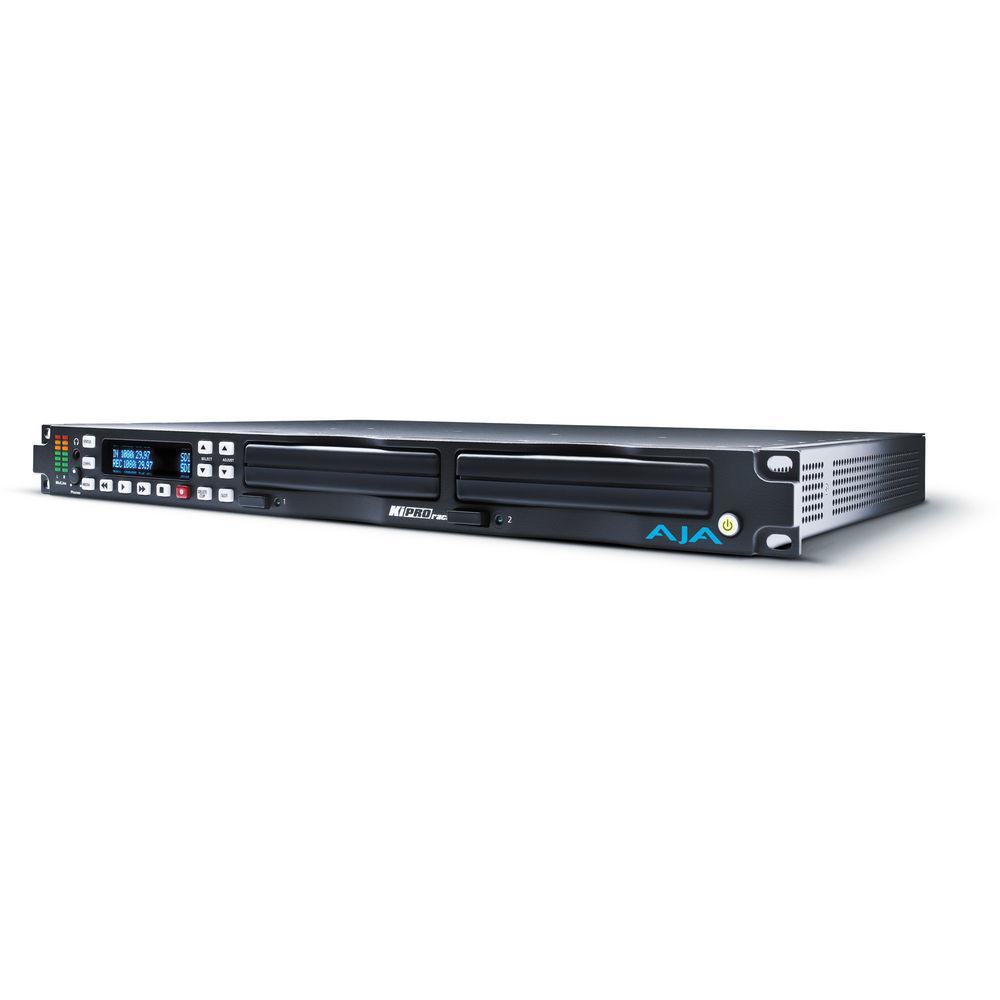

Product description The AJA Ki Pro Rack is a tapeless, file-based video recorder that captures and records in ready-to-edit ProRes and DNxHD codecs, in 10-bit 4:2:2 full-raster files, and onto HDD or SSD storage modules (sold separately). 10-bit 4:2:2 color depth provides superior dynamic range, original picture representation, and flexibility in adjusting color and balance in post. Two slots are available for the storage modules.
Ki Pro features RS-422 control for integrating with editing systems, external controllers, and with tape decks (to capture tape-based media as ProRes). Also by RS-422, assemble edits can be sent direct to storage modules, often faster than rendering to ProRes or DNxHD.
The panel controls are for the most part identical to those of tape decks. The display screen and operating system work hand-in-hand to facilitate full configuration without any connection to a separate computer: all information is displayed clearly on the screen and the OS control menu is a fast and flat one.

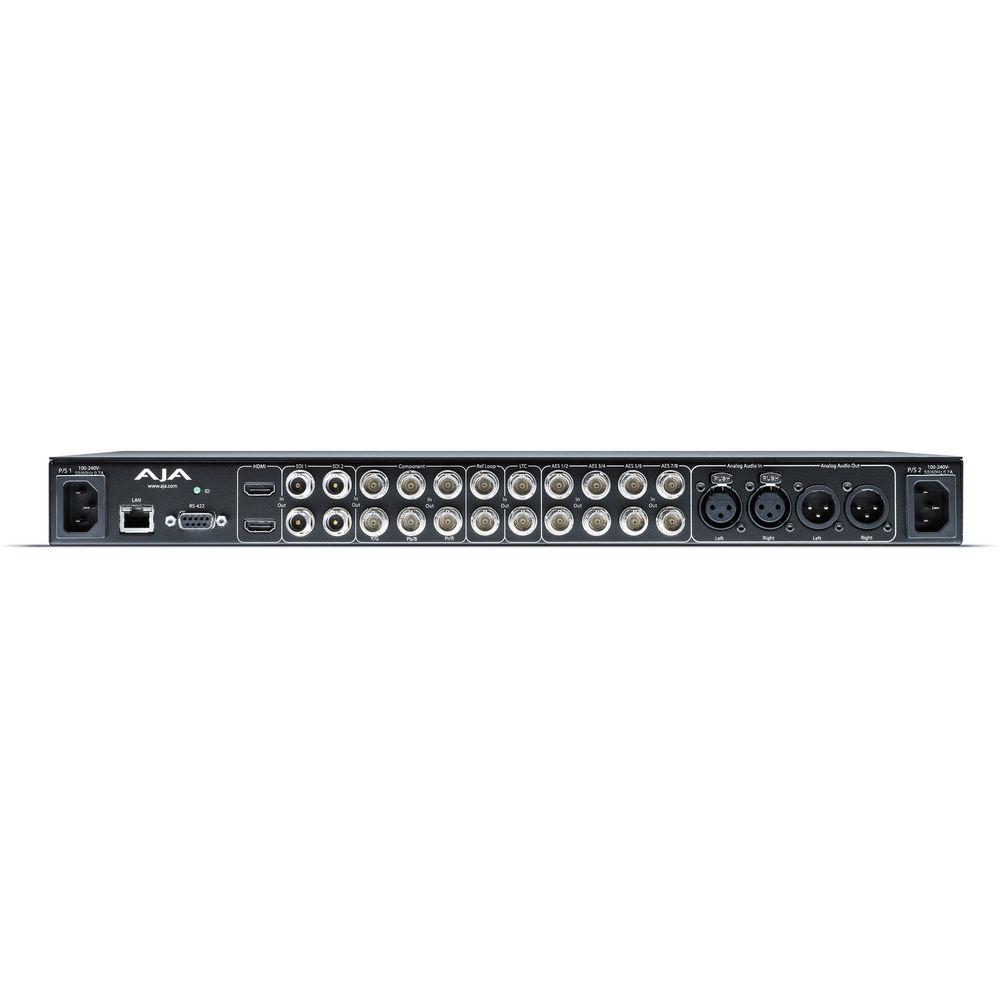

The set of connections is diverse and includes video and audio ports that are the same kind as those of tape decks. Accordingly, the Ki Pro is compatible with the cabling and routing systems used with tape decks. Also available is an Ethernet port by which files can be transferred (minimizing the need for staff involvement and allowing better employment of staff).
Up/down/cross conversion can be performed right inside the hardware, both during recording or playback. A second device won't be needed for conversions.
As for remote control, the Ki Pro can be fully configured and controlled via a web browser per an IP address assignment. Multiple Ki Pro Racks can be networked together for control over a single interface. - Multi Function Video Recorder
-
- File-Based 10-bit 4:2:2 full-raster video recorder
- Captures in "ready-to-edit" ProRes and DNxHD files
- Records direct onto optional HDD/SSD storage modules
- Internal up/down/cross conversion during recording/playback
- Control Options
-
- Panel controls are about identical to those of tape decks
- Full configuration via display screen and OS flat control menu
- RS-422 integration with editing systems / controllers / tape decks
- Assemble edits can be sent directly to storage modules over RS-422
- Control and configuration can fully be remote via web per an assigned IP
- Multiple Ki Pro Racks can be networked together for control over a single interface
UPC: 892448000359 In the Box AJA Ki Pro Rack 3-Year International Warranty User Manual PDF 4.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA Ki Pro Rack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA Ki Pro Rack Specs | Video Input | Digital:
SD/HD-SDI x2:
(1 channel, selectable input / SMPTE-259/292/296)
HDMI x1
Analog:
SD/HD component x3 BNCs:
(SMPTE/EBU N10, Betacam 525 line, Betacam 525J, YPbPr 12-bit A/D, 2x oversampling) | | Video Output | Digital:
SD/HD-SDI x1:
(SMPTE-259/292/296)
HDMI x1
Analog:
Composite x1 BNC:
(NTSC, NTSCJ, PAL 12-bit D/A, 8x oversampling)
SD/HD component x3 BNCs:
(SD: SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB 12-bit D/A, 8x oversampling)
(HD: YPbPr, RGB 12-bit D/A, 2x oversampling)
(all video outputs are simultaneously active) | | Audio Input | Digital:
24-bit, 8-channel AES x4 BNCs (48kHz)
24-bit, 8-channel SDI-embedded (48kHz)
2-channel HDMI-embedded
Analog:
24-bit 2-channel balanced A/D XLR x2 (48kHz)
Input level: line | | Audio Output | Digital:
24-bit, 8-channel AES x4 BNCs (48kHz)
24-bit, 8-channel SDI-embedded (48kHz)
2-channel HDMI-embedded
Analog:
24-bit 2-channel balanced D/A x2 XLR (48kHz) | | Network | 10/100/1000 Ethernet (RJ45)
Embedded web server for remote control | | User Interface | 2 x 20 character display panel, with dedicated buttons | | Timecode | LTC timecode input and output via SDI-embedded RP188 timecode
On-screen timecode display on SDI 2 output | | Serial Port | RS-422 (slave pinout) / 9-pin (available beginning with version 2.0 firmware)
Connector pinout:
1 GND
2 TX -
3 RX +
4 GND
5 No Connection
6 GND
7 TX +
8 RX -
9 GND
Shell GND | | Conversion | 10-bit hardware up-conversion:
Anamorphic: full-screen
Pillar box 4:3 -- results in a 4:3 image in center of screen with black sidebars
Zoom 14:9 -- results in a 4:3 image zoomed slightly to fill a 14:9 image with black sidebars
Zoom letterbox: image zoomed to fill screen
Zoom wide: combination of zoom and horizontal stretch to fill 16:9 screen; this setting can introduce a small aspect ratio change
10-bit hardware down-conversion:
Anamorphic: full-screen
Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved
Crop: image is cropped to fit new screen size
10-bit hardware cross-conversion:
1080i to 720p
720p to 1080i | | Storage Module Drive Bays | 2 (each with eject button and select LED) | | Power | Voltage: 100-240 VAC
Typical operating power: 40W | | Temperature | Operating temperature: 41 to 104°F (5 to 40°C)
Safe storage temperature (with power off): -4 to 140°F (-20 to 60°C) | | Rack Height | 1RU | | Dimensions | 1.75 x 19 x 12.5" (4.45 x 48.26 x 31.75 cm)
(12.5" depth spans from the front panel to the back of the deepest connector) | | | | Package Weight | 11.35 lb | | Box Dimensions (LxWxH) | 21.3 x 18.6 x 7.8" |
