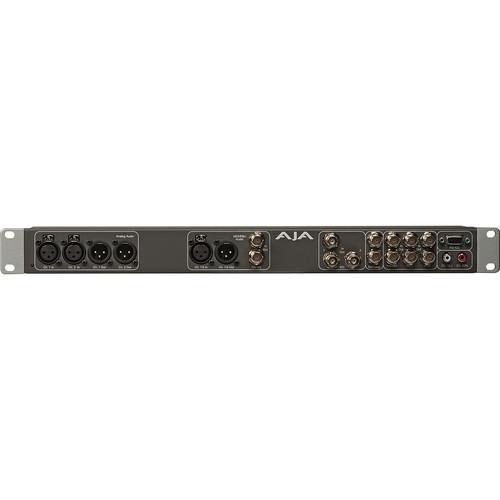

Product description AJA's KL Box Breakout Box for Kona-LH, Kona-LHe and Kona-LSe offers functionality and versatility you will find in a breakout box such as this. This box can be easily rack-mounted or placed on top of a broadcast monitor or editing desk for versatility.
The KL Box Breakout Box for Kona-LH, Kona-LHe and Kona-LSe connects the analog and digital worlds by offering I/O for both up conversion and Dual Link. This box provides optimum quality for SD and HD, which is the maximum allowed in SMPTE SDI standards.
The KL Box Breakout Box for Kona-LH, Kona-LHe and Kona-LSe also includes hardware sample-rate conversion on AES inputs eliminating source-synchronizing requirements. As the only card available supporting HD/SD analog I/O, KL Box Breakout Box for Kona-LH, Kona-LHe and Kona-LSe is perfect for not only uncompressed, but also HDV and other diverse workflows. - Rack-mountable
- This box can be easily rack-mounted or placed on top of a broadcast monitor or editing desk for versatility.
- Optimum Quality
- This box provides optimum quality for SD and HD which is the maximum allowed in SMPTE SDI standards.
- Capturing
- Using the QuickTime format, this box helps when capturing directly to 10-bit files on disk, and also supports many legacy 8-bit formats for backward compatibility. This box also supports DVCPROHD and HDV, DV25, DV50, JPEG, and much more.
- Audio Support
- This unit offers all the audio support you would ever want including native OSX multi-channel audio and 24-bit AES/EBU digital audio at 48 kHz for digital production.
- Hardware Sample Rate
- This Breakout Box for Kona-LH, Kona-LHe and Kona-LSe also includes hardware sample-rate conversion on AES inputs eliminating source-synchronizing requirements.
- Diverse Workflow
- As the only card available supporting HD/SD analog I/O, this Breakout Box for Kona-LH, Kona-LHe and Kona-LSe is perfect for not only uncompressed, but also HDV and other diverse workflows.
In the Box AJA KL Box - Breakout Box for Kona-LH, Kona-LHe and Kona-LSe User Manual 3-Year Limited Warranty Brochure PDF 2.7mbxtsxutcvesbu Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA KL Box - Breakout Box for Kona-LH, Kona-LHe and Kona-LSe in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA KL-BOX-LH Specs | Compatible with | for Kona-LH, Kona-LHe and Kona-LSe | | Host Connection | 2 Cables (60-pin connector & RS422) | | Input and Output Connectors | SD-SDI/HD-SDI Video/Audio
SDI Output 2 BNC
SDI Output 1 BNC
SDI Input BNC
Analog Video
Y/CVBS In BNC
Pb/Y In BNC
Pr/C In BNC
Y/G/CVBS Out BNC
Pb/B/Y Out BNC
Pr/R/C Out BNC
Reference Input BNC
Balanced Audio
Analog Audio Channel (1 Input)
Analog Audio Channel (2 Input)
Analog Audio Channel (1 Output)
Analog Audio Channel (2 Output)
AES Input Channels 1 & 2
AES Output Channels 1 & 2 | | Agency Certifications | Hardware: KONA-2
Software: Apple Final Cut Pro 5, Adobe AfterEffects, PhotoShop, Quicktime | | System Requirements | Kona-LH, Kona-LHe or Kona-LSe
Mac OS X | | Dimensions (WxHxD) | 19 x 3 (W x H)(48.26 x 7.62cm) | | Weight | 7 lbs (3.175 kg) | | | | Package Weight | 6.55 lb | | Box Dimensions (LxWxH) | 22.2 x 6.7 x 6.4" |
