User Manual for AJA KONA 1-S Short 3G-SDI 2K Capture & Playback Card Click to enlarge the picture
Contents of the user manual for the AJA KONA 1-S Short 3G-SDI 2K
- Product category: Computer Hardware AJA
- Brand: AJA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AJA Computer Hardware
|
User manual for the AJA KONA 1-S Short 3G-SDI 2K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AJA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AJA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AJA product will considerably shorten its lifespan!
|

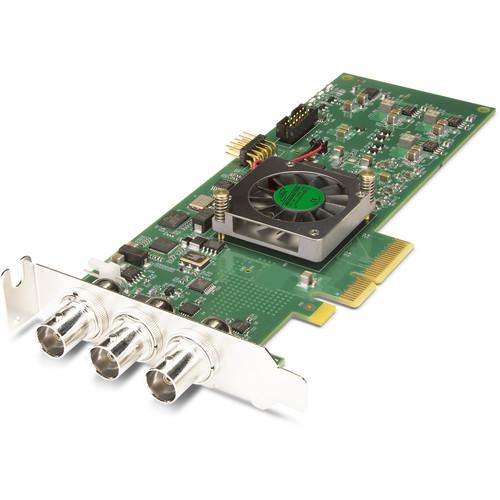

Product description The AJA KONA 1-S is the short, low-profile version of the KONA 1 capture and playback card. It's designed for OEM developers and allows the user to make an internal connection for an optional, external RS-422 9-pin connector (while the tall version features an integrated 9-pin connector). The card is Mac/Windows/Linux 2-lane PCIe 2.0-compatible and offers single-channel 3G-SDI 2K/HD 60p frame-accurate input/output and a selectable reference/LTC input. It also allows simultaneous monitoring during capture. - Key Features
-
- Single-channel 3G-SDI 2K/HD 60p capture and playback
- Short, low-profile version for OEM developers (allows user to make internal connection for external RS-422 9-pin connector)
- Selectable HD/SD reference/LTC input
- Simultaneous monitoring during capture
- Mac/Windows/Linux 2-lane PCIe 2.0 compatible
- Full-size BNC ports
- 16-channel SDI embedded audio input/output, 24-bit/48 kHz
- ANC capture and processing
- 8-/10-bit YCbCr and RGB frame buffer formats
UPC: 812321030990 In the Box AJA KONA 1-S Short 3G-SDI 2K Capture & Playback Card Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA KONA 1-S Short 3G-SDI 2K Capture & Playback Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA KONA 1 Specs | Video Formats | 2048 x 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
2048 x 1080PsF at 23.98, 24, 25
1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080i at 50, 59.94, 60
1080PsF at 23.98, 24, 25, 29.97, 30
720p at 50, 59.94, 60
625i at 50
525i at 59.94 | | Video Input | 1 x 3G-SDI on BNC, SMPTE-259/292/296/424, supports 16-channel 24-bit/48 kHz synchronous embedded audio | | Output | 1 x 3G-SDI on BNC, SMPTE-259/292/296/424, supports 16-channel 24-bit/48 kHz synchronous embedded audio | | Reference/LTC Input | 1 x 3G-SDI on BNC, analog color black or HD tri-level sync, LTC | | Interface | 2-lane PCIe 2.0 | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Relative Humidity | 10-90% non-condensing | | Operating Altitude | < 9850' / < 3000 m | | Dimensions | 0.75 x 7.25 x 3.1" / 1.9 x 18.4 x 7.9 cm | | Weight | Approx. 0.3 lb / 135 g | | | | Package Weight | 0.73 lb | | Box Dimensions (LxWxH) | 9.8 x 6.4 x 3.2" |
