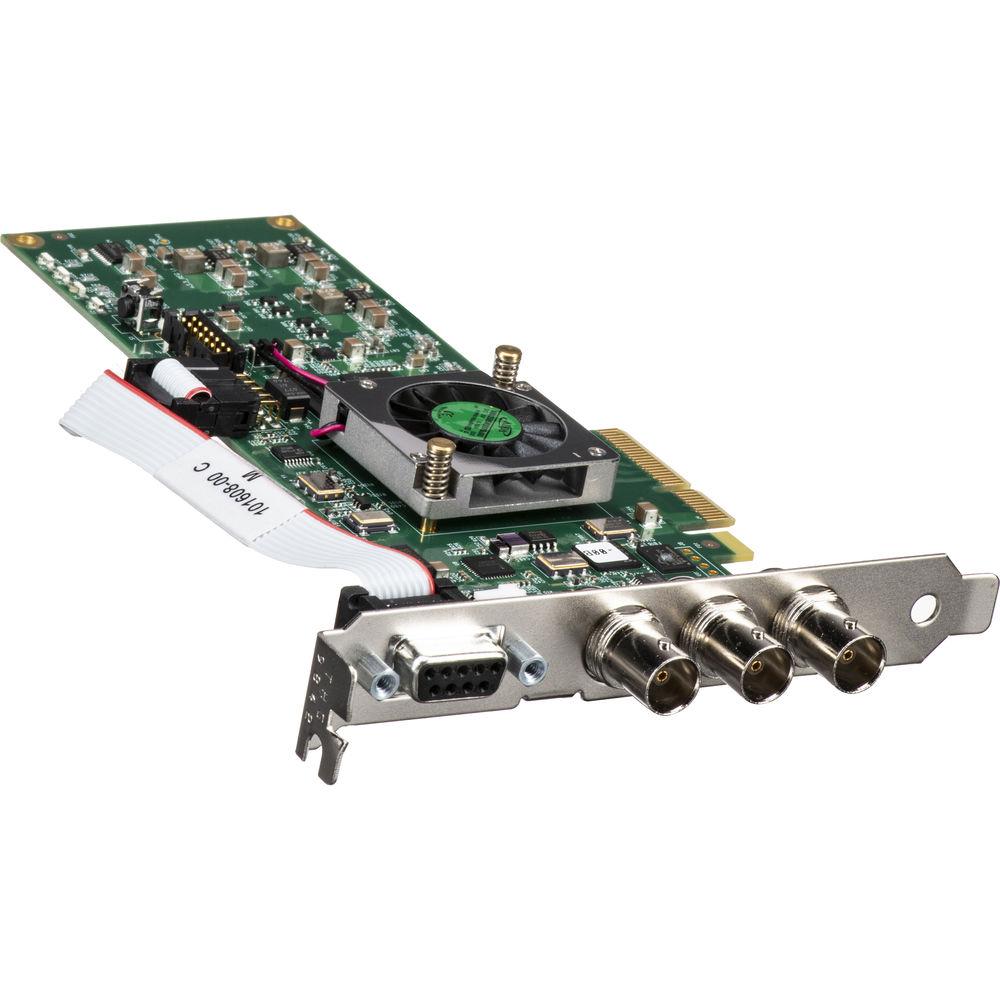

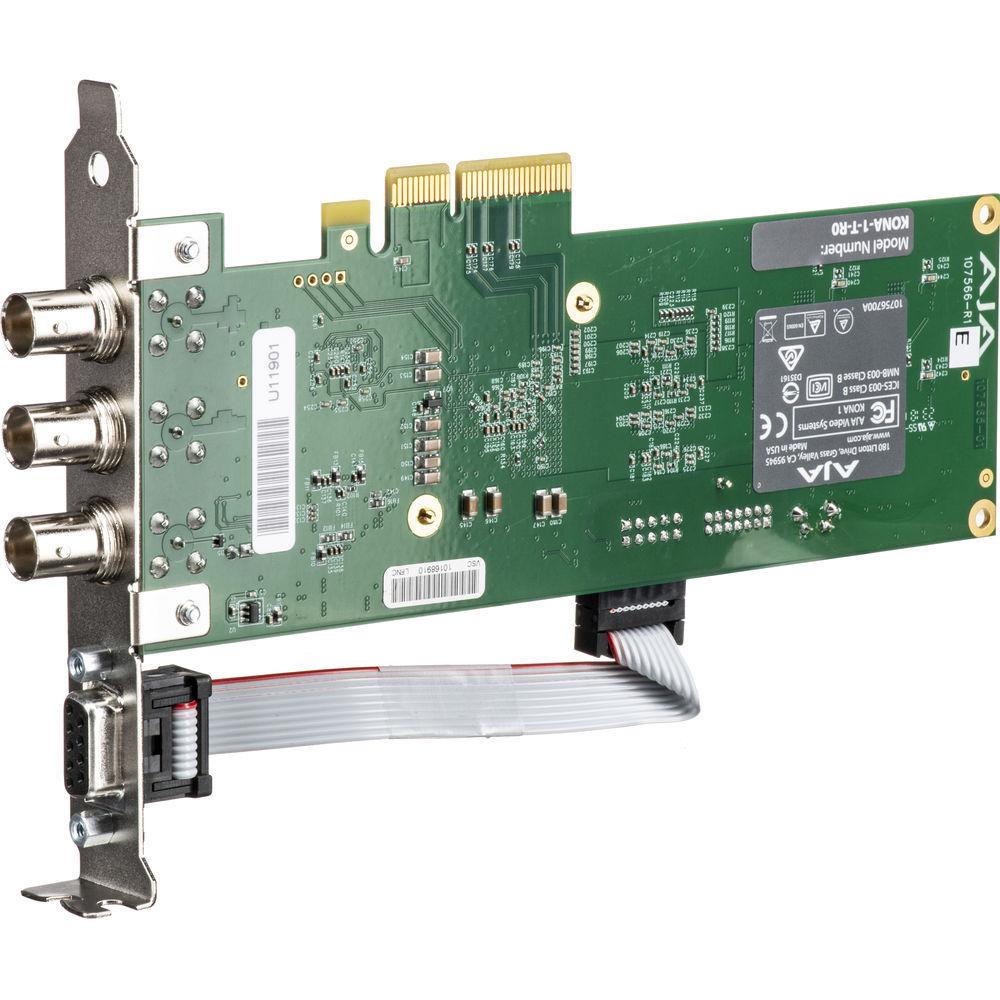

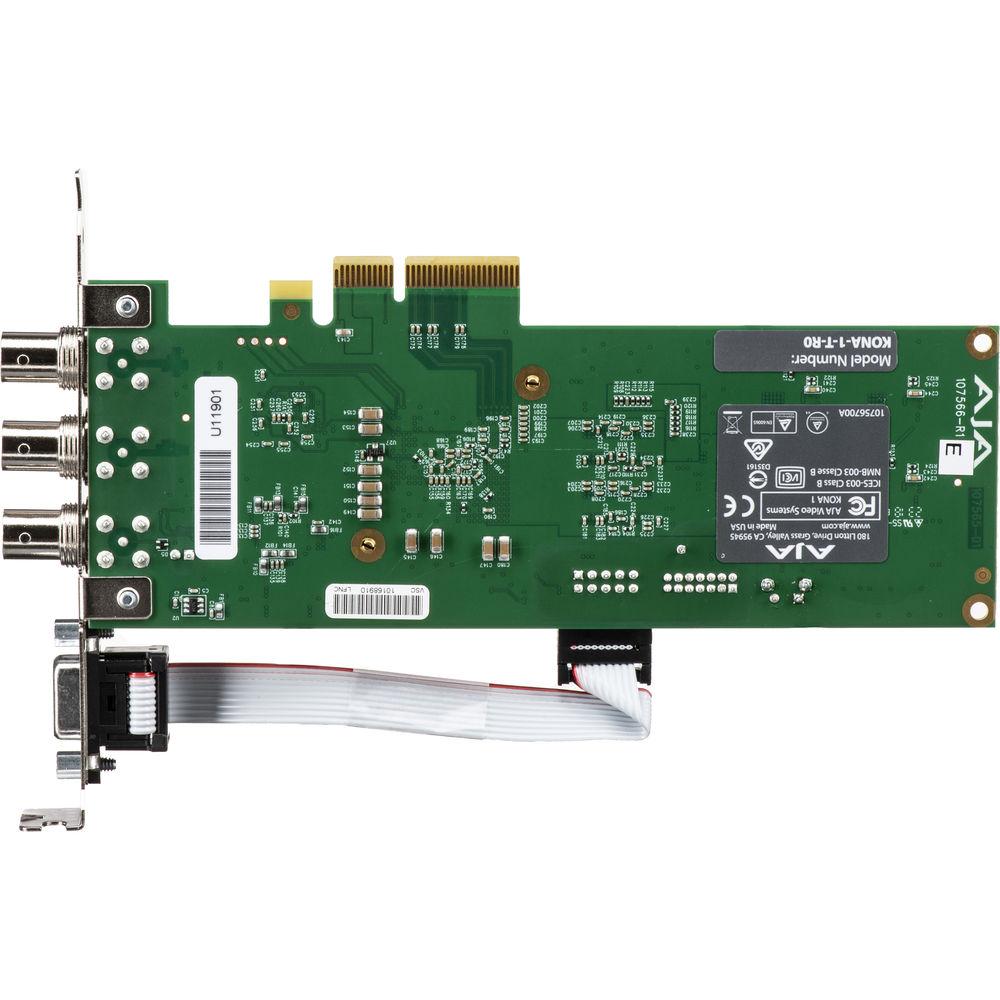

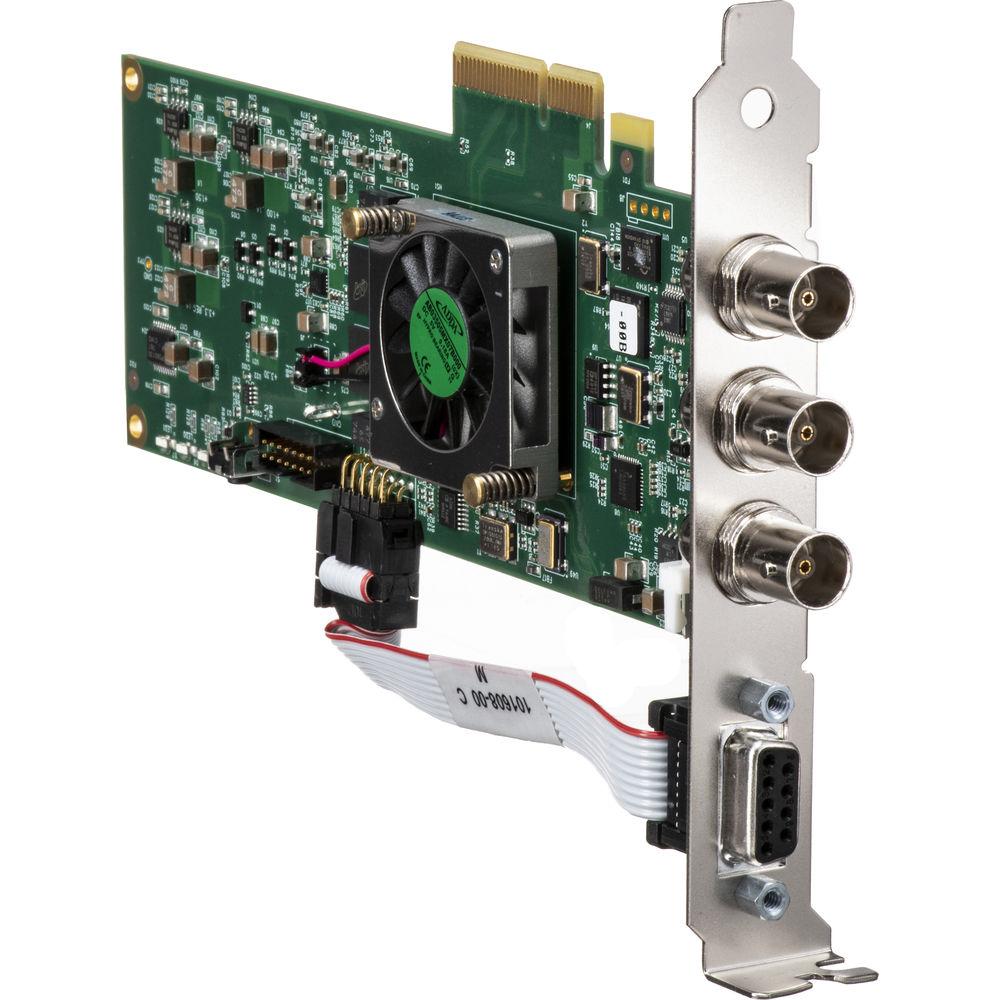

Product description The AJA KONA 1-T is the tall, consumer version of the KONA 1 capture and playback card. It's Mac/Windows/Linux 2-lane PCIe 2.0-compatible and offers single-channel 3G-SDI 2K/HD 60p frame-accurate input/output and a selectable reference/LTC input. It also features an integrated, exposed 9-pin RS-422 control port (while the short version is designed for OEM developers and comes without this port). The KONA 1-T allows efficient capture, monitoring, and/or playback and also supports simultaneous monitoring during capture. - Key Features
-
- Single-channel 3G-SDI 2K/HD 60p capture and playback
- Tall, consumer version with RS-422 9-pin connector
- Selectable HD/SD reference/LTC input
- Simultaneous monitoring during capture
- Mac/Windows/Linux 2-lane PCIe 2.0 compatible
- Full-size BNC ports
- 16-channel SDI embedded audio input/output, 24-bit 48 kHz
- ANC capture and processing
- 8-/10-bit YCbCr and RGB frame buffer formats
In the Box AJA KONA 1-T Tall 3G-SDI 2K Capture & Playback Card Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA KONA 1-T Tall 3G-SDI 2K Capture & Playback Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA KONA 1 Specs | Video Formats | 2048 x 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
2048 x 1080PsF at 23.98, 24, 25
1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080i at 50, 59.94, 60
1080PsF at 23.98, 24, 25, 29.97, 30
720p at 50, 59.94, 60
625i at 50
525i at 59.94 | | Video Input | 1 x 3G-SDI on BNC, SMPTE-259/292/296/424, supports 16-channel 24-bit/48 kHz synchronous embedded audio | | Output | 1 x 3G-SDI on BNC, SMPTE-259/292/296/424, supports 16-channel 24-bit/48 kHz synchronous embedded audio | | Reference/LTC Input | 1 x 3G-SDI on BNC, analog color black or HD tri-level sync, LTC | | Serial Control | 1 x RS-422 9-pin D-connector
Pinout:
1 - GND
2 - RX-
3 - TX+
4 - GND
5 - No connection
6 - GND
7 - RX+
8 - TX-
9 - GND
Shell - GND | | Interface | 2-lane PCIe 2.0 | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Relative Humidity | 10-90% non-condensing | | Operating Altitude | < 9850' / < 3000 m | | Dimensions | 0.9 x 7.4 x 4.8" / 2.2 x 18.8 x 12.1 cm | | Weight | Approx. 0.3 lb / 135 g | | | | Package Weight | 0.625 lb | | Box Dimensions (LxWxH) | 9.8 x 6.45 x 3.25" |
