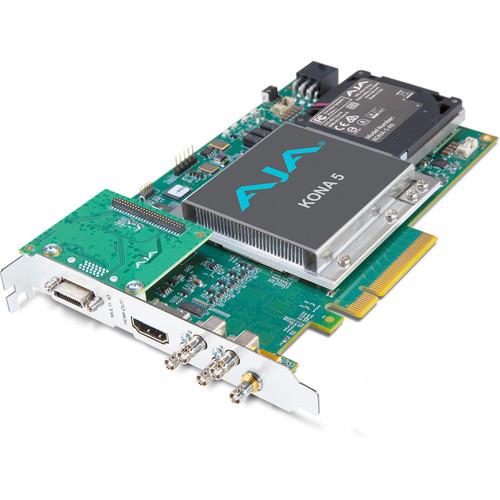

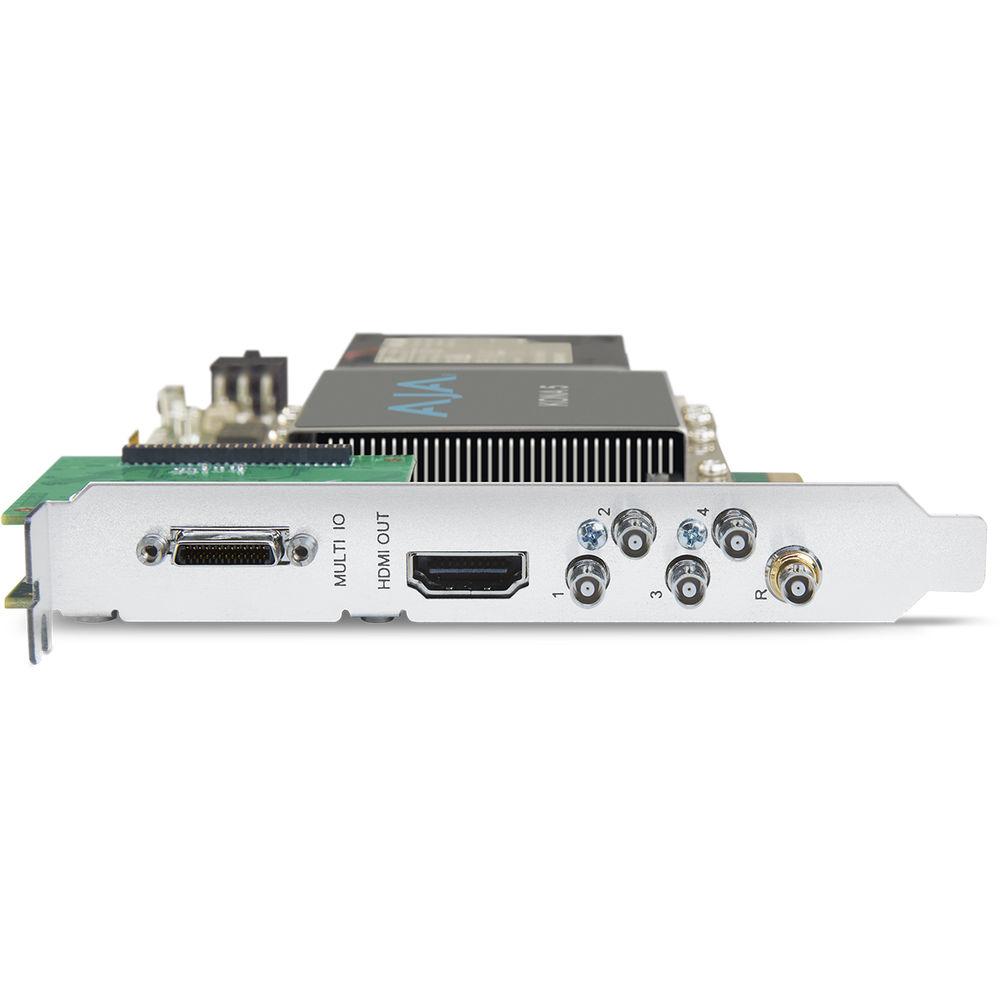

Product description The AJA KONA 5 is an 8-lane PCIe 3.0 I/O card designed for demanding video and audio editing workflows. It features four bidirectional 12G-SDI HD-BNC connectors for ingest and output, an HDMI 2.0 output for monitoring, and a reference input. An included breakout cable additionally provides AES audio input/output, LTC timecode input/output, and an RS-422 connection. The KONA 5 supports up to HFR DCI 4K and HDR10/HLG HDR video and up to 12-bit 4:4:4 color spaces, including via the HDMI output.
Being bidirectional, the SDI connectors allow for simultaneous capture and monitoring over SDI for DCI, UHD, 2K, and HD video. 12G-capable, the connectors also provide less points of failure while offering 6G/3G/1.5G backwards-compatibility. When used as 3G-SDI for DCI/UHD video, all four connectors can be used for input or output only. The KONA 5 also has a built-in hardware downstream keyer that allows graphics and images to be easily overlaid on the input video in real time. - Compatibility
-
- Adobe Speedgrade (up to 2015.1)
- Adobe Premiere Pro
- Apple FCP X
- Avid Media Composer
- Avid Media Composer - NewsCutter Option
- Avid Media Composer - Symphony Option
- Adobe After Effects
- Adobe Photoshop
- Adobe Flash Media Live Encoder
- OBS (Ubuntu Linux Only)
- Telestream Wirecast
- Adobe Audition CC
- Avid ProTools
- Compatibility with other applications is in the works
- Breakout Cable
-
- 8 channels of AES/EBU inputs on 4 x BNC
- 8 channels of AES/EBU outputs on 4 x BNC
- LTC input and output on 2 x BNC
- RS-422 on 9-pin connector
- HDR
- KONA 5 delivers HDR compatibility to HDMI displays with support for HLG and HDR10 with HDR Infoframe metadata, in accordance with HDMI2.0a/CTA-861.3 and HD
- Sync Up
- KONA 5 can be locked to an external reference for integration into larger productions, or feed LTC in and out to ensure footage captured with KONA 5 has the proper timecode
- Hardware Keying
- The built-in hardware downstream keyer support graphics with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte

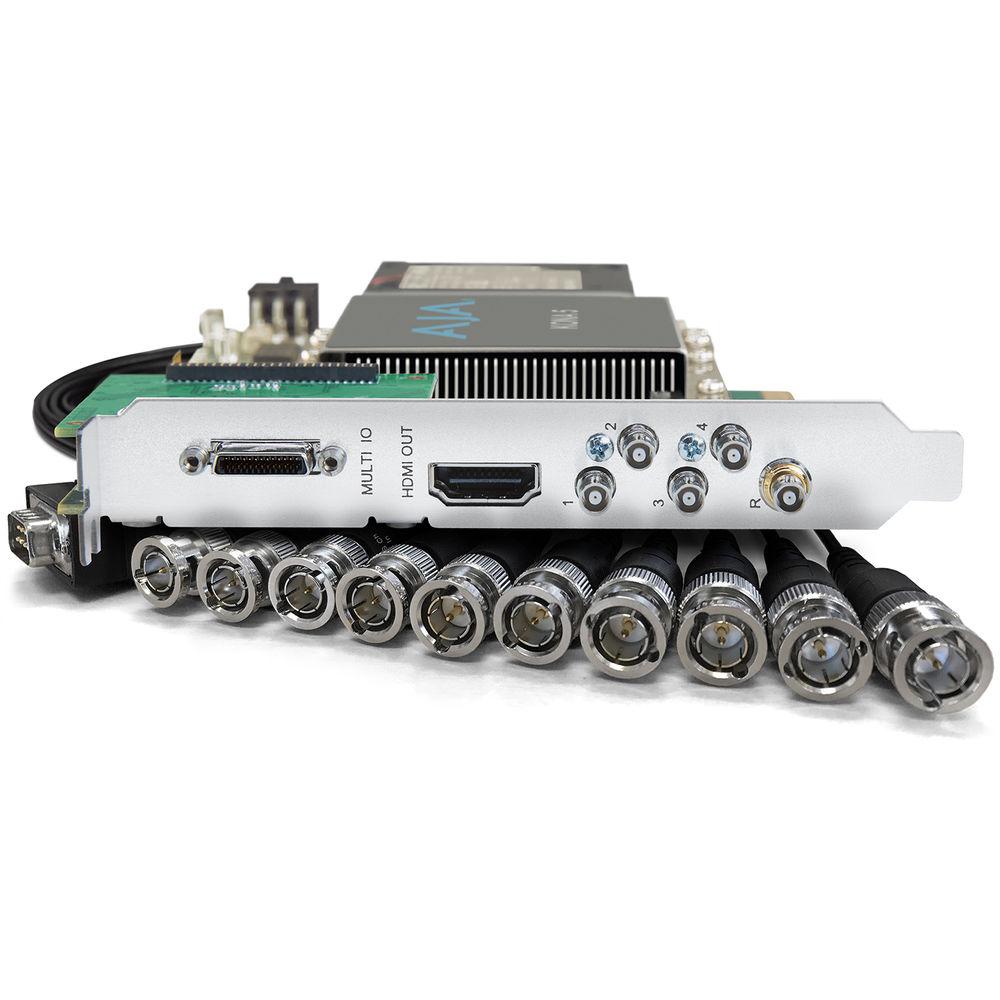

UPC: 812321031676 In the Box AJA KONA 5 12G-SDI 4K Capture & Playback Card - Breakout Cable
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA KONA 5 12G-SDI 4K Capture & Playback Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA KONA 5 Specs | Video Formats | 4096 x 2160 at 60/59.94/50/48/47.95/30/29.97/25/24/23.98
3840 x 2160 at 60/59.94/50/48/47.95/30/29.97/25/24/23.98
2048 x 1080p at 60/59.94/50/48/47.95/30/29.97/25/24/23.98
2048 x 1080PsF at 30/29.97/25/24/23.98
1080p at 60/59.94/50/48/47.95/30/29.97/25/24/23.98
1080PsF at 30/29.97/25/24/23.98
1080i at 60/59.94/50
720p 60/59.94/50
625i at 50
525i at 59.94 | | SDI Input & Output | 4 x Bidirectional 12G-SDI on HD-BNC Connectors, 6G/3G/1.5G Backwards Compatible
12G-SDI/6G-SDI Configured Inputs Support DCI/UHD 4K Only. For DCI/UHD 4K over 12G-SDI, Capture and Monitoring Can Be Simultaneous. For 2K/HD, Capture and Monitoring Can Also Be Simultaneous. For DCI/UHD 4K Over 3G-SDI, All Four Connections Must Be Used for Either Input or Output.
Input:
12G-SDI: SMPTE-2082, 12-/10-/8-Bit
6G-SDI: SMPTE-2081, 10-/8-Bit
3G-SDI: SMPTE-259/292/296/424/425, 12-/10-/8-Bit (DCI/UHD 4K 4:4:4 via 4 x 3G-SDI)
1.5G-SDI: SMPTE 372M, 12-/10-/8-Bit (Dual Link HD 4:4:4 via 2 x 1.5G-SDI)
1.5G-SDI: SMPTE 292M, 10-/8-Bit (Single Link 4:2:2 via 1 x 1.5G-SDI)
16-Channel, 24-/16-Bit SDI Embedded Audio, 48 kHz Sample Rate, Synchronous
Output:
12G-SDI: SMPTE-2082, 12-/10-/8-Bit
6G-SDI: SMPTE-2081, 10-/8-Bit
3G-SDI: SMPTE-259/292/296/424, 12-/10-/8-Bit (DCI/UHD 4K 4:4:4 via 4 x 3G-SDI)
1.5G-SDI: SMPTE 372M, 12-/10-/8-Bit (Dual Link HD 4:4:4 via 2 x 1.5G-SDI)
1.5G-SDI: SMPTE 292M, 10-/8-Bit (Single Link 4:2:2 via 1 x 1.5G-SDI)
16-Channel, 24-Bit SDI Embedded Audio, 48 kHz Sample Rate, Synchronous | | HDMI Output | 1 x HDMI 2.0 Type A
30-/36-Bit/Pixel, RGB or YUV, 6 Gb/s Per Color Component
DCI/UHD 4K, 2K, HD, and SD with HFR Support Up to 60p (4:2:2), 10-/8-Bit
HDR10 Support: HDR Infoframe Metadata, Compatible with HDMI 2.0a/CTA-861.3
HLG Support: Compatible with HDMI 2.0b/CTA-861-G
8-Channel, 24-Bit HDMI Embedded Audio, 48 kHz Sample Rate, Synchronous | | Reference Input | 1 x Reference Input on HD-BNC (1 V Analog Color Black, 2 or 4 V Composite Sync, or 1 V HD Tri-Level Sync), Terminated into 75 Ohms when Genlock is Set to Reference-In | | Breakout Cable Connector | 4 x BNC for 8 Channels, 16-/24-Bit AES/EBU Audio Input, 48 kHz Sample Rate, Synchronous or Nonsynchronous, Internal Sample Rate Conversion
4 x BNC for 8 Channels, 16-/24-Bit AES/EBU Audio Output, 48 kHz Sample Rate, Synchronous or Nonsynchronous, Internal Sample Rate Conversion
2 x BNC for LTC Timecode Input and Output
1 x 9-Pin D-Connector for RS-422 | | Timecode | LTC Timecode I/O via 2 x BNC on Breakout Cable
LTC Timecode Input via 2-Pin Header on PCIe Card
LTC Timecode Input via HD-BNC at PCIe Bracket | | PCIe Interface | 8-Lane PCIe 3.0 | | Noise | < 50 dBA (A-Weighted at 3.2' / 1 m in Free Air) | | Power | 28 W Typical, 35 W Maximum | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Relative Humidity | 10-90% Non-Condensing | | Operating Altitude | < 10,000' / 3050 m | | Dimensions | 0.75 x 6.9 x 5.0" / 1.9 x 17.5 x 12.7 cm | | Weight | Card: 0.6 lb / 0.3 kg
Cable: 1.3 lb / 0.6 kg | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 10.0 x 6.5 x 5.0" |
