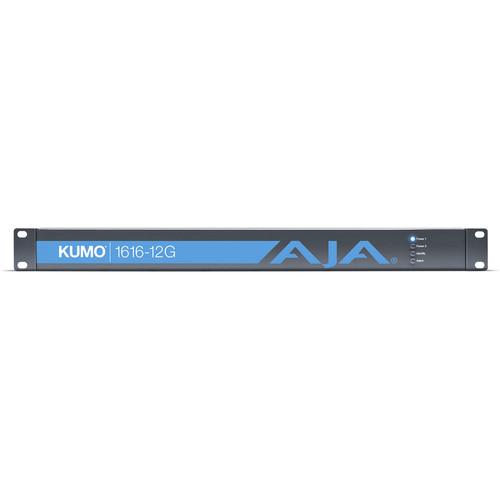

Product description The 1 RU KUMO 1616 12G-SDI Compact Router from AJA is a 16 x 16 video matrix router. It is a small, cost-effective solution for a range of broadcast, production, and post-production applications. This router features 16 SDI inputs and 16 SDI outputs. The KUMO 1616 12G has an embedded Linux operating system and internal Web server, which provide Web browser control via 10/100/1000 Ethernet with no need for additional software.
The mini-USB port provides easy configuration of the router IP address and simplifies network configurations. The unit's compact 1 RU size makes it suitable for edit suites, mobile sports trucks, corporate video installations, and live theatrical A/V rigs while its HTTP support gives you a wide range of powerful control options. This router can be integrated with existing infrastructure using the industry-standard grass valley native protocol over RS-422 or Ethernet. - Automatic EQ and re-clocking
- Supports all ancillary data, including embedded audio
- Up to eight Salvos can be configured and saved in each KUMO router
- Reference via BNC, looping, black burst or tri-level sync
- Embedded Linux OS with internal Web server for Web browser control
- HTTP control and monitoring via a web browser
- Industry-standard grass valley native protocol over RS-422 or Ethernet
- Redundant power, isolated power inputs
UPC: 812321031430 In the Box AJA KUMO 1616 Compact 12G-SDI Router (1 RU) AC Adapter AC Power Cord Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA KUMO 1616 Compact 12G-SDI Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA KUMO Specs | Compatible Control Panels | AJA KUMO CP - 1 RU X-Y Ethernet control panel
AJA KUMO CP2 - 2 RU X-Y Ethernet control panel | | Video Format | 270 Mb/s, 1.5 Gb/s, 3 Gb/s, 6 Gb/s, 12 Gb/s SDI
270 Mb/s DVB-ASI
Format agnostic, 125 Mb/s to 12 Gb/s | | Video Input Digital | 16 x 12G-SDI BNC ports | | Video Output Digital | 16 x 12G-SDI BNC ports, noninverting | | Cable Equalization | Belden 1694A:
12 Gb/s, up to 196.9' / 60 m
6 Gb/s, up to 393.7' / 120 m
3 Gb/s, up to 623.4' / 190 m
1.5 Gb/s, up to 639.8' / 195 m
270 Mb/s, up to 1329' / 405 m
Automatic operation | | Video Bandwidth | SMPTE 259, 292, 424, 2081, and 2082 | | Reclocking | 270 Mb/s, 1483 Gb/s, 1485 Gb/s, 2967 Gb/s, 2970 Gb/s, 5934 Gb/s, 5940 Gb/s, 11.868 Gb/s, 11.880 Gb/s - auto select | | Reference Input | 2 x BNC ports, external | | Network Interface | 1 x RJ45, 10/100/1000 Ethernet | | USB Interface | 1 x Mini-USB for IP configuration | | Serial Interface | 1 x 9-pin sub-D female, RS-422 port | | Power Consumption | 13 W typical | | Power Source | 10-14 VDC regulated | | Power Supply | 100-240 VAC, 50/60 Hz, universal input | | Dimensions | 17.4 x 1.54 x 1.75" / 441.96 x 39.12 x 44.45 mm | | Rackmount | 1 RU | | Weight | 1.4 lb. / 0.7 kg | | | | Package Weight | 3.745 lb | | Box Dimensions (LxWxH) | 23.4 x 6.1 x 3.2" |
