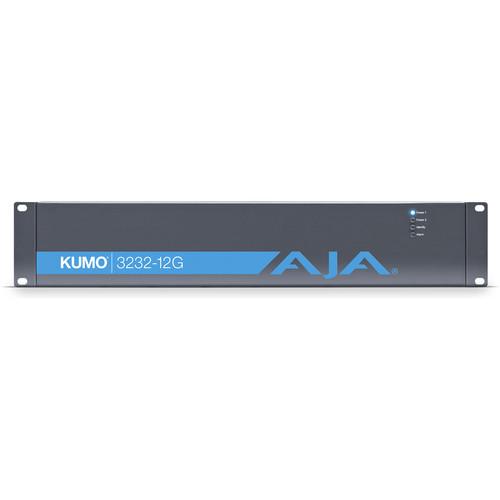

User Manual for AJA KUMO 3232-12G Compact 12G-SDI Router Click to enlarge the picture
Contents of the user manual for the AJA KUMO 3232-12G Compact 12G-SDI Router
- Product category: Routers & Switchers AJA
- Brand: AJA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AJA Routers & Switchers
|
User manual for the AJA KUMO 3232-12G Compact 12G-SDI Router contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AJA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AJA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AJA product will considerably shorten its lifespan!
|
Product description The KUMO 3232-12G Compact SDI Router from AJA provides signal control and supports full broadcast specifications over 12G-SDI with quality that exceeds SMPTE specifications. This compact 2 RU format router is designed for broadcast, production, or postproduction environments including mobile sports trucks, edit suites, corporate video installations, or live theatrical A/V rigs.
This router features 32 12G-SDI inputs and outputs and has a Linux embedded operating system. It is network-ready and supports HTTP control and monitoring via a web browser, without the need for any additional software. It can be integrated with existing infrastructure utilizing the industry-standard Grass Valley Native Protocol over RS-422 or Ethernet. Ethernet network connectivity also allows you to control this router from any web browser on a network-connected device. - Powerful Signal Control
- The cross-point routing matrix maps any input to any number of outputs without the need for additional patch panels or distribution amplifiers. It can be configured for ganged dual and quad port routing, allowing users to group together multiple inputs and outputs for dual link, 4K, and UltraHD workflows.
- Salvo Simplicity
- The Salvos support simplifies switching operations by recalling multiple sources to specific destinations. Eight Salvos can be configured and stored in this router and can be recalled via the Web UI, GVG Native Protocol over Ethernet, RS-232, and/or the KUMO CP2 Salvos buttons.
- Simple Installation and Configuration
- With an embedded Linux operating system, this router is network-ready and supports HTTP control and monitoring via a web browser, without the need for any additional software. The auto-detect Bonjour/Zeroconf protocols mean that network configuration is automatic. By connecting it to a network or computer the system will self-configure, and be ready for use. Alternatively, standard network configuration allows access to the router via its default IP address.
- KUMO Control Panel
- The KUMO CP2 and KUMO CP are optional control panels that can be used in standalone or network configurations. They enable full control from any location without the need for a computer by connecting via Ethernet to the same network as the KUMO routers. Up to four KUMO routers can be controlled from a single control panel. The KUMO CP2 offers direct access to all 32 inputs and 32 outputs.
In the Box AJA KUMO 3232-12G Compact 12G-SDI Router (2 RU) Power Supply Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA KUMO 3232-12G Compact 12G-SDI Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA KUMO Specs | Video Format | 270 Mb/s, 1.5 Gb/s, 3 Gb/s, 6 Gb/s, 12 Gb/s SDI
270 Mb/s DVB-ASI
Format agnostic, 125 Mb/s - 12 Gb/s | | Video Input Digital | 32 x 12G-SDI, BNC
SMPTE-259/292/424/2081/2082 | | Video Output Digital | 32 x 12G-SDI, BNC non-inverting
SMPTE-259/292/424/2081/2082 | | Ancillary Data | Passes all SDI embedded ancillary data including audio | | Cable Equalization | Belden 1694A:
12 Gb/s, up to 196.9' / 60 m
6 Gb/s, up to 393.7' / 120 m
3 Gb/s, up to 623.4' / 190 m
1.5 Gb/s, up to 639.8' / 195 m
270 Mb/s, up to 1328.7' / 405 m
Automatic operation | | Reclocking | 270 Mb/s, 1.483 Gb/s, 1,485 Gb/s, 2.967 Gb/s, 2.970 Gb/s, 5.934 Gb/s, 5.940 Gb/s, 11.868 Gb/s, 11.880 Gb/s - auto select
All other rates are passed through and not reclocked | | Switching | Single, dual, and quad link modes
Switches in vertical blanking per SMPTE RP-168 | | Compatible Control Panels | AJA KUMO CP - 1 RU X-Y Ethernet control panel
AJA KUMO CP2 - 2 RU X-Y Ethernet control panel | | Reference Input | 2 x BNC, external
Looping, non-terminating
Blackburst or tri-level sync | | Network Interface | 1 x RJ45, 10/100/1000 Ethernet
Supports AJA KUMO Ethernet control panels, direct connect or networked
Grass Valley Native Protocol
Embedded web server for remote control | | USB Interface | 1 x mini-USB for IP configuration | | Machine Control | 1 x DB-9 female RS-422, grass valley native protocol
9-pin D-connector pinout: 1 GND, 2 TX-, 3 RX+, 4 GND, 5 No Connection, 6 GND, 7 TX+, 8 RX-, 9 GND, Shell GND | | Power | 10-14 VDC regulated, 20 W typical
AC Adapter: 100-240 VAC, 50/60 Hz, universal input | | Environment | Safe Operating Temperature: 32 to 104°F / 0 to 40°C
Safe Storage Temperature (Power OFF): -40 to 140°F / -40 to 60°C
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: up to 3000 m / 10,000' | | Rack Space | 2 RU | | Dimensions | 17.4 x 1.5 x 3.5" / 441.96 x 38.1 x 88.9 mm | | Weight | 4.6 lb / 2.1 kg |
